Getting Connected
15

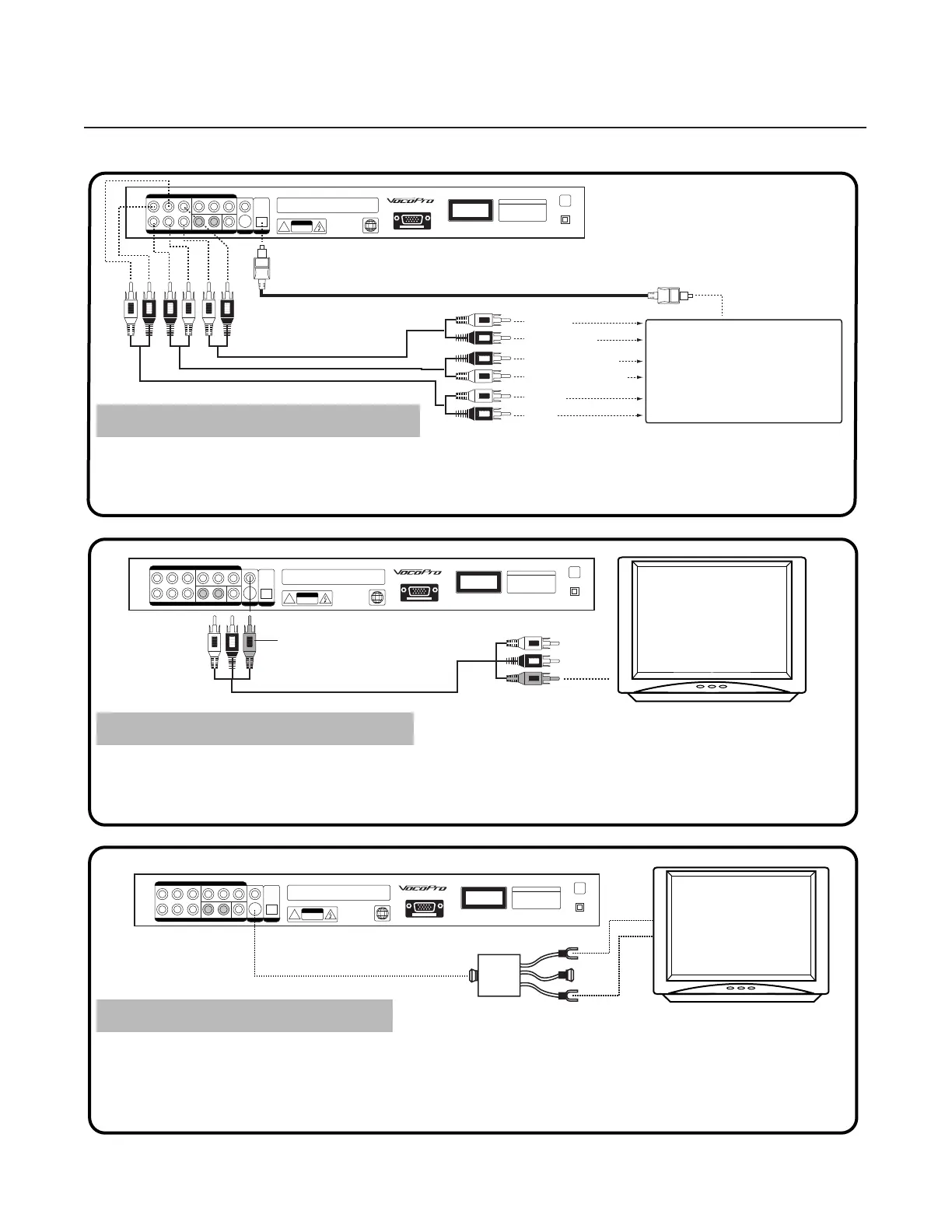

Connecting both Analog and Digital Audio
To do this you will need a Dolby Digital DTS/AC-3 receiver with analog audio inputs. Refer to the above
instructions for each connection (digital and analog).
Amplifier
Center
Subwoofer
Surround Left
Surround Right
Right
Left
(Cable not included)Digital Connection
Analog Connection
TV
TV
Yellow Plug
Connecting to a TV with an RCA Connection
Using either the yellow-ended RCA plug from the included RCA patch cable or a separate RCA patch
cable, connect one end to the RCA VIDEO OUTPUT jack on the DVG-380K and connect the other end to
the VIDEO INPUT jack on our TV or monitor device.
Connecting to a TV with an RF Modulator
If your TV has only a RF-style Jack, such as Antenna In or 75 ohm, and no RCA video input jack, you can
connect video with a RF modulator (not supplied). Ask your dealer for details on RF modulator availability
and compatibility. Follow the instructions provided with the RF modulator to connect the DVG-380K to
your TV. (General model shown as an example).
1
!
WARNING
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
5.1CH AUDIO OUT COMPONENT/PROGRESSIVE
FL FR SW
SL SR CENTER
Y Cb/Pb Cr/Pr
L
R
COAXIAL VIDEO OPTICALAUDIO OUT
S VIDEO
VIDEO
