11 Climate Related Curves

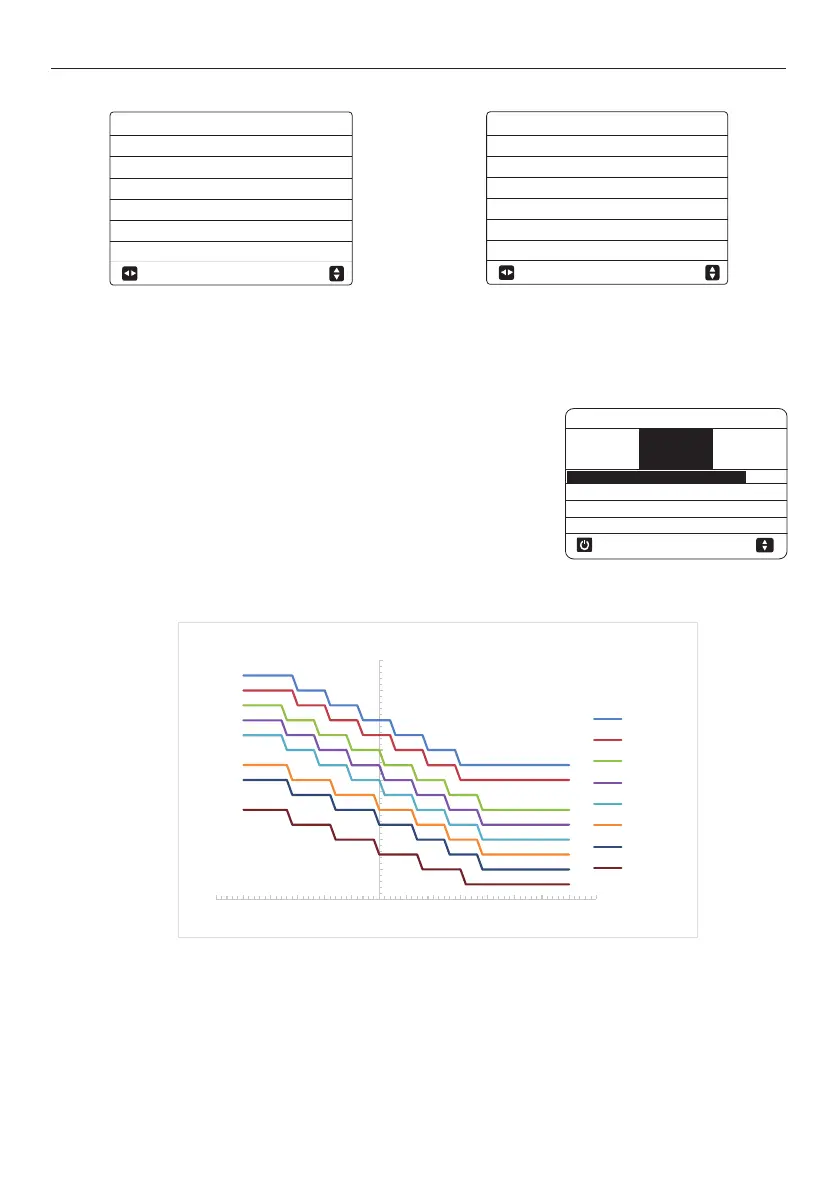

The climate related curves can be selected in the user interface,MENU > PRESET TEMPERATURE > WEATHER TEMP. SET.

In cooling/mode mode, eight curves which are already set in the user interface

can be selected. Once the curve is selected, the leaving water set temperature

(T1s) is determined by the outdoor temperature(T4).

ECO mode is only suitable for heating mode. It has lower water temperature

setting inside the program, which is more energy saving.

The relationship between outdoor ambient temperature (T4) and leaving water

set temperature (T1s) is described as in Figure 3-9.2, Figure 3-9.3, Figure 3-9.4

and Figure 3-9.5.

Figure 3-9.2: Low temperature curves for heating mode

1

Leaving water set temperature (⁰C )

Outdoor ambient temperature (⁰C )

Notes:

1.

It only has the curves of the low temperature setting for heating, if the low temperature is set for heating.

2. Curve 4 is default in low temperature heating mode and curve 6 is default in ECO mode.

OK

Tbt2 BUFFERTANK_LOW TEMP. XX ć

OPERATION PARAMETER #00

Tbt1 BUFFERTANK_UP TEMP. XX ć

Tsolar

XX ć

IDU SOFTWARE XX-XX-XXXXXXX

5/9

ADDRESS

OK

T4 OUTDOOR AIR TEMP XX ć

OPERATION PARAMETER #00

T3 OUTDOOR EXCHANGE TEMP. XX ć

TF MODULE TEMP.

XX ć

P1 COMP PRESSURE XX Kpa

9/9

ADDRESS

ODU SOFTWARE XX-XX-XXXXXXX

HMI SOFTWARE XX-XX-XXXXXXX

23

25

27

29

31

33

35

37

39

-30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40

T1S(

Ԩ

)

T4(

Ԩ

)

Curve 1

Curve 2

Curve 3

Curve 4

Curve 5

Curve 6

Curve 7

Curve 8

Figure 3-9.1: WEATHER TEMP. SET menu

OFF

ZONE1 C-MODE LOW TEMP

ZONE1 H-MODE LOW TEMP

ZONE2 C-MODE LOW TEMP

ZONE2 H-MODE LOW

TEMP

PRE SET TEMPERATURE

ON/OFF

WEATHER

TEMPSET

ECO

MODE

PRESET

TEMP
