22
6 Quick programming
Procedure for facilitated gate travel programming:

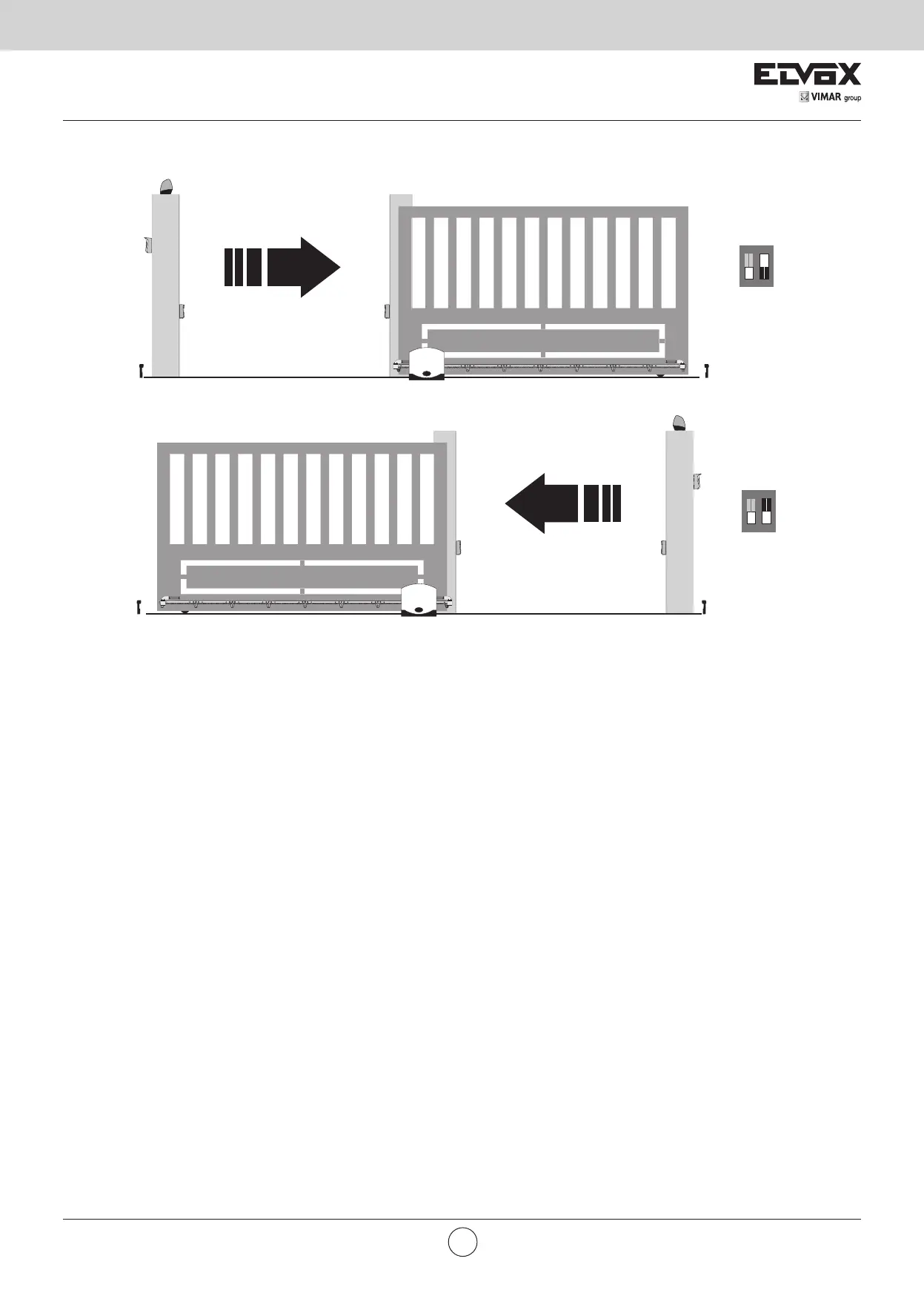

N.B. Before starting programming, check the dip switch 2-2 (OFF opening to left, ON opening to right)
- Move the gate to approximately 1 metre from closing.
- Keep button P3 pressed for 2 seconds (the red DL12 LED starts flashing slowly), release button P3.
- Press the AP/CH button, the gate continues until the closing limit switch trips, to then start again with opening at reduced speed.
- On reaching the magnetic limit switches when opening, the gate starts again with closing until the limit switch trips.
- The DL12 LED turns off, the control unit has saved the travel of the gate, aligning with the default parameters, with a distance for slowing down of
50 cm when opening and 75 cm when closing, before the magnetic limit switches.
If, during programming, the operations are reversed, do not change the wiring of the electric motor (terminal 1 and 2) and of the limit switches
(terminal 17-19), but check the dip switch 2-2 (OFF opening the gate to the left, ON opening the gate to the right).
N.B.: If the wires of the electric motor power supply are reversed, with the opening command the control unit signals the error via the DL12 LED
blinking and the flashing light (see error message table).
Procedure for saving a remote control:
- Press the P2 button for approximately 2 seconds, the DL12 LED with a green light flashes slowly, release button P2.
- The control panel is waiting to learn a remote control (timeout 20 seconds).
- Press the button on the remote control to be saved, the DL12 LED
illuminates with a steady green light for approximately 2 seconds, to then
switch off.
Repeat the same procedure to save other remote controls. The maximum capacity is 200 remote controls.
On reaching the maximum capacity (200 radio controls) being saved on the remote control (the green DL12 LED flashes), on pressing the button
of the new transmitter to be saved, the green DL12 LED makes 3 quick flashes.
N.B.: The first saved remote control configures the control panel to accept only remote controls with a rolling code or only remote controls with a
fixed 12-bit code.
APERTURA
APERTURA
OPENING
OPENING
ON
1
2
ON
1 2
ON
1 2
ON
1
2
EN
