3 Risk assessment

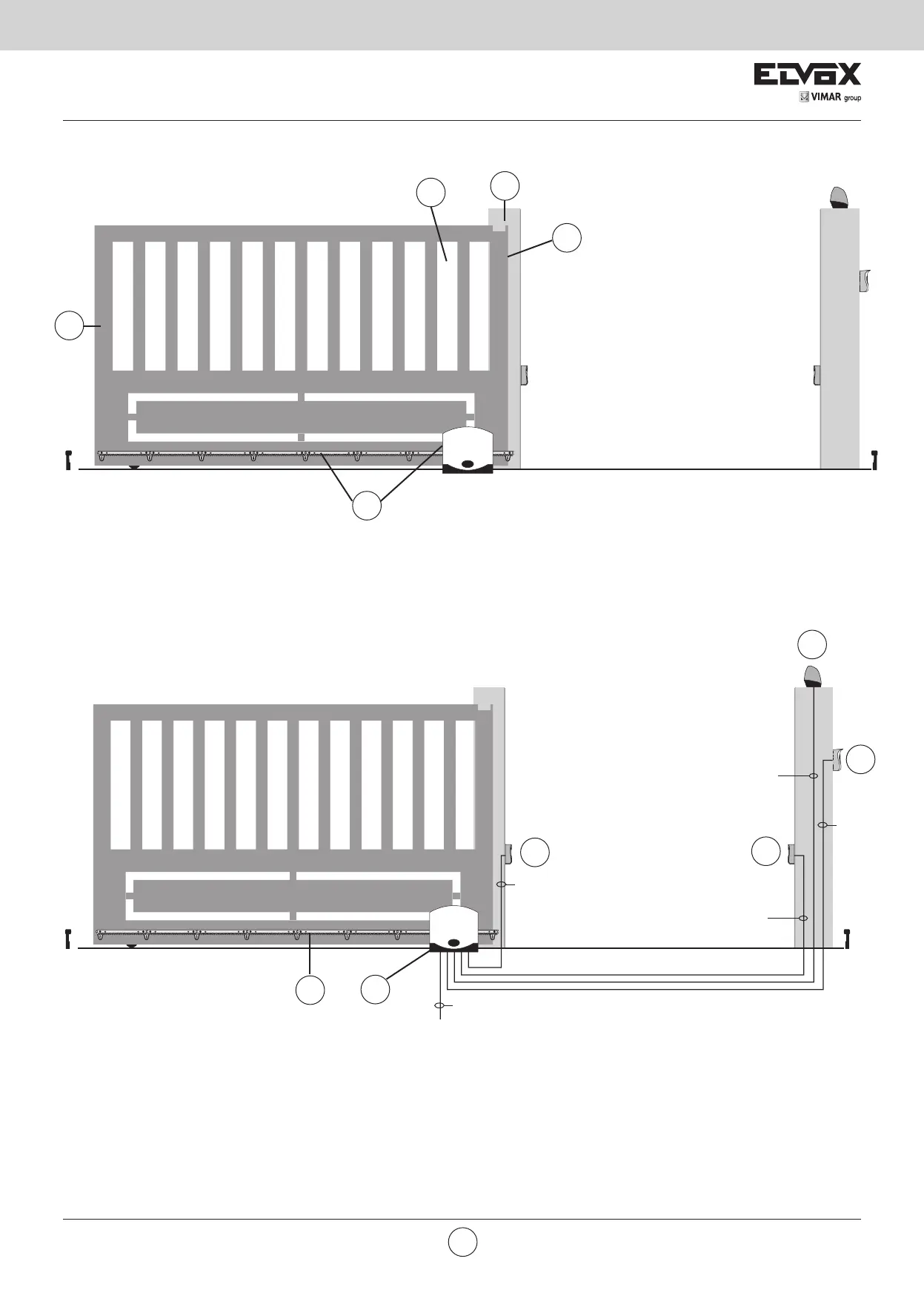

Before starting to install the automatic gate system it is necessary to evaluate all possible points of danger during the movement of the gate. Fig. 2
highlights some of the danger points of the sliding gate.
Before starting installation you need to check that the gate slides properly, that there are secure mechanical stops and check the gate support system.
4 Electrical wiring harnesses:
230 V~
C
B
A
A
A - Crushing
B - Conveying
C - Shearing
B
1
1
3
2
3 x 0.5
mm
2
2 x 1mm
2
4 x 0.5 mm
2
2 x 0.5 mm
2
3 x 1.5 mm
2
Key:
1 - Photocells
2 - Selector switch
3 - Flashing light
4 - Gear motor
5 - Rack
5
4
Fig. 2
Fig. 3
230 V~
120 V~
