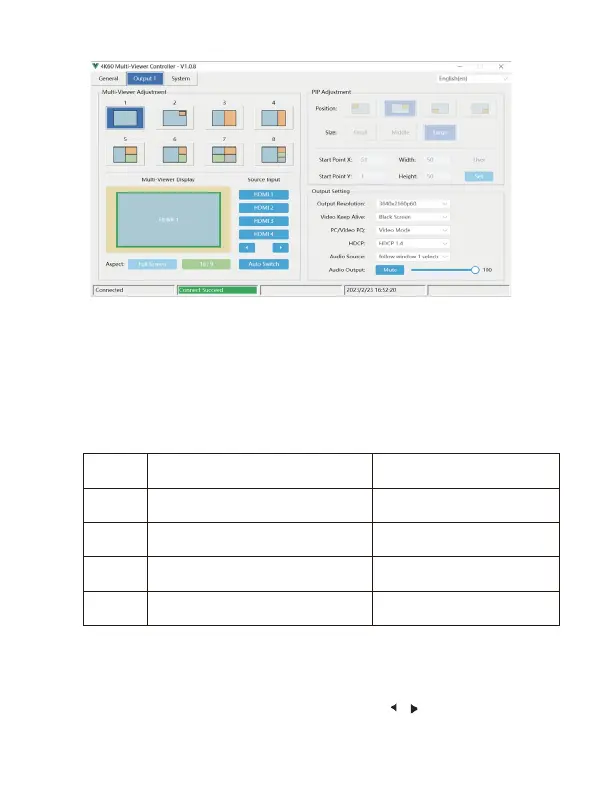

■ Output Page
You can do the following operations on the Output page:
① Multi-View Adjustment: Click to select the desired screen display
mode. There are eight modes available: Single-PIP-PBP(1)-PBP(2)-
Triple(1)- Triple(2)-Quad(1)-Quad(2).
② PIP Adjustment: In the PIP mode, you can switch the location and
size of the PIP and set the user-defined PIP, as shown in the following
table.
Size
Relative Position
(Starting Position)
Height and Width of the
Inner Frame
Small
Start Point X: 71
Start Point Y: 71
Width: 30
Height: 30
Middle
Start Point X: 61
Start Point Y: 61
Width: 40
Height: 40
Large
Start Point X: 51
Start Point Y: 51
Width: 50
Height: 50
User
Start Point X: 1-100
Start Point Y: 1-100
Width: 1-100
Height: 1-100
③ Multi-Viewer Display: Display the input and output.
④ Source Input: Select the input signal source. You should select the
window in “Multi-Viewer Display” firstly, and then click “HDMI 1/2/3/4” in
“Source Input” to select a signal source, or click / to select the la/
next signal source.
