5 Preparing the product for
use
Any change that is not expressly approved
by the manufacturer will invalidate the
guarantee.
5.1 Unpacking
When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
Keep the packaging in case you need to send the
product for repairs.
5.2 Contents
Check the contents to make sure they correspond
with the list of materials as below:
Housing
Housing equipment
Instructions manual
Desiccant bag
5.3 Safely disposing of packaging
material
The packaging material can all be recycled. The
installer technician will be responsible for separating
the material for disposal, and in any case for
compliance with the legislation in force where the
device is to be used.
When returning a faulty product we recommend
using the original packaging for shipping.
5.4 Preparatory work before
installation
5.4.1 Attaching the bracket
The product must be fastened with suitable
equipment. The fastening means must
guarantee the mechanical seal when a force
equal to at least 4 times the weight of the
device is applied.
6 Assembly
6.1 How to open the housing
Loosen the 2 screws on the side, turn the cover and
the upper half of the body about the opening hinge
axis.

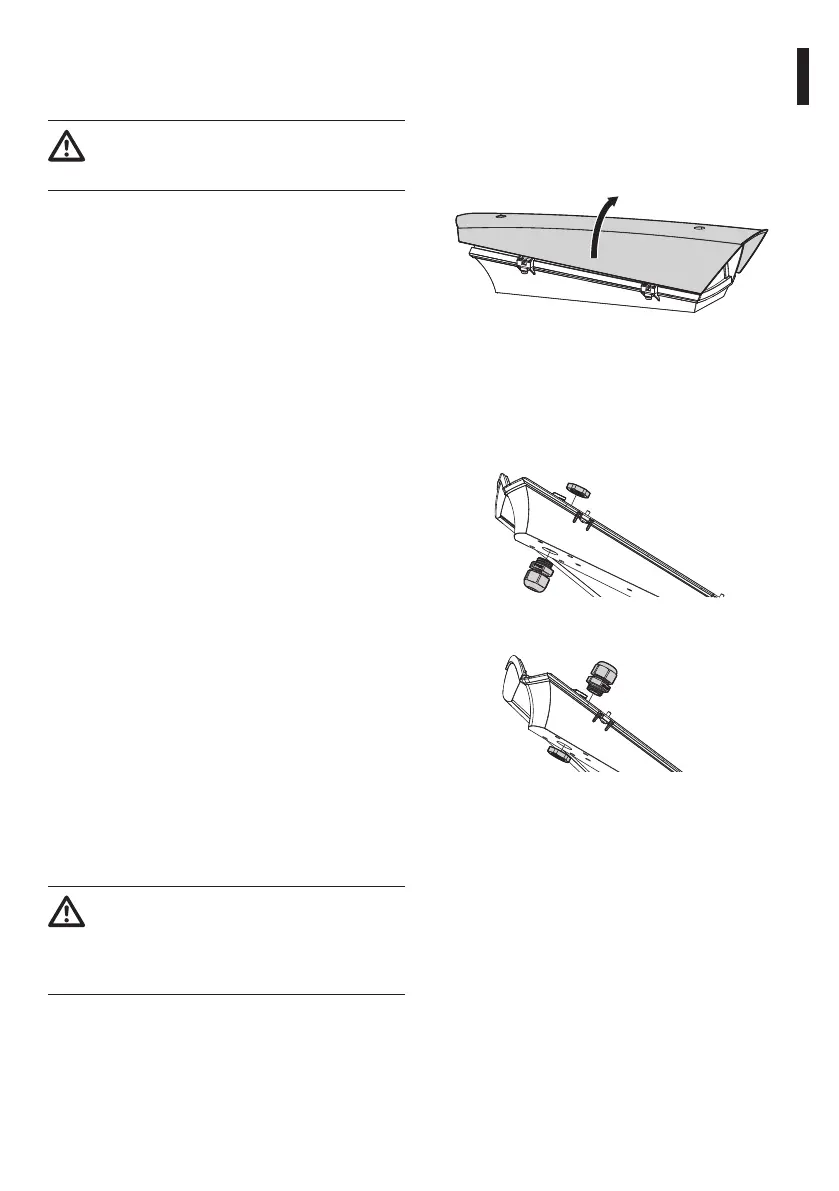

Fig. 1
6.2 Cable glands assembly
The cable glands are suitable for cables with a
diameter between 5mm and 10 mm.
Fix the cable glands as shown in the figure.
Fig. 2 Support with external cable passage..
Fig. 3 Support with internal cable passage..
