- 10 -

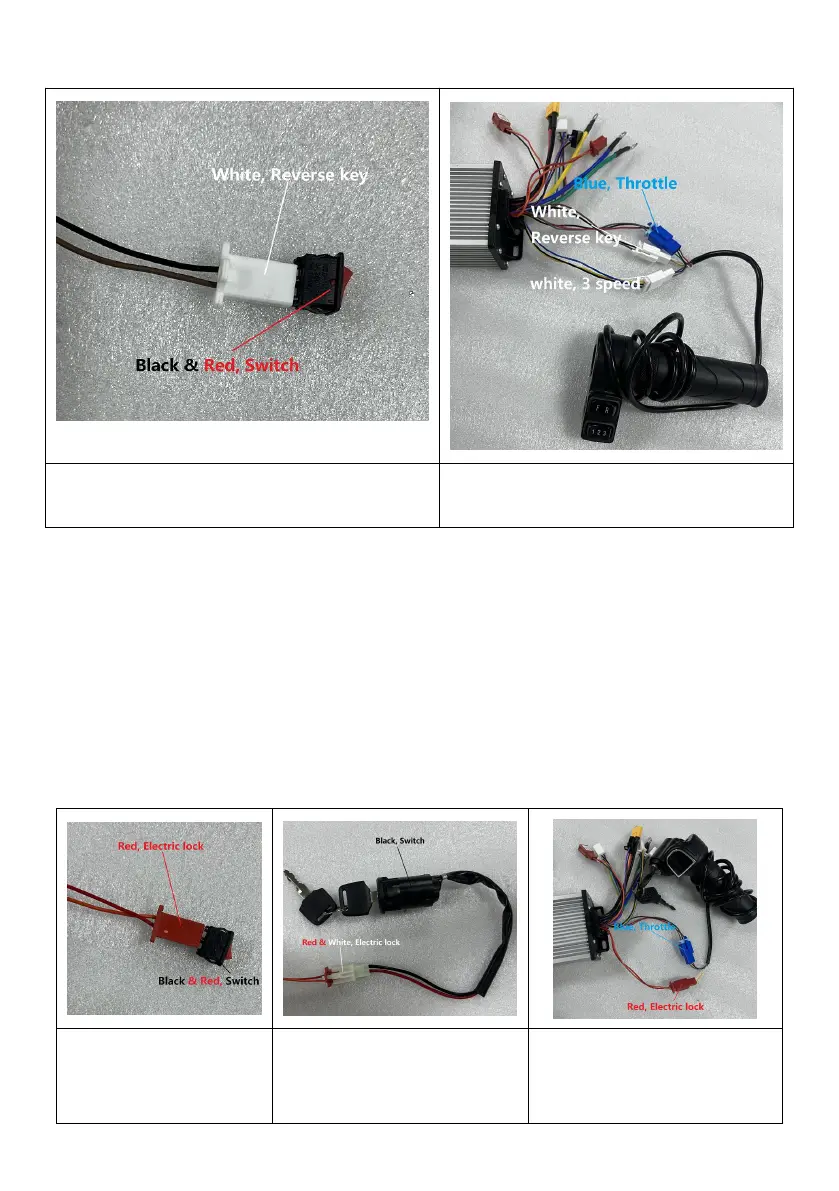

Figure 7 Reverse cable connection
1. Two-pin switch controls forward and
backward
2. Handle with reverse function
3.4 Electric door lock
Electric door lock: 1. Red: p+ 2. Orange: VCC
The electric door lock must be kept normally open, or the red and orange
lines must be connected by a short circuit.
Electric door lock wiring has the following types, electric door lock wiring is
shown in Figure 8.
Fig.8 Wiring of electric door lock
Two-pin switch
controls the electric
door lock
Electric door lock white
plug-in and red plug-in
connection
With electric door lock
handle
