- 9 -
The handle wiring is shown in Figure 5.
Handle function
Electric quantity display+
electric door lock handle
With three speed +
reverse forward handle
3.2 Three-speed switch
Three speed switch: default speed 2, short circuit of blue and black lines is 3
speed, short circuit of yellow and black lines is 1 speed.

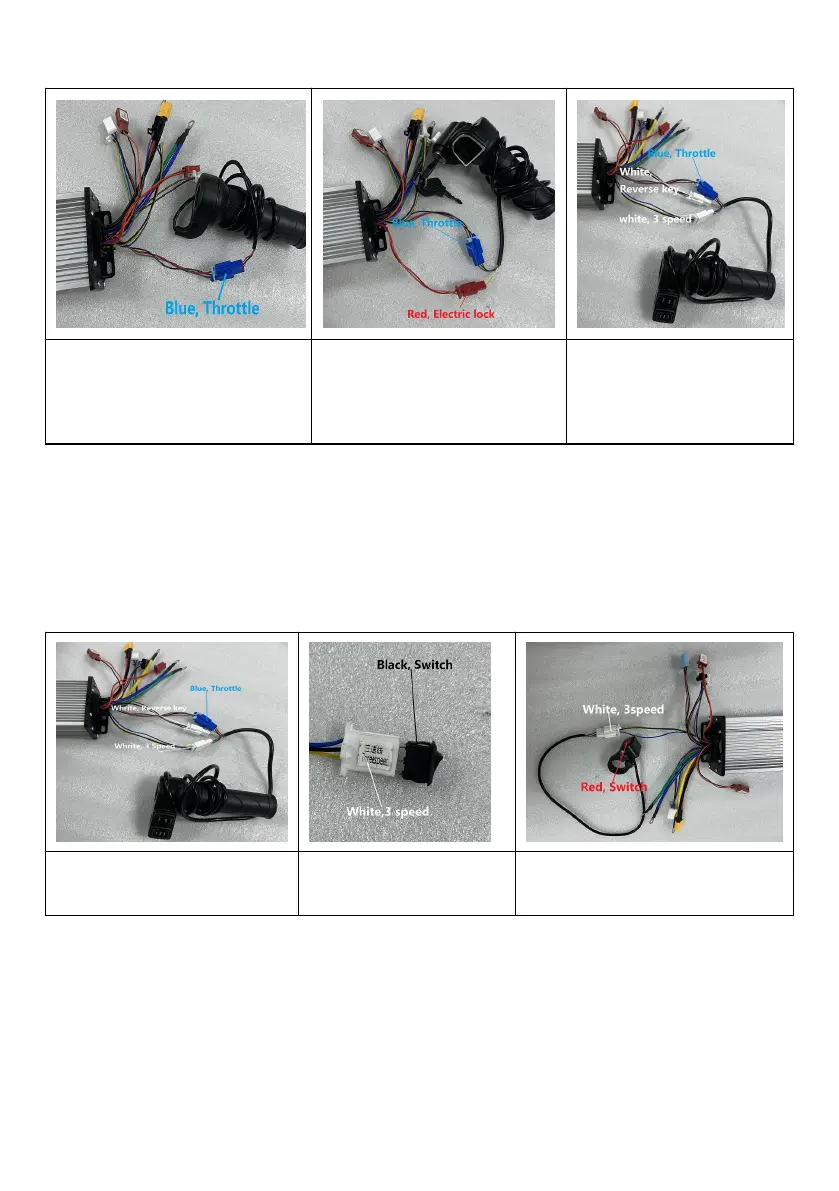

There are several ways to connect the three speed switch, as shown in Figure 6.
Fig.6 Three-speed switch wiring
1. Comes with 3 speed
function
2. 3 foot switch
controls 3 speed
3 speed switch controls
3.
3.3 Reverse
Reverse: Switch brown and black, reverse speed is 100%. There are the following
types of reverse cables. Figure 7 shows the reverse cables.
