- 18 -

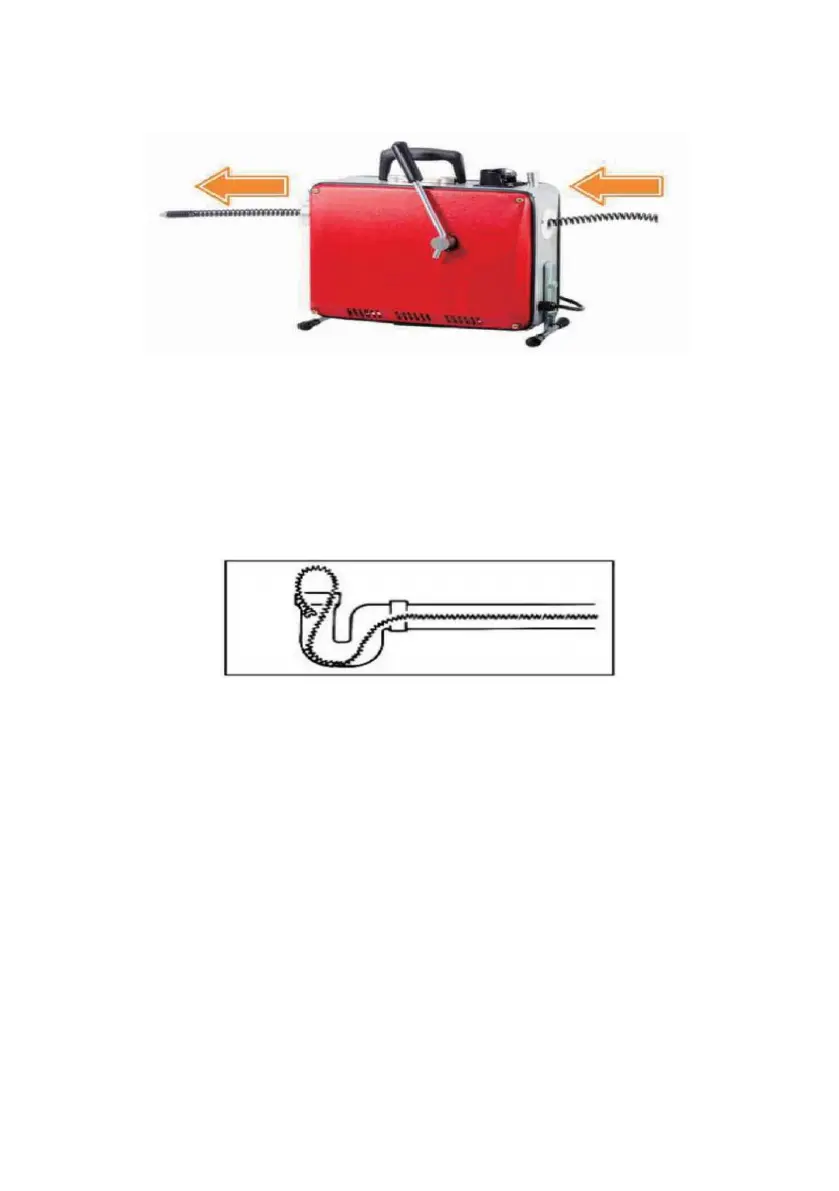

1. Extend the coil (D) and feed the cable into the machine's entry directly
until it comes out of the exit as shown.
2. To connect the spring:
(1) When the spring is completely pulled out of the body and exposed the end, put
the machine switch knob in the OFF position.
(2) The spring in the pipe is circled into an arc according to the following diagram
and fixed in the pipe mouth to prevent the spring in the pipe from sliding into the
pipe.
(3) After the spring in the pipe is fixed, remove a steel cable from the spring basket.
One end of the spring head is inserted from the front end of the machine and keep
a foot of spring outside of the machine.
(4) Connect with the steel cables in the pipe.
3. Exit the spring from the pipe:
(1) Place the machine switch in the CW position and press the clutch handle to
turn the spring.
(2) Gently pull the spring out of the pipe with your gloves on.
(3) When the pulled spring forms a ring, release the clutch and push the spring into
the machine;
(4) When the exit spring is exposed outside the machine, release the clutch, put
the switch knob in the OFF gear, remove the spring, so as not to damage the
spring exposed outside the machine and damage or hurt the operator;
(5) When the tool exits the pipe with the cable, immediately release the clutch
