- 12 -

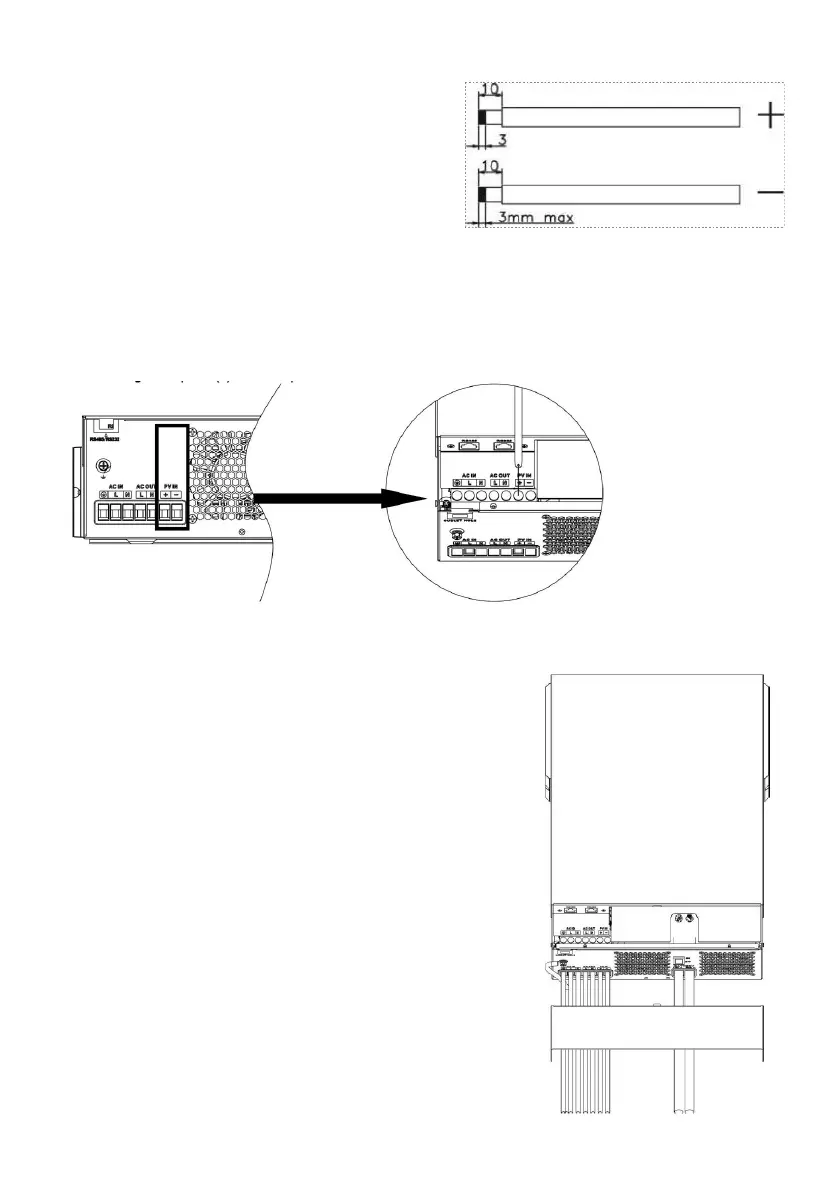

PV Module Wire Connection:
Please follow below steps to implement
PV module connection:
Remove insulation sleeve 10 mm for
positive and negative conductors.
Check correct polarity of connection
cable from PV modules and PV input connectors. Then, connect
positive pole (+) of connection cable to positive pole (+) of PV input
connector. Connect negative pole (-) of connection cable to negative
pole (-) of PV input connector.
Make sure the wires are securely connected.
7.Final Assembly
After connecting all wirings, please put bottom
cover back by screwing two screws as shown
below.
