- 31 -
Step 5 - Clamp the second workpiece (A) Fig. S11 in the lower clamp
(vertical mounting position) on the right side of the jig flush
against both the template (B) and against the right offset
guide (C) with the outside surface facing away from the jig.
Step 6 - If the first and second workpieces are of different
thicknesses, reset the router bit depth using the “tails/ box”
bit depth guide.

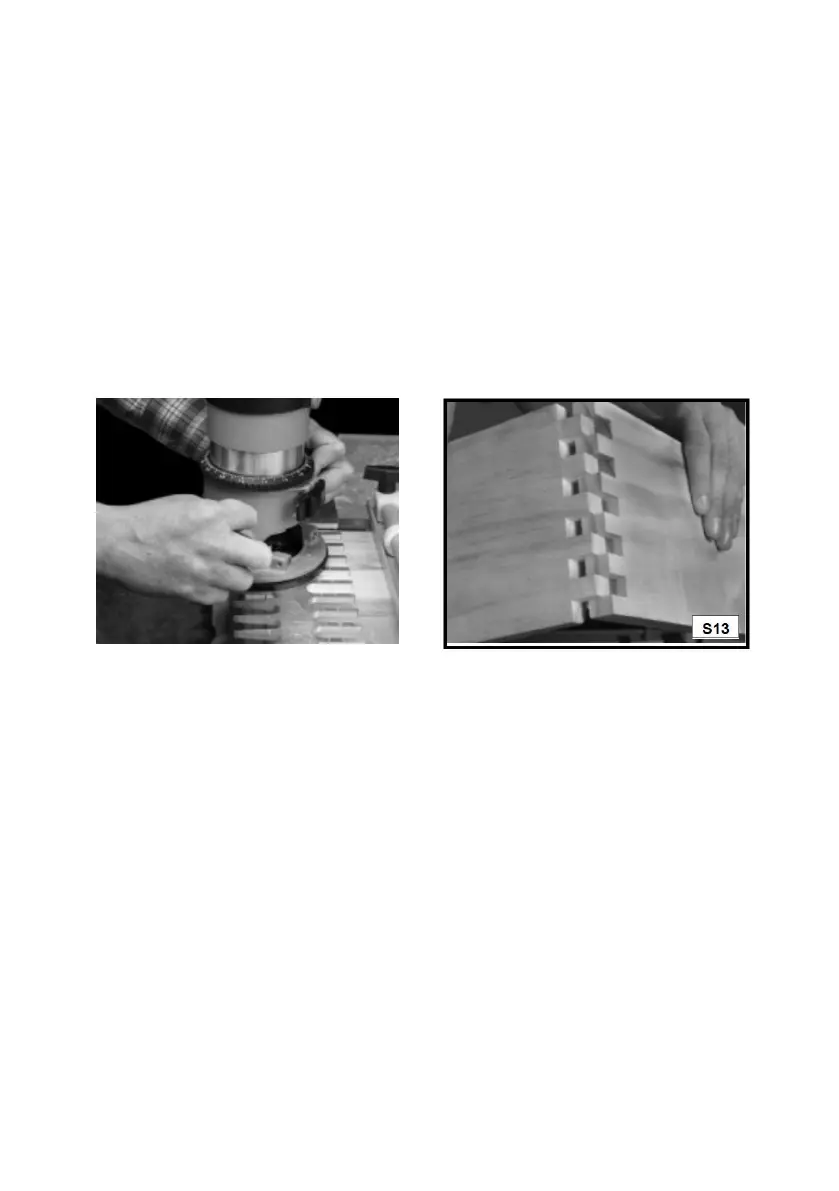

Step 7 - Rout between the fingers of the jig with the templet guide
against the left side of the fingers, both in and out. This light
pressure toward the left will help to prevent loose joints (Fig.
S12).
Step 8 -
Remove the second workpiece and assemble the joint (Fig.
S13)
NOTE:
The fit (tightness) of the box joint cannot be adjusted.
SLIDING DOVETAILS
Sliding dovetails are used primarily in the construction of cabinets,
entertainment centers and shelving. The 28104 series jigs have three
preset depths for dadoes ( 1/4", 3/8" and 1/2"), but you can manually
set your router bit depth to any setting.
NOTE: Be certain that the router bit will not cut into the base or offset
guides during this cut.Everything is provided for this cut in
28104-3 jigs.
