- 25 -

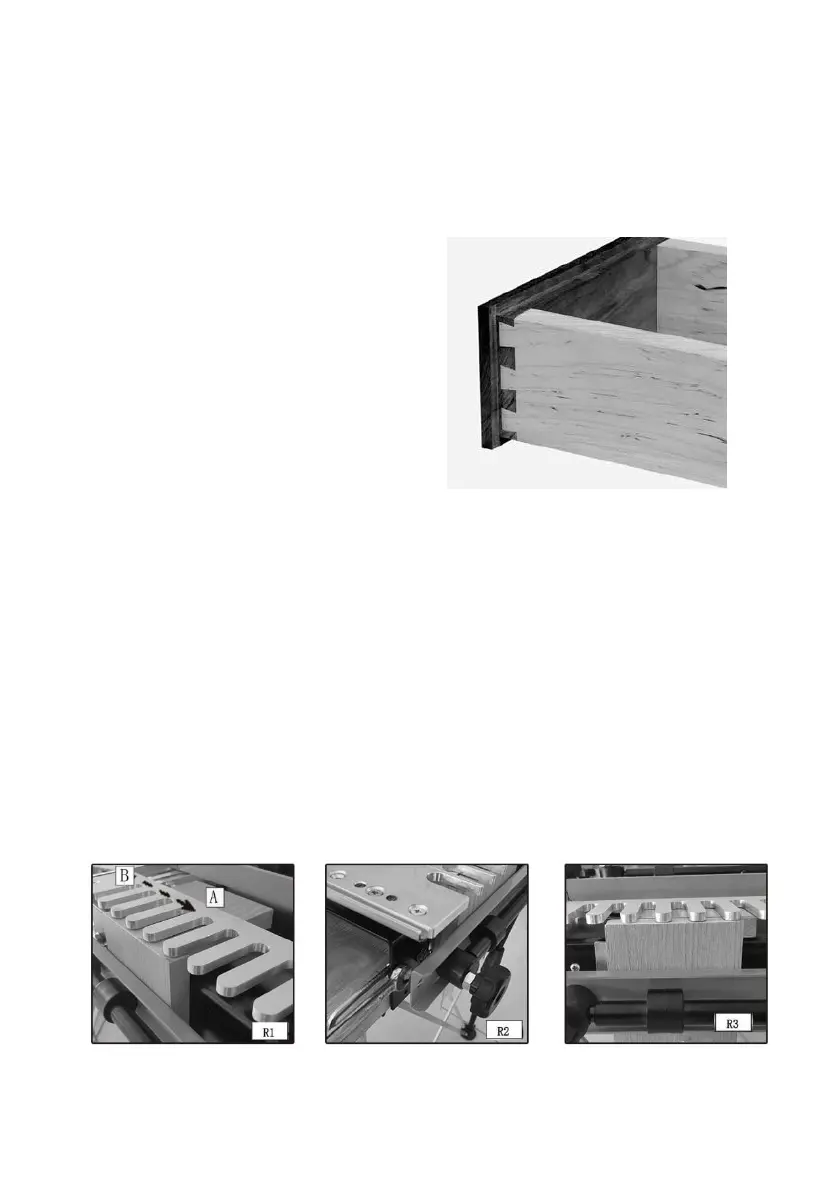

RABBETED HALF-BLIND DOVETAILS
To produce rabbeted half-blind dovetails (drawer front), cut the pins
for a half-blind joint after the drawer front has been rabbeted. The
depth of the rabbet must be deeper than the half-blind router bit depth
guide.
NOTE:
Cut the tails first.
For miniature half-blinds, use the
28104-3 accessory kit.
Use scrap wood until you are
comfortable with the jig.
ITEMS NEEDED
● Half-blind Dovetail Template
● 1/4*15.4*13 Dovetail Bit
●
3/4" O.D. Template Guide,
●
Template Guide Lock Nut,
CUTTING THE TAILS
Step 1 - Clamp a scrap board (A) Fig. R1 in the upper clamp
(horizontal mounting position). Use scrap board that is thick
enough to prevent the bit from contacting the base (1/2" will
work). Secure the template (B) on top of the scrap board
(Fig. R1). Ensure the flatness by holding one hand on the
board and using the other to tighten the template knobs.
Step 2 -
Move the left offset guide all the way to the left (Fig. R2).
Step 3 - Position and clamp the tail board in the lower clamp (vertical
mounting position) with the outside surface against the jig
base (Fig. R3).
