CUTTING THE PINS
NOTE: If the pin board is not the same thickness as the tail board,
replace the scrap piece in the horizontal clamp
with a scrap board the same thickness as your tail board.
Step 1- Remove the template and rotate it 180 degrees . Clamp the
pin board in the lower clamp, flush against the left offset
guide with the outside of the board facing away from the jig.

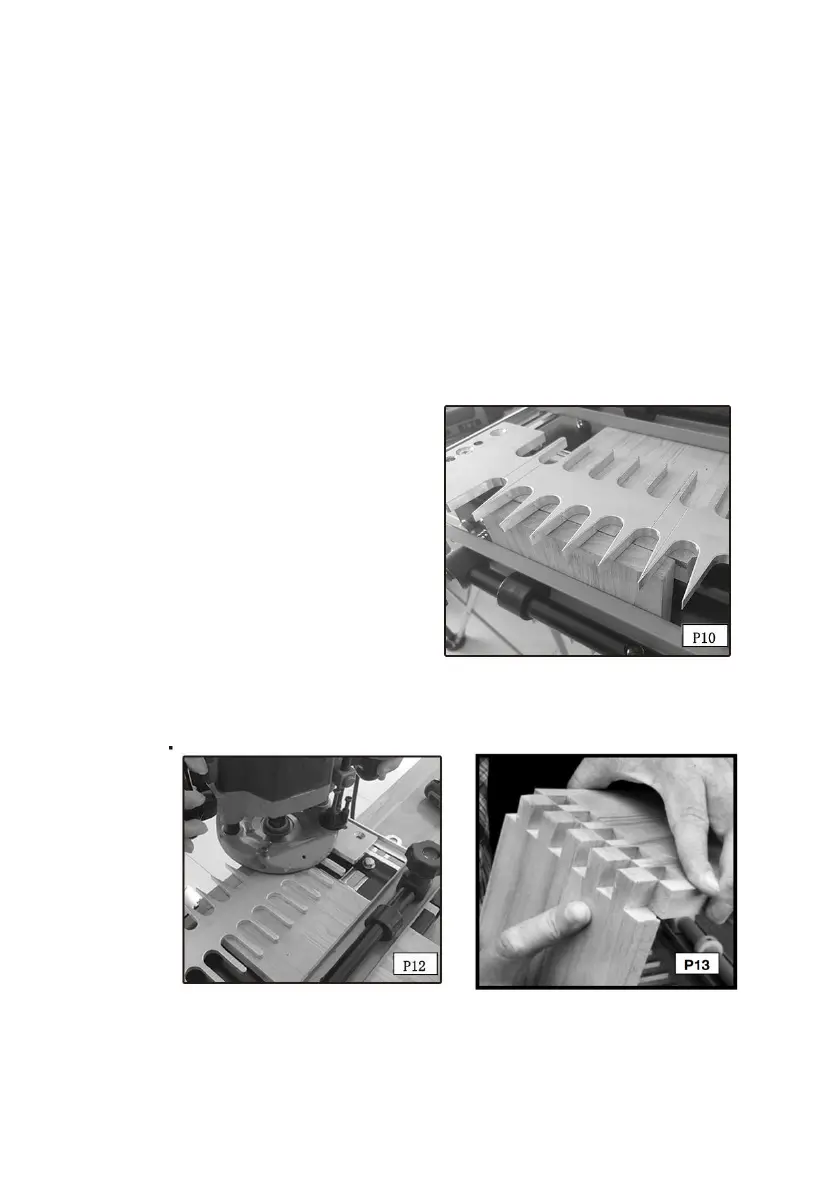

Step 2 - Align the “pins” line (see the arrows) Fig. P10 on the template
with the line formed where the scrap board and pin board
meet and tighten the template in place.
Step 3-
Mount the straight bit and the 5/8" templet guide on the router
and set the router bit depth (Fig. P11).
Step 5-
Rout between the fingers of the template (Fig. P12).
Step 6 -
Remove the pin board and check the fit with the tailboard (Fig.
P13)
THROUGH DOVETAIL TROUBLESHOOTING
For joints that are too loose, move the template toward you slightly.
For joints that are too tight, move the template away from you slightly.
