- 11 -
CLAMPS

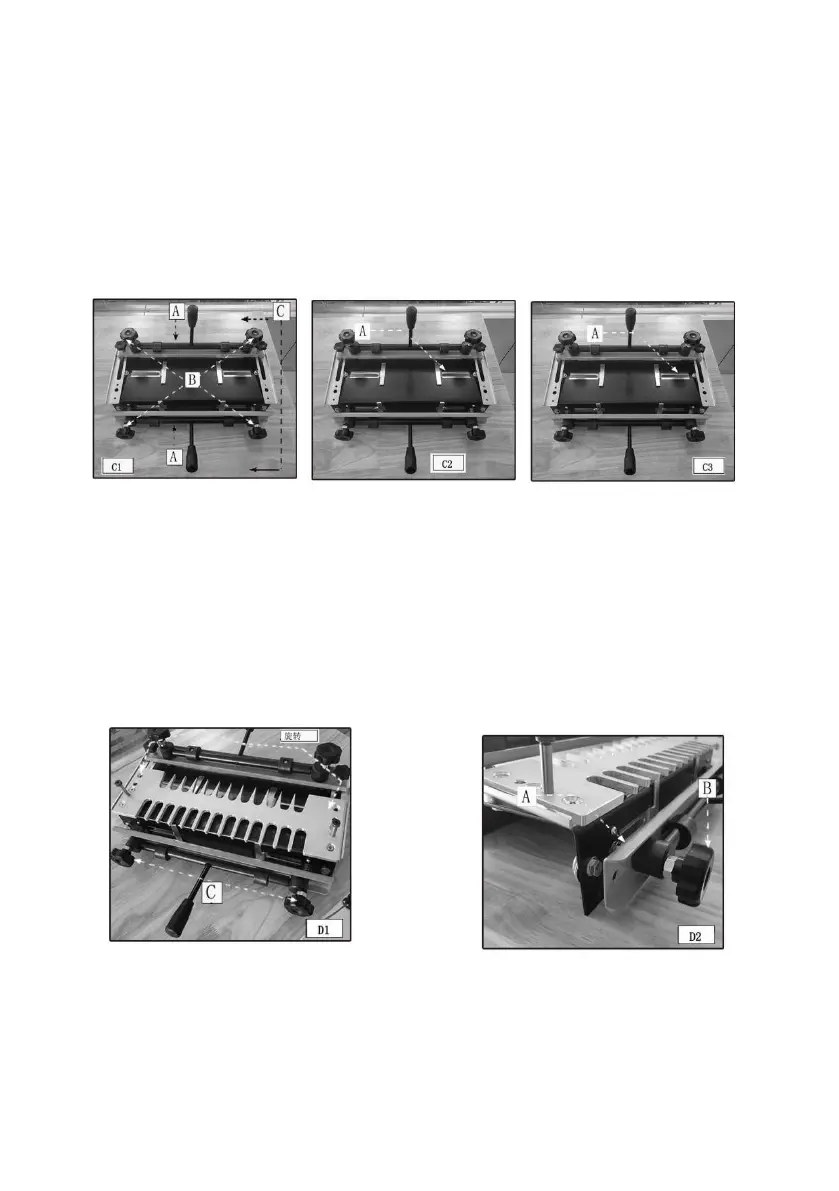

The 28104 series jigs are equipped with two cam-action
clamps (A) Fig. C1 with knobs (B)
To adjust for workpiece thickness, and levers (C) for quick
clamping and releasing of workpieces.
NOTE: Use a scrap board (A) Fig. C2 to prevent misalignment (A) Fig.
C3.
TEMPLATE MOUNTING
You can mount the templates in two positions on the jig(s) which
allows the production of multiple types of joints with each template. To
reverse a template, loosen the template knobs (C) Fig. D1, remove the
template (B) from the base, rotate it 180 degrees horizontally, replace
it on the base, and tighten the template knobs.
