- 3 -
[Method of application]

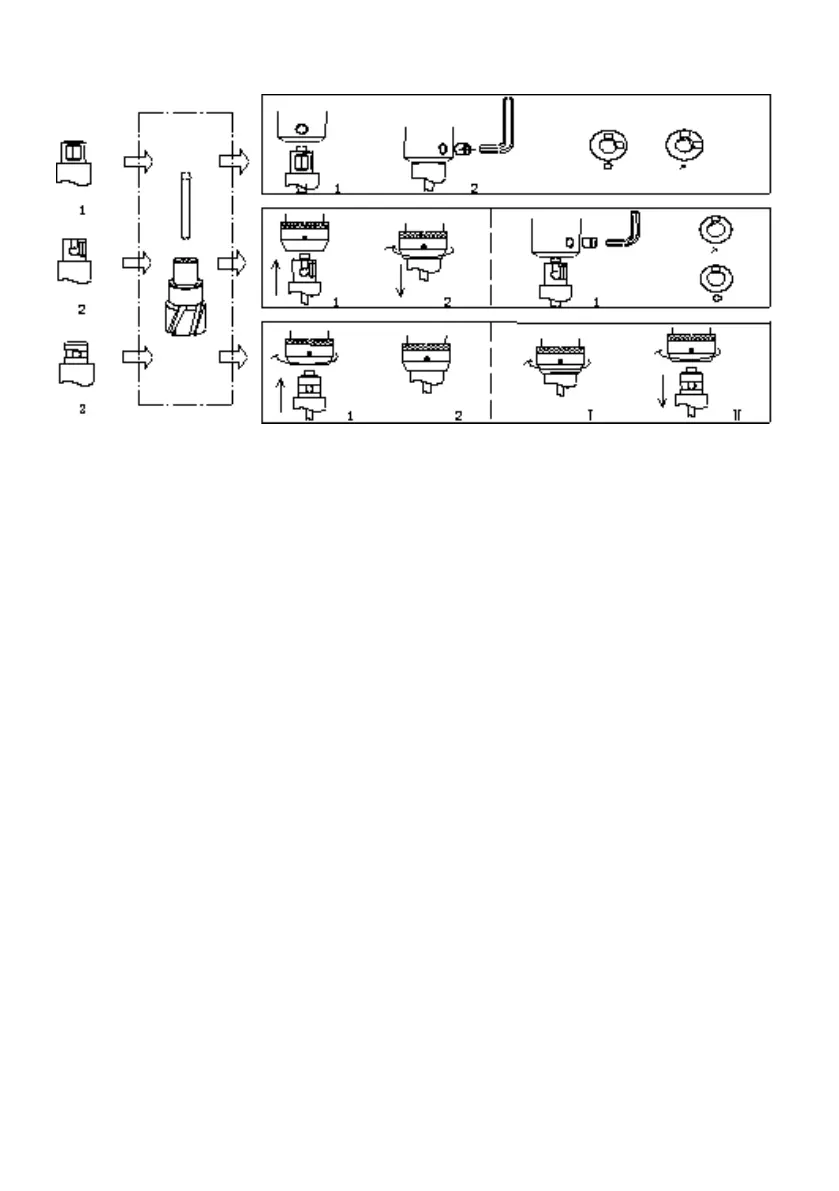

1．Installation method：
• Weldon shank （1）：The handle of two planes aim at the two screw holes
on the drill spindle，With a hex wrench to tighten and leaving a gap of
0.2-0.3mm, Back and forth with your hand to confirm socket head screw
perpendicular to the two planes, then screw down the screws.
• Universal shank（2）: The handle of two planes aim at steel ball within the
drill chuck, then loaded into chuck.
Universal shank can also be used socket head screws，As long as socket
head screw perpendicular to the two planes.
• Fein shank（3）: Turn on insurance ring of the main shaft clockwise to the
right way, let the handle end insert into directly, rotate in small range until
steel ball enter into the hole.
