6/25/2015 Manual, WL-100.doc

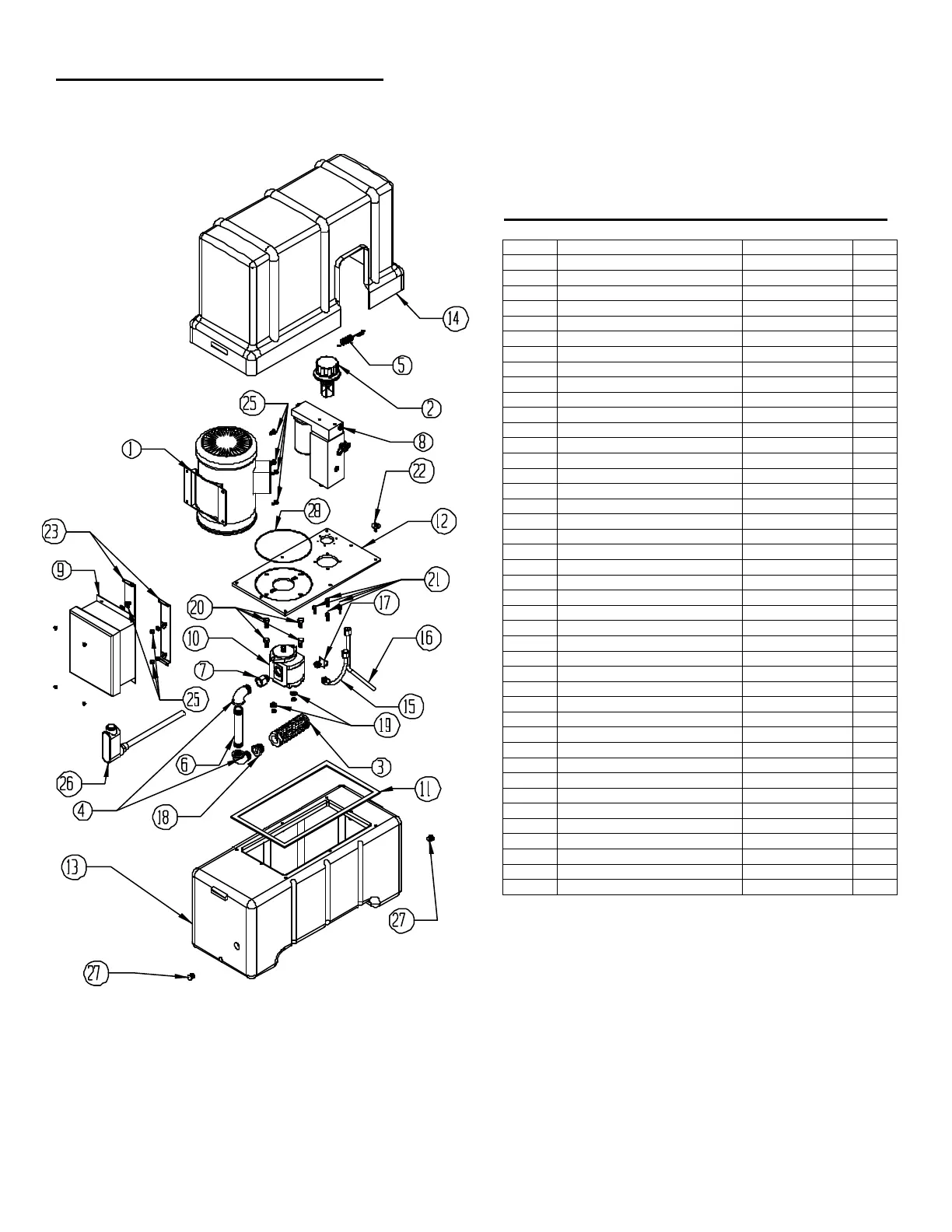

HYDRAULIC POWER UNIT – WL-100
POWER UNIT BILL OF MATERIALS -- WL-100
Item # Description Part number Qty.
1 Motor, electric, 6.5HP, 3-phase 22-135-010 1
1 Motor, electric, 3HP, 1-phase 22-135-006 1
2 Oil filler/breather AB-1164-S 1
3 Inlet strainer PS-08 1
4 Pipe, NPT street elbow ¾ ST EL 2
5 Spring 12121JY 1
6 Pipe nipple 3/4X7NIP 1
7 MORB - FP straight 6405-12-12-O 1
8 Manifold, assembly 05-627-006 1
9 Panel, control 05-529-001 1
10 Pump, gear, spline shaft P208RU07AA 1
11 Gasket material LP-113 4’
12 Plate, pump adaptor, alum. 22-031-010 1
13 Reservoir, plastic 22-023-004 1
14 Reservoir, cover 22-024-003 1
15 Hyd. steel tubing 05-623-012 1
16 Hyd. steel tubing 22-623-001 1
17 MJ-MAORB 45° 68-2-08-10-NOW 1
18 NPT pipe reducer 3/4X1BUSH 1
19 HHCS #2, Z-plated 11107 2
USS flat washer, Z-plated 33008 2
Lock washer #2, Z-plated 33008 2
Hex nut, Z-plated 36106 2
20 HHCS #2, Z-plated 11207 4
Lock washer #2, Z-plated 33625 4
21 HHCS #2, Z-plated 11055 4
Lock washer #2, Z-plated 33620 4
22 HHCS #2, Z-plated 11055 8
Lock washer #2, Z-plated 33620 8
USS flat washer, Z-plated 33006 8
23 Bracket, control panel 22-016-016 2
24 HHCS #2, Z-plated 11005 4
Lock washer #2, Z-plated 33618 4
Hex nut, Z-plated 36102 4
25 HHCS #2, Z-plated 11005 4
Lock washer #2, Z-plated 33618 4
Hex nut, Z-plated 36102 4
USS flat washer, Z-plated 33004 8
26 Heater (230V) ET2L-252 1
Heater (460V) ET3L-504 1
27 Pipe plug 5406-P-06 2
28 O-ring 568-011-BN70 1
VESTIL MFG. CO./T&S EQPT. CO. 13 of 16
