Manual, WL-100.doc6/25/2015

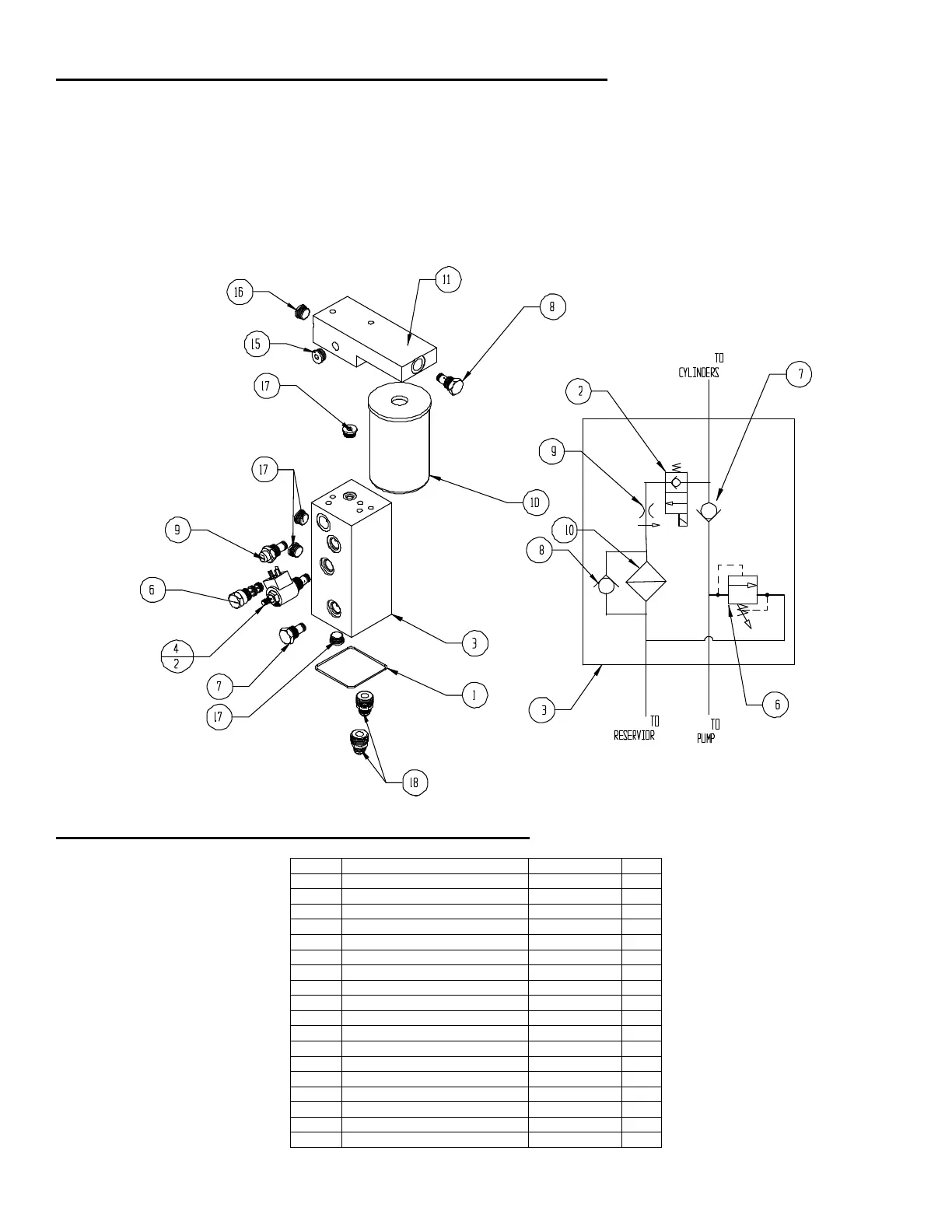

HYDRAULIC LOGIC MANIFOLD, DIAGRAM, & BOM– WL-100
o Warning: Care should be taken to identify all potential hazards and comply with applicable safety procedures
before beginning work. Fully lower or secure the platform, and ensure that all system pressure and power have
been removed, before attempting to work on the electrical or hydraulic systems.
o Raise the lift and install the maintenance props before beginning any inspections or work on the unit.
o Only qualified individuals trained to understand mechanical devices and their associated electrical and hydraulic
circuits should attempt troubleshooting and repair of this equipment
o Caution: Do not use brake fluid or jack oils in the hydraulic system. If oil is needed, use an anti-wear hydraulic
oil with a viscosity of 150 SUS at 100°F (ISO 32 @ 40°C), or non-synthetic transmission fluid.
HYDRAULIC MANIFOLD BILL OF MATERIALS -- WL-100
Item # Description Part number Qty.
1 O-ring 2-154 1
2 Valve, cart., NC, w/ man oper 99-153-016 1
3 Manifold WL-100 05-127-006 1
4 Coil, w/ DIN connector 99-034-008 1
5 O-ring 2-111 2
6 Valve, pressure relief 99-153-006 1
7 Valve, check 99-153-011 1
8 Valve, check, side in/nose out 99-153-012 1
9 Valve, flow control, 3.5 GPM 99-153-026 1
10 Hyd. spin-on filter SPE-15-10 1
11 Manifold, filter body 22-127-002 1
12 O-ring 568-116-BN70 1
13 HHCS #2, Z-plated 11063 2
14 Lock washer, Z-plated 33620 2
15 External Hex pipe plug 5406-P-06 1
16 MORB hollow hex plug 6408-H-06-O 1
17 MORB hollow hex plug 6408-H-04-O 4
18 MJ-MORB straight 6400-08-08-O 2
VESTIL MFG. CO./T&S EQPT. CO. 12 of 16
