Table of Contents Rev. 4/13/2021 VSSR, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 4 of 7
INSTALLATION
This storage rack can be installed in either a horizontal or vertical orientation.
1) Select the installation site and set the rack in place.
2) Mark the floor with the locations of the 4 bolt holes in the base frame. Bolt holes are designed for
1/2”-14 x 4”(L) anchor bolts.
3) Move the rack out of the way. Drill holes in the marked locations of appropriate size to accept the
selected anchors. Follow the installation instructions for the anchor bolts (circled).
4) Once anchors are installed, move the rack back into place and align the bolt holes in the frame with
the anchors in the floor. Install the anchor bolts as instructed. Confirm that the rack is solidly attached
to the floor.
5) If the unit is placed against a wall, it can also be
fastened to the wall through 4 holes in the wall frame.
Select appropriate fasteners for the wall material and
install fasteners in all 4 locations (arrows).
LOADING THE RACK
Distribute loads evenly on the rack. Each bay can hold up to 1,500 pounds. Sheet material loaded on
the rack should not extend more than a few inches beyond the length or width of its bay (space
between adjacent dividers).
RECORD OF SATISFACTORY CONDITION (THE “RECORD”)
Thoroughly inspect the rack after anchoring it to the ground and before putting it into service.
Record the condition and appearance of each of the bay dividers, the base frame, and all welds and
anchoring fasteners. Thoroughly photograph the rack from multiple angles. Include close range
photographs of all labels and anchor bolts. Measure distances between dividers. Mark the dividers to
show where the measurements were taken. Record your measurements. Collect photographs and
writings in a file. This file is a record of the rack in SATISFACTORY CONDITION.

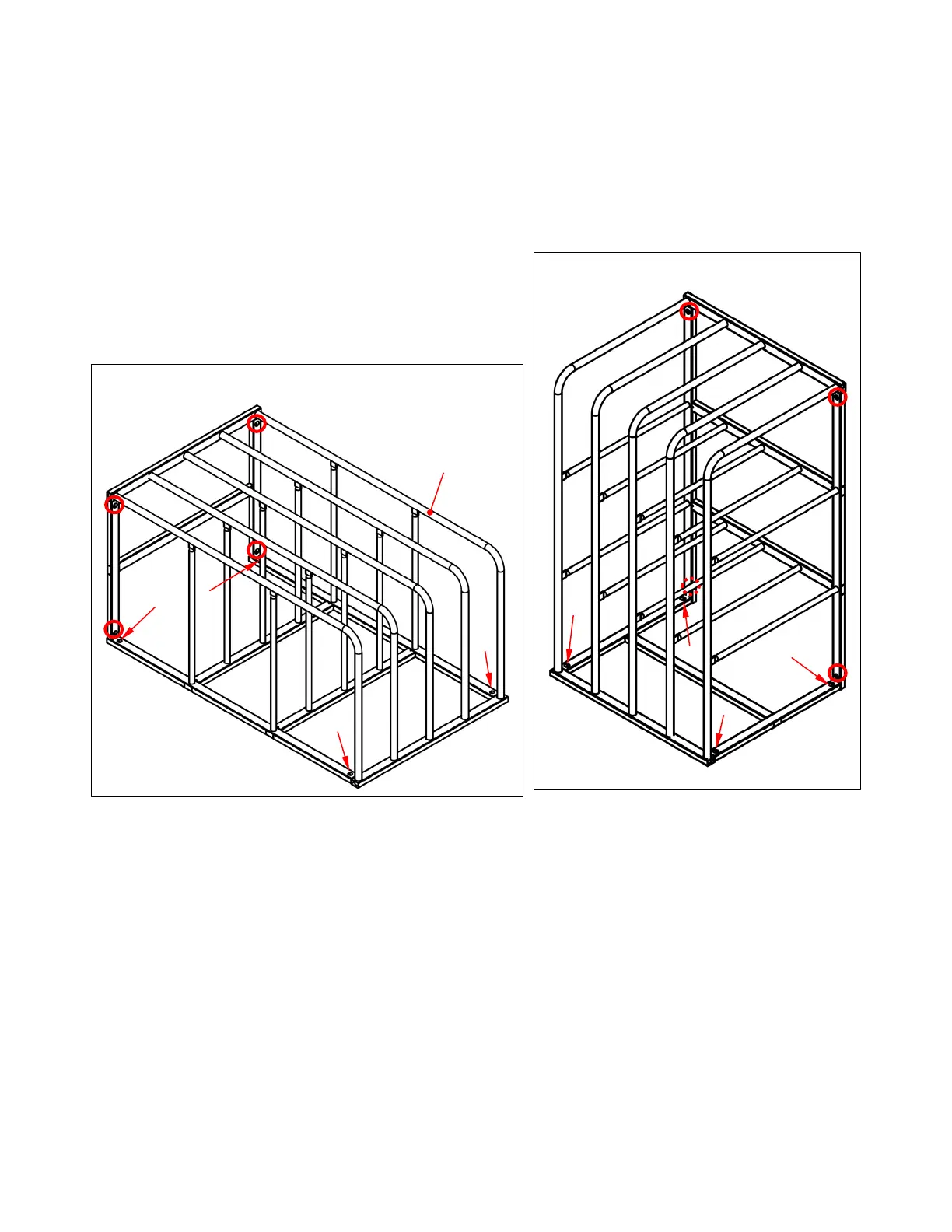

HORIZONTAL ORIENTATION
VERTICAL ORIENTATION
BASE
FRAME
BASE
FRAME
WALL
FRAME
WALL
FRAME
DIVIDER
