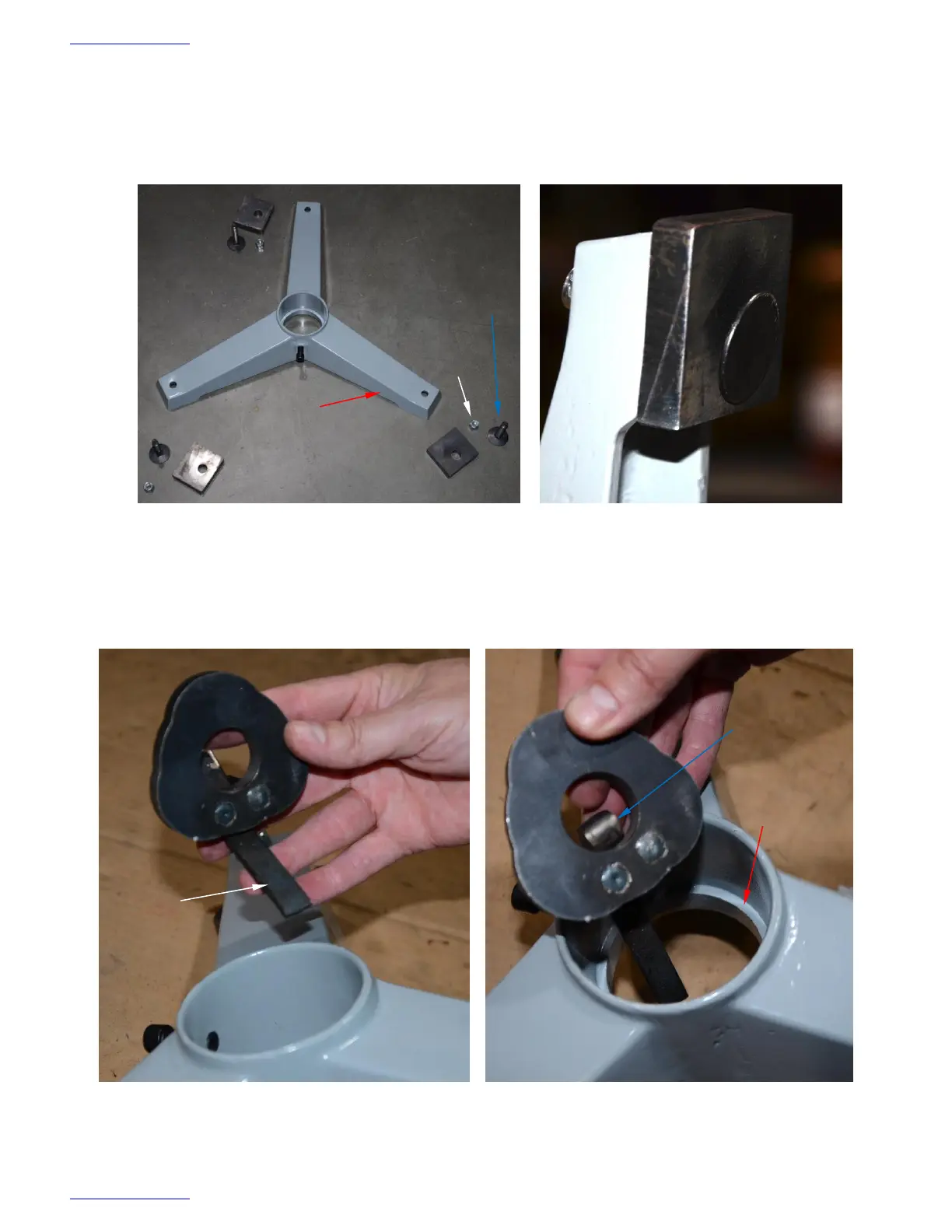

ASSEMBLING THE STAND-G
1. Attach all three (3) leveling blocks to the pedestal base. Insert the threaded feet through
the holes in the leveling blocks, and then up through the holes in the base legs. Secure
each foot with a lock nut.
2. Insert foot pedal assembly into center of pedestal base. The hinge mechanism of the
pedal must be on the underside of the assembly as shown in the following pictures. The
pedal ring should rest on top of the support collar inside the pedestal base.
Hole in
base leg
Leveling
block
Lock
nut
Threaded
foot
PEDESTAL
BASE
Lock
nut
Leveling
block
Threaded
foot
Hinge
mechanism
Support
collar
Pedal ring
Pedal
lever
