MONTHLY INSPECTIONS - At least once per month inspect:
1. Winch and pulleys: Cycle the hook up and down. Confirm
that the cable winds off of and onto the winch drum smoothly. The
winch brake should engage whenever the handle is still and
prevent the hook from lowering on its own. The cable pulley
should not be loose or severely worn and should rotate freely as
the cable passes over it.
2. Winch cable: Check for reeving, fraying, thinning,
birdcaging, and elongating regions. If the cable is damaged,
replace it.
3. Frame elements: Examine the fork tubes, braces, mast,
gussets, and boom for damage, corrosion, cracked welds, and
severe wear. All frame members should be square, rigid, and free
of significant rusting. Remove rust with steel wool or a metal
bristle brush, clean the areas to remove rust particles, and apply
touchup paint to the affected areas.
4. Hook: Visually inspect the hook before each use. Look for
deformations and cracks. Immediately discard the hook if it is
cracked or if the throat opening is more than 15% in excess of the
original throat opening. Discard the hook if it is twisted more than
10° from the plane of the hook in its original condition. Confirm
normal operation and operation of the safety latch. Examine cable
clamps that attach the hook to the cable. Make sure that all
connections are solid.
5. Fork tubes and braces: Inspect the fork tubes. Confirm that
both braces are securely attached to the tubes and solidly contact
the forks (of your pallet truck). Closely examine the areas around
the bolt holes in the braces and tubes. Look for elongations, rust,
corrosion, and metal fatigue. Check the condition of the hardware.
6. Labels: Confirm that all labels are in good condition and in
place as shown in the “Labeling Diagram” (below).
Every 6 months:
Conduct a load test. Lift a test weight equal to 125% of the capacity. After the test, examine the frame,
winch, cable, and hook. Look for deformations, cracks, and metal fatigue.

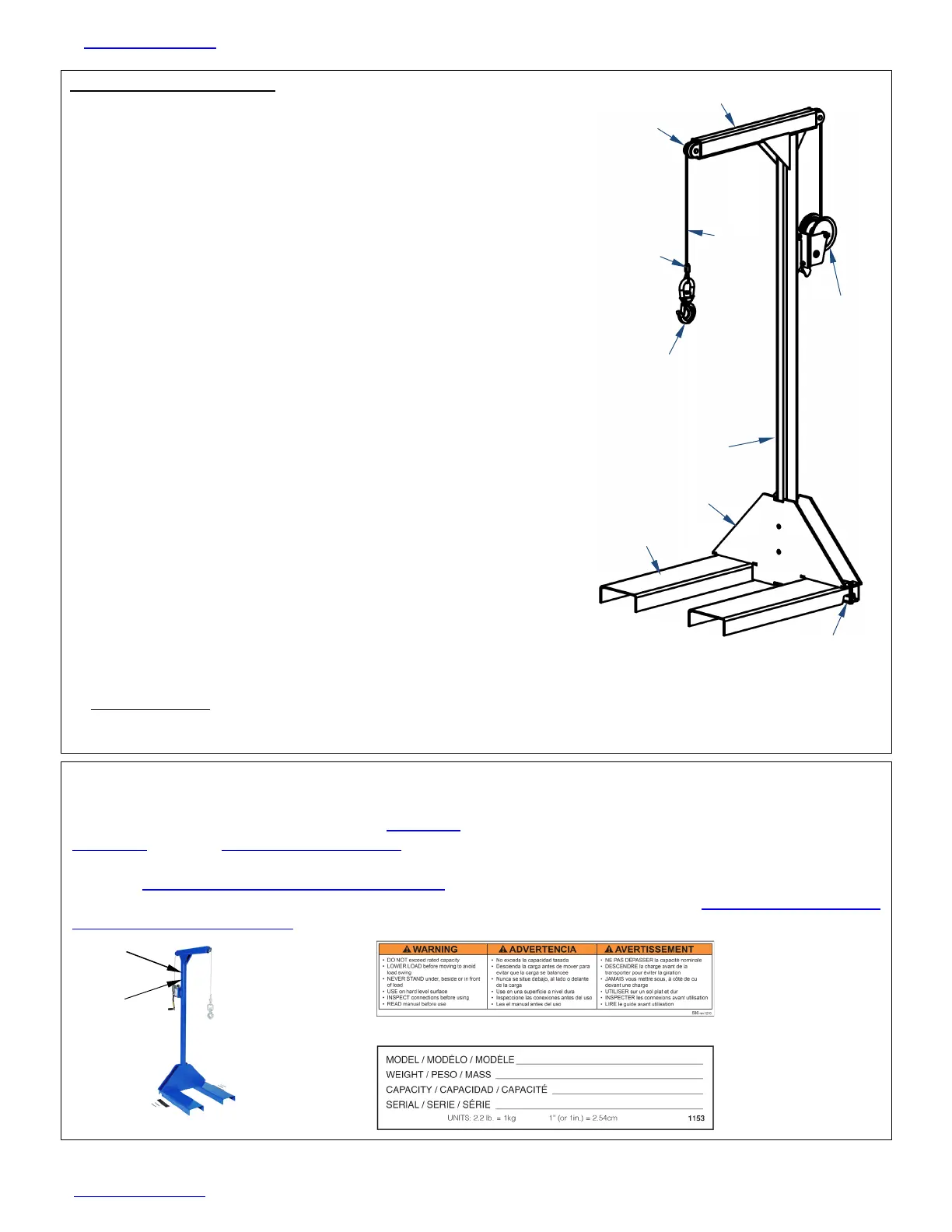

LABELING DIAGRAM
Label content and locations are subject to change so your product might not be labeled exactly as
shown. Compare this diagram to the RECORD
. If differences exist between the diagram and the
RECORD, contact TECHNICAL SERVICE. Replace all labels that are damaged, missing, or not easily
readable (e.g. faded). To order replacement labels, contact the technical service and parts department
online at
http://www.vestilmfg.com/parts_info.htm. Alternatively, you may request replacement parts and/or
service by calling (260) 665-7586 and asking the operator to connect you to the TECHNICAL SERVICE
AND PARTS DEPARTMENT.
A: Label 586
B: Label 1153
Mast
Hook
Cable
clamp
Cable
Boom
Winch
Fork tube
Brace
Gusset
Pulley
A
B
