TABLE OF CONTENTS Rev. 4/23/2021 PAIL-T, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp. Page 3 of 6

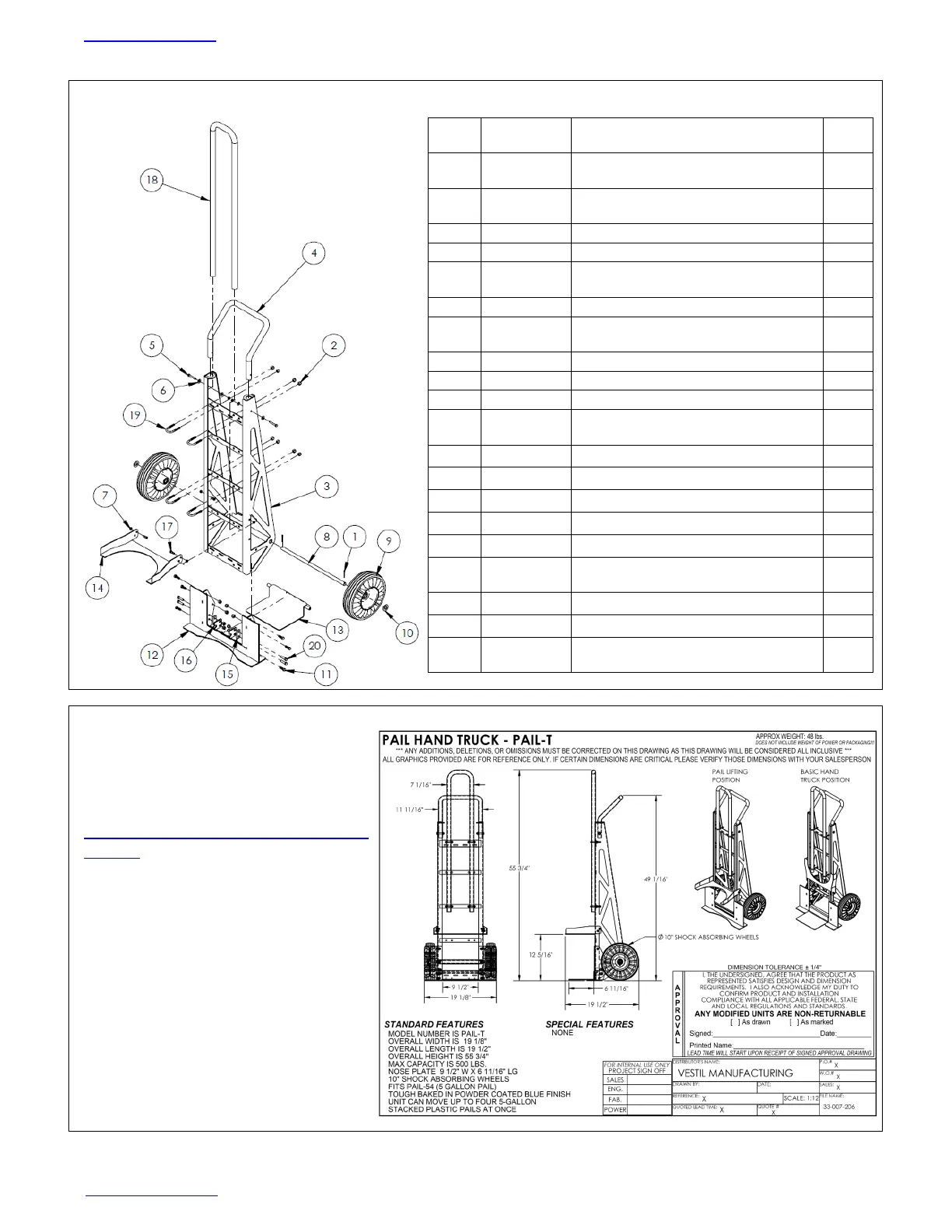

EXPLODED VIEW AND BILL OF MATERIALS (33-006-206)
SPECIFICATIONS
Specifications for PAIL-T hand
trucks are provided on Vestil’s
website. To access the specifications
document, navigate to this webpage:
https://www.vestil.com/product.php?F
ID=906. Click the “Specifications” tab.
Scroll the page to the entry for the
model you purchased, and click the
button in the PDF column that looks
like a pencil inside a blue box. A PDF
file will open. This file is the
specifications document. Print a copy
of the document and keep it with your
copy of this manual. The following is
an exemplar specifications document
(33-007-206).
ITEM
NO.
PART NO. DESCRIPTION QTY.
1
65078
EXTENDED PRONG COTTER PIN, ZINC
FINISH, 1/8” X 1 ½”
2
2
37021
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 5/16”-18
18
3
16-514-194
FRAME WELDMENT
1
4
16-025-060
HANDLE BAR FRAME
1
5
11010
HEX BOLT, GRADE A, ZINC PLATED,
¼”-20 X 1 ¾”
2
6
33004
FLAT WAHSER, USS, ZINC PLATE, ¼”
4
7
36102
HEX NUT, GRADE A, ZINC PLATED, ¼-
20
6
8
16-112-039
AXLE PIN
1
9
16-132-265
10” SHOCK ABSORBING WHEEL
2
10
33090
FLATER WAHSER, SAE, 5/8
2
11
11055
HEX BOLT, GRADE A, ZINC PLATED,
5/16-18 X 1
6
12
33-514-253
FRAME WELDMENTS, ATTACHMENT
1
13
33-513-091
DECK/NOSE PLATE WELDMENT
1
14
33-514-252
PAIL LIFTER/CARRIER WELDMENT
1
15
33-113-025
SPACER BLOCK
2
16
33-016-143
HINGE BRACKET
2
17
26313
SHSB, 5/16 X 3/8 SHOULDER, ¼-20
THREAD
4
18
33-014-419
FRAME, PAIL HODING HOOP
1
19
42012
5/16-18 U-BOLT FOR ¾” PIPE
4
20
11057
HEX BOLT, GRADE A, ZINC PLATED,
5/16-18 X 1.25
4
