Table of Contents Rev. 9/25/2023 LM-1T-8-24-TP/HBE MANUAL
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 9 of 14
valve 2CB, and through a second directional valve (LT). During boom extension,
LT is in its default/unactuated position. From there, oil returns to the reservoir. The
counterbalance valves prevent jerky movement as the boom extends and
retracts. Releasing the button turns off the motor and stops the boom. The
boom maintains position until a control button ( / ) is pressed.
ii. Retracting the boom: Pressing the button causes the pump to push oil
through energized directional valve LT, through counterbalance valve 2CB, and
into the rod end of the cylinder. Oil flows from the blind end of the cylinder and
through counterbalance valve 1CB. Oil flows through unactuated directions
valve RT and into the reservoir. If the button is released before the boom is fully
retracted, the boom maintains position until either control button is pressed.

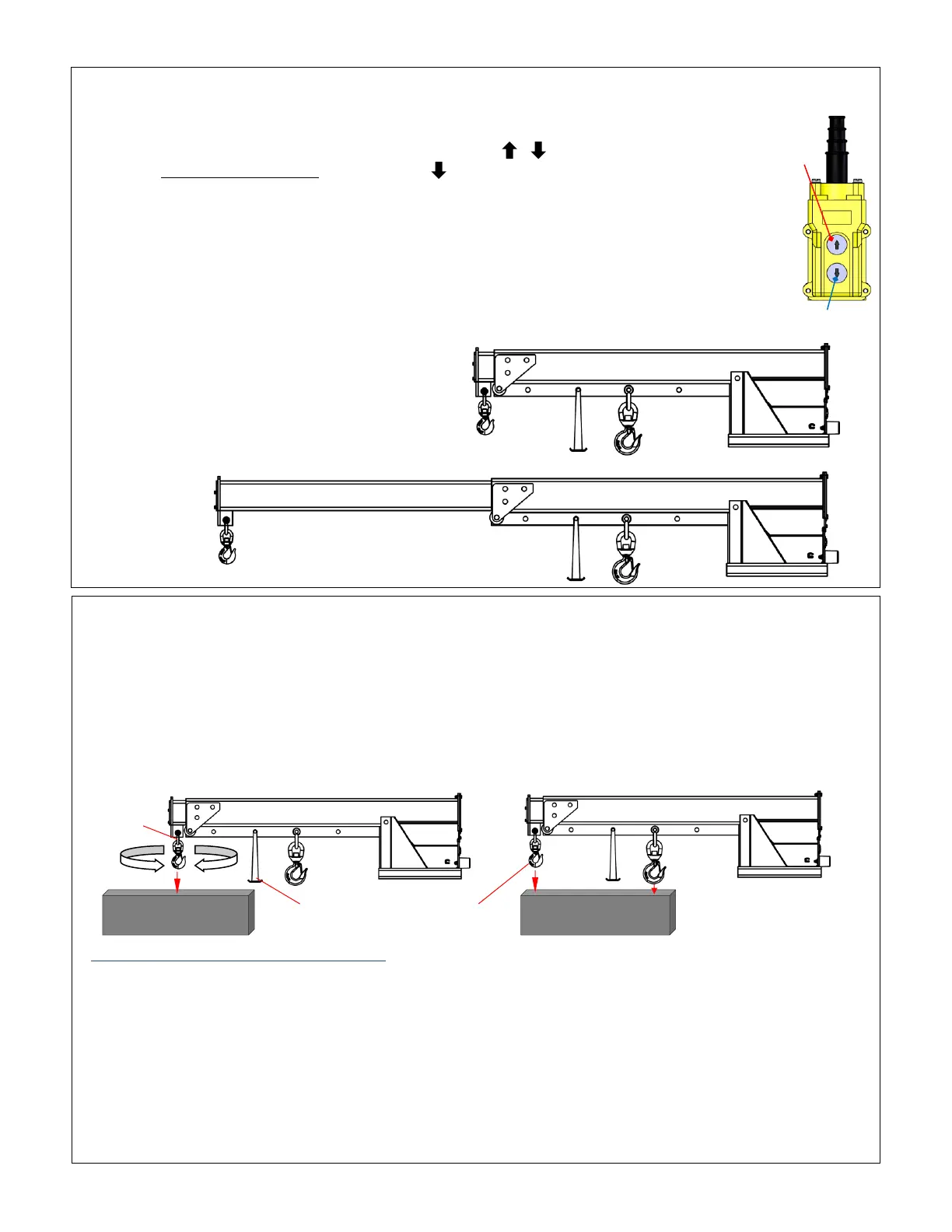

iii. Boom configurations shown below are retracted and extended. DO NOT
extend or retract the boom while it is loaded unless the load weighs 2,000
pounds or less. The powered extension and retraction feature cannot be used
with loads exceeding 2,000 pounds (909.1kg)
5. Attach the load to the boom. First, connect the load to appropriate rigging. Then, attach the rigging to
the end hook or to both the end hook and the stabilizing hook (see diagrams below).
a. Verify that the load attachment is stable. See Test the stability of the load in the rigging (below).
b. Raise the load to no more than 6-8 inches above ground (entirely suspended from the boom).
c. Slowly transport the load to the desired unloading location.
d. Slowly lower the load until it is entirely supported by the ground and there is slack in all rigging.
e. Disconnect the rigging from the hooks.
f. Adjust the fork height to be no more than 6-8 inches above ground.
g. Return the boom to its storage location.
Test the stability of the load in the rigging. Raise the forks slowly to minimize load movement. Raise the forks
until the entire load is suspended. Watch the load and boom closely for either: 1) Load sliding in rigging; or
2) Boom sliding towards the tips of forks. If you notice either issue, immediately lower the forks and adjust the
rigging. Retest the stability of the load in the rigging. Tilt the forklift mast slightly towards the cab to prevent
the boom from sliding on the forks.
Only raise the load 6-8 inches above the ground to transport it. Adjust load height to avoid obstacles
along the travel path. After clearing the obstacle, lower the forks so that the load is again 6-8 inches above
the ground.
DO NOT exceed approximately 1.5 mph (2.2fps) while transporting a load with the boom.
Travel ONLY on smooth, level surfaces. Turn slowly. After a turn is completed, wait for the load to stop
swinging before resuming travel.
If the load is unstable while suspended, DO NOT use the boom.
Load attached to only one hook: load rotation likely
Load attached to both hooks: load rotation minimized
Boom receiver
Boom receiver
Boom
Shackle
EXTEND
RETRACT
HANDHELD
CONTROLLER
Boom
extende
d
Boom
retracte
d
Load
Load
End hook
Support
leg
