Table of Contents Rev. 9/25/2023 LM-1T-8-24-TP/HBE MANUAL
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 6 of 14

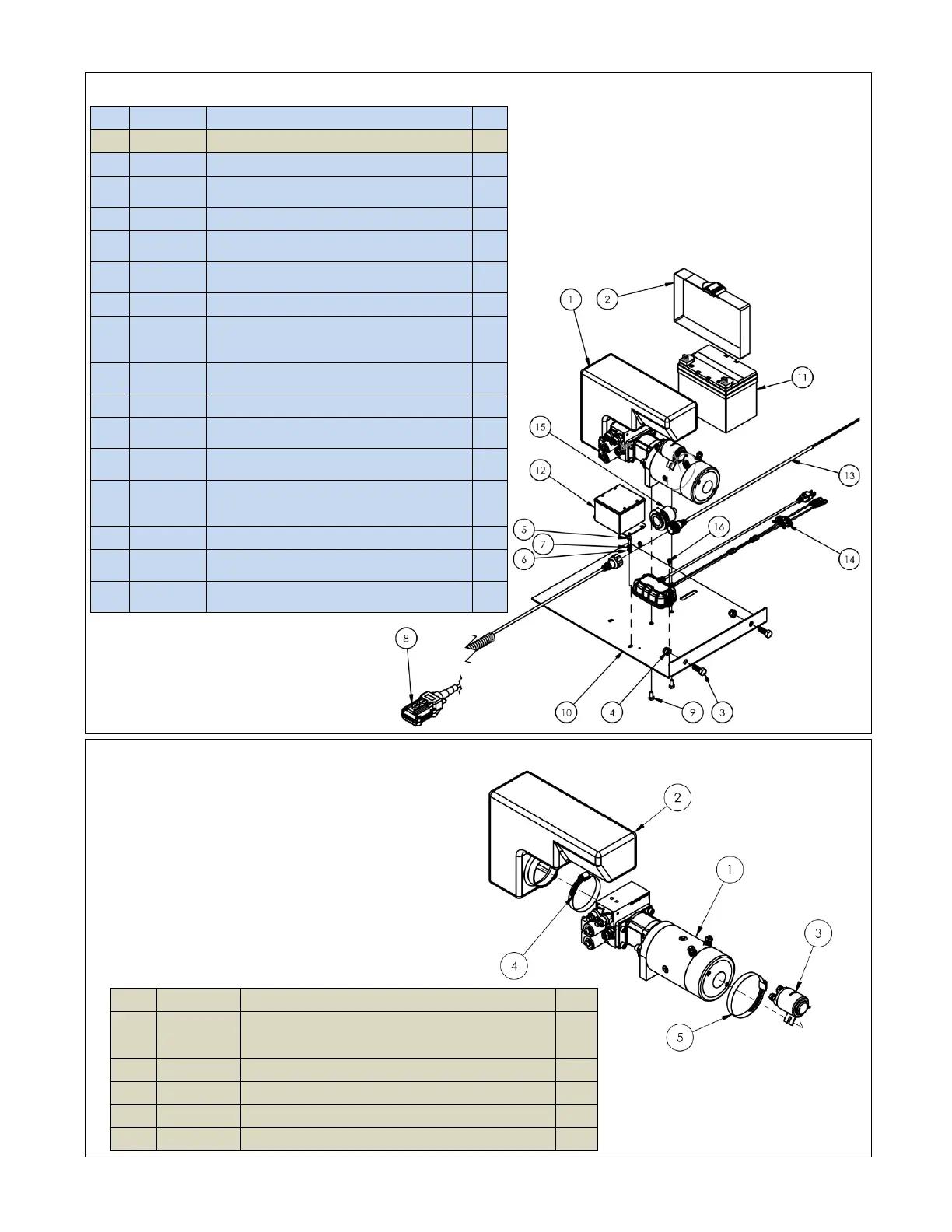

Power Unit Exploded View and Bill of Materials (Part No. 08-660-001 on p. 4)
Item
Part no.
Description
Qty.
1
99-160-232
Power unit subassembly, 12VDC
1
2
99-034-013
STRAP, BATTERY BOX, W/ BUCKLE
1
3
11207
HHCS #2 Z Plated, GRADE A, Ø1/2 - 13 x 1
1/4 LG
2
4
37030
1/2"-13 NYLON INSERT LOCK NUT, GRADE 2
2
5
11003
HEX BOLT, GRADE A, ZINC PLATED, 1/4-20 X
3/4"
2
6
37018
NYLON LOCK NUT,GRADE 2, ZINC
FINISH,1/4"-20
2
7
33002
Ø3/16 USS FLAT WASHER Z-PLATED
2
8
99-522-027
ASSEMBLY, HAND CONTROL (2-BUTTON),
CORD, COILED, 18/3, 18"-90", 18" TAIL, 3-PIN
MOLDED MALE PLUG
1
9
11053
Ø 5/16 - 18 x 3/4 LG HHCS #2 Z-PLATED,
GRADE A
2
10
08-016-110
BRACKET, POWER TRAY
1
11
21-139-002
BATTERY, 12V DC, SEALED LEAD ACID
(AGM)
1
12
99-029-027
CONTROL ENCLOSURES, JUNCTION BOX,
4x4x3
1
13
99-533-017
ASSEMBLY, CORD, STRAIGHT, 18/5, 30"
MOLDED FEMALE
RECEPTACLE, 5-PIN
1
14
99-139-021
BATTERY CHARGER, 6V/12V, ONE BANK-5A
1
15
21-034-005
CONNECTOR, FLANGED INLET PLUG, FRONT
MOUNT W/ COVER, 15A, 125V
1
16
32406
#10-24 UNC x 1/2", HWH TYPE F THREAD
CUTTING
2
Power Unit Subassembly Exploded View and Bill of Materials (99-160-232)
Item
Part no.
Description
Qty.
1
99-160-231
Subassembly: Motor + Pump (99-137-029; 12V, 1-
phase, 2.15HP, 1800rpm, 1600W, 0.073disp.);
Manifold (99-627-021) with counterbalance valves
1
2
99-023-002
Reservoir, non-torsional, 3” boss
1
3
99-034-028
Motor contactor, 12V coil
1
4
99-145-061
Clamp, worm gear hose, 2
13
/
16
” – 3
3
/
4
”
1
5
99-145-164
Clamp, worm gear hose, 3
9
/
16
” - 4
1
/
2
”
1
