TABLE OF CONTENTS Rev. 9/30/2021 LAD-FM-PSO, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 12 of 21

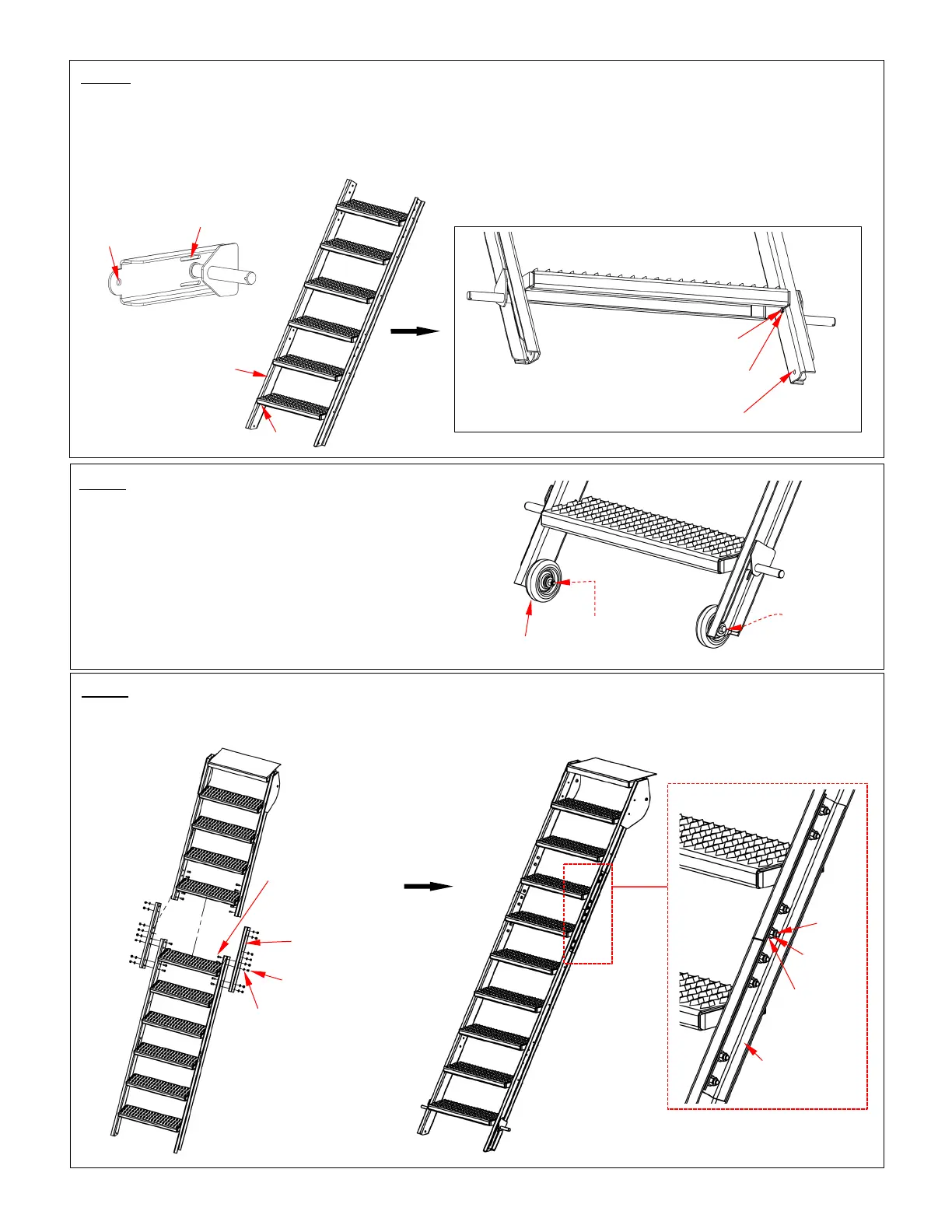

Step 4: Install a latch pin weldment (44-514-456) near the bottom of each side rail of the lower step
weldment (6 steps; 44-514-441). Attach each latch pin weldment to a side rail with an 8-32 x 1” round
head machine screw (27402). Slide a #10 flat washer onto each screw. Insert a screw through the hole in
a side rail just beneath the first step and then through the matching bolt slot in the latch pin weldment.
Install another #10 flat washer onto the end of each screw. Install an 8-32 lock nut (37012) on each
screw. Leave the connections loose until wheels are installed in Step 5.
3
/
8
” flat washer &
3
/
8
” – 16 x 2½” bolt
3
/
8
” flat
washer &
3
/
8
” - 16 lock
nut
Step 5: Attach the wheels to the side rails of the lower
step weldment. [NOTE: Models LAD-FM-60 and LAD-
FM-72 just have 1 step weldment.] Slide a
3
/
8
” flat
washer (33008) onto each of two
3
/
8
” – 16 x 2½” bolts
(11113). Insert a bolt through the center of each wheel
(16-132-009), through the hole in the bottom of each
side rail, and finally through the bolt hole in the
bottom of the corresponding latch pin weldment.
Secure each bolt with another flat washer and a
3
/
8
” -
16 lock nut (37024).
Step 6: [This assembly step does not apply to models LAD-FM-60-PSO or LAD-FM-72-PSO.] Assemble the
stairs. Fasten the top step weldment to the lower step weldment using 2 side stiffeners and
3
/
8
” hardware
as shown in the diagrams.
3
/
8
” – 16 lock nut
(37024)
5
/
16
” flat washer
(33006)
3
/
8
” – 16 x 1
1
/
4
” bolt
(11107)
Side stiffener
(44-014-544)
Side stiffener
Bolt
Lock
nut
Flat
washer
Wheel
Hole just below first step
Side rail
Bolt hole
for caster
bolt
Latch pin weldment
(44-514-456)
Bolt slot
8-32 x 1” machine screw
#10 flat washer
Bolt hole in side rail for caster bolt
