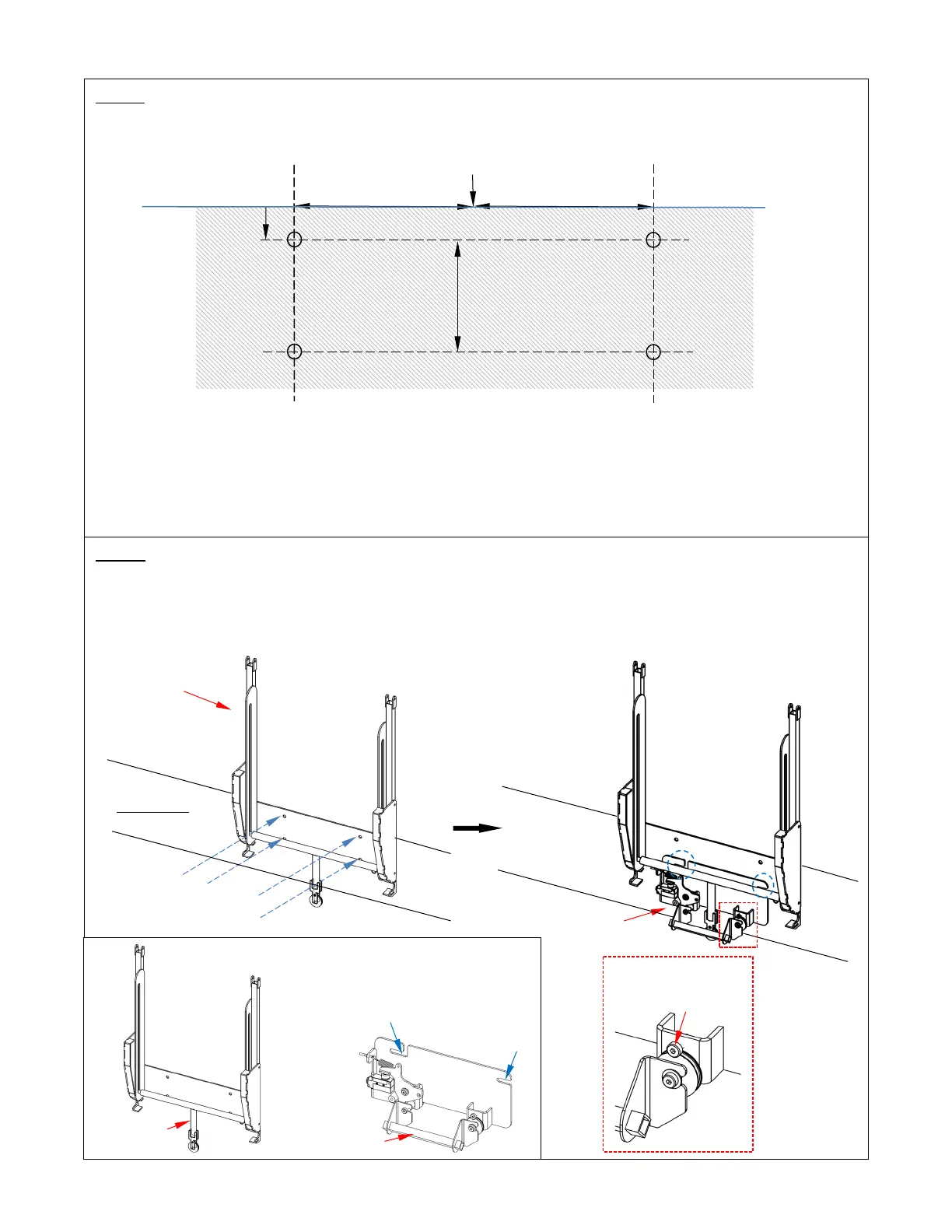

Step 3: A) Fasten the ladder mount weldment (44-516-038) to the mezzanine using the
1
/
2
” bolts
selected by your building engineer. Install but do not tighten the two bottom bolts. B) Align the bolt
slots in the mounting lift bracket (44-514-131) with the lower bolts (circled); then tighten the bolts. The
pulley arm must be inside the mounting lift bracket behind the retaining bar. C) Remove the shoulder
bolt shown in figure C.
Step 2: Use point D as the reference for determining the proper locations of bolt holes. The holes
drilled into the face of the mezzanine/walkway must match the relative locations of bolt holes in the
center mounting bracket (44-016-138) of the ladder mount weldment (44-516-038). Dimensions are
shown below.
Make a line that extends 8” on both sides of point D on the wall or mezzanine. The line must be
parallel to the floor. Next, draw a plumb line at both 8” marks (lines are labeled “a” and “b” in the
diagram above). Mark each plumb line 1½” and 6
1
/
2
” below the level line. Bolt holes will be drilled at
all four points as shown above. The pre-drilled holes in the mounting frame are
5
/
8
” (diameter). We
recommend using ½” (diameter) fasteners to connect the mounting plate to the wall or mezzanine.
Your building engineer should select hardware appropriate for the wall or mezzanine material and of
suitable length.
D
8in.
8in.
1
1
/
2
”
5”
a
b
Mezzanine
Ladder
mount
weldment
Mounting
lift bracket
Fasten mounting plate
to mezzanine with
1
/
2
”
hardware
Level
line
A
B
Bolt slot
Ladder
mount
weldment
(55-516-038)
Mounting
lift bracket
(44-514-131)
C
Remove
shoulder bolt
(26347)
Bolt slot
Pulley arm
Retaining arm
