Table of Contents Rev. 12/8/2020 LAD (13-16 STEPS), MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 13 of 19
Horizontal
brace
D
E
D
E
F
Front horizontal
support
E
F
E
E
Threaded cross
braces
E
D
F
3
/
8
” – 16 x 1
1
/
4
” bolt
(11107)
3
/
8
” flat washer
(33008; one on each
side of connection)
3
/
8
” lock nut (37024)

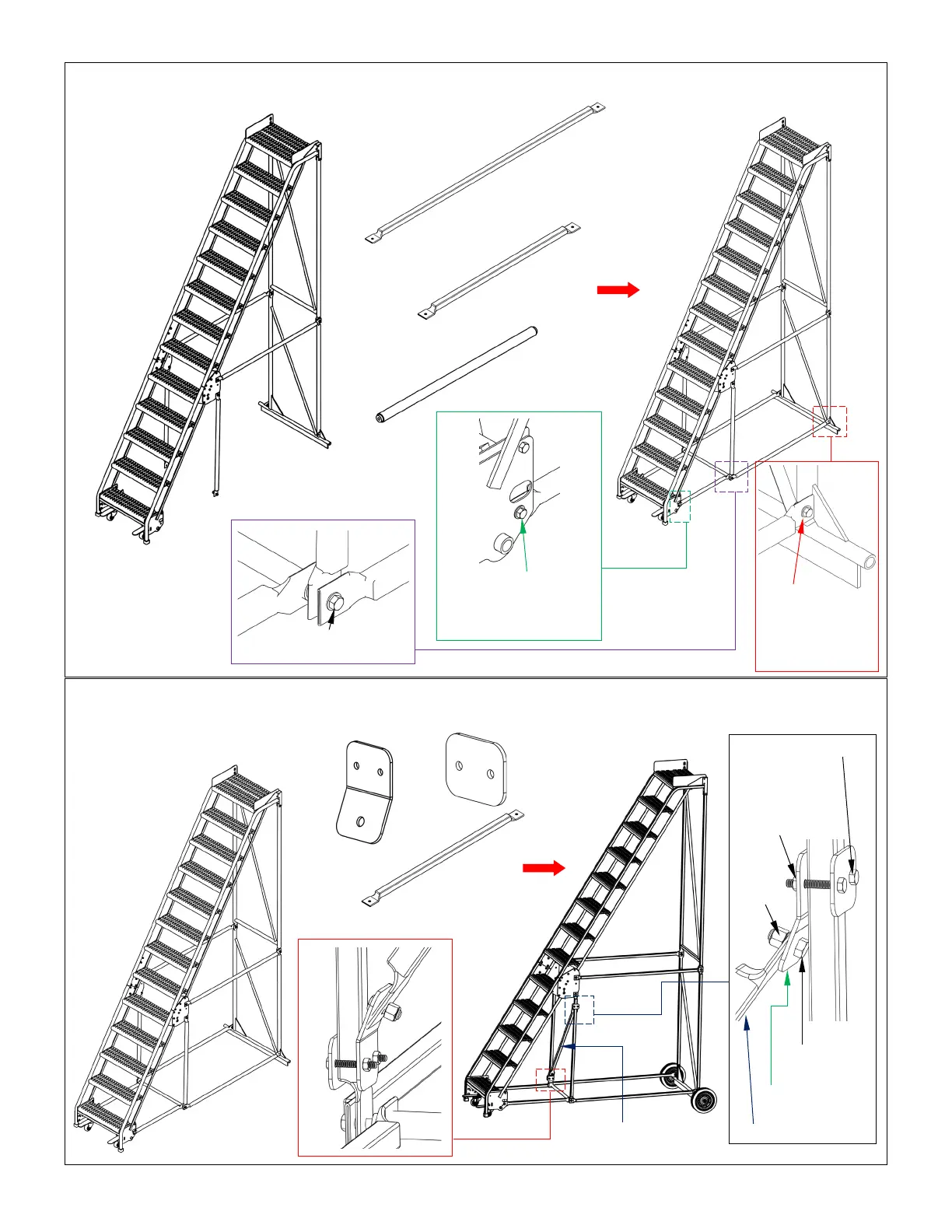

Step 5: Attach the diagonal frame brace [44-014-601 (13-step models); 44-014-602 (14-step models); 44-014-597 (15-step
models); 44-014-595 (16 step models)] to the front vertical supports. First, fasten the diagonal frame brace to the formed brace
bracket (44-016-110); then attach the formed bracket to the flat bracket (44-016-109) as shown in the diagram below.
3
/
8
” – 16 x 1
1
/
4
” bolt (11107)
3
/
8
” flat washer (33008; one
on each side of connection)
3
/
8
” lock nut (37024)
3
/
8
” – 16 x 1
1
/
4
” bolt (11107)
3
/
8
” flat washer (37024)
Diagonal frame brace
Formed brace
bracket
Brace
bracket
Diagonal
frame brace
Formed brace
bracket
3
/
8
” – 16 x 1
1
/
4
”
bolt (11107)
3
/
8
” - 16
lock nut
(37024)
1
/
4
” – 20 x 1
3
/
4
” bolt
(11010)
1
/
4
” – 20
lock nut
(37018)
Diagonal
frame brace
Step 4: Attach two more horizontal braces (44-014-597), the two front horizontal braces [44-014-599 (13 step models); 44-014-
600 (14-steps); 44-014-601 (15-steps); 44-014-602 (16-steps)], and one of the threaded cross braces (3) to the ladder assembly
with
3
/
8
” fasteners (11107; 33008; 37024) as diagrammed below.
