Table of Contents Rev. 4/16/2021 IBC-TLT, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 4 of 7

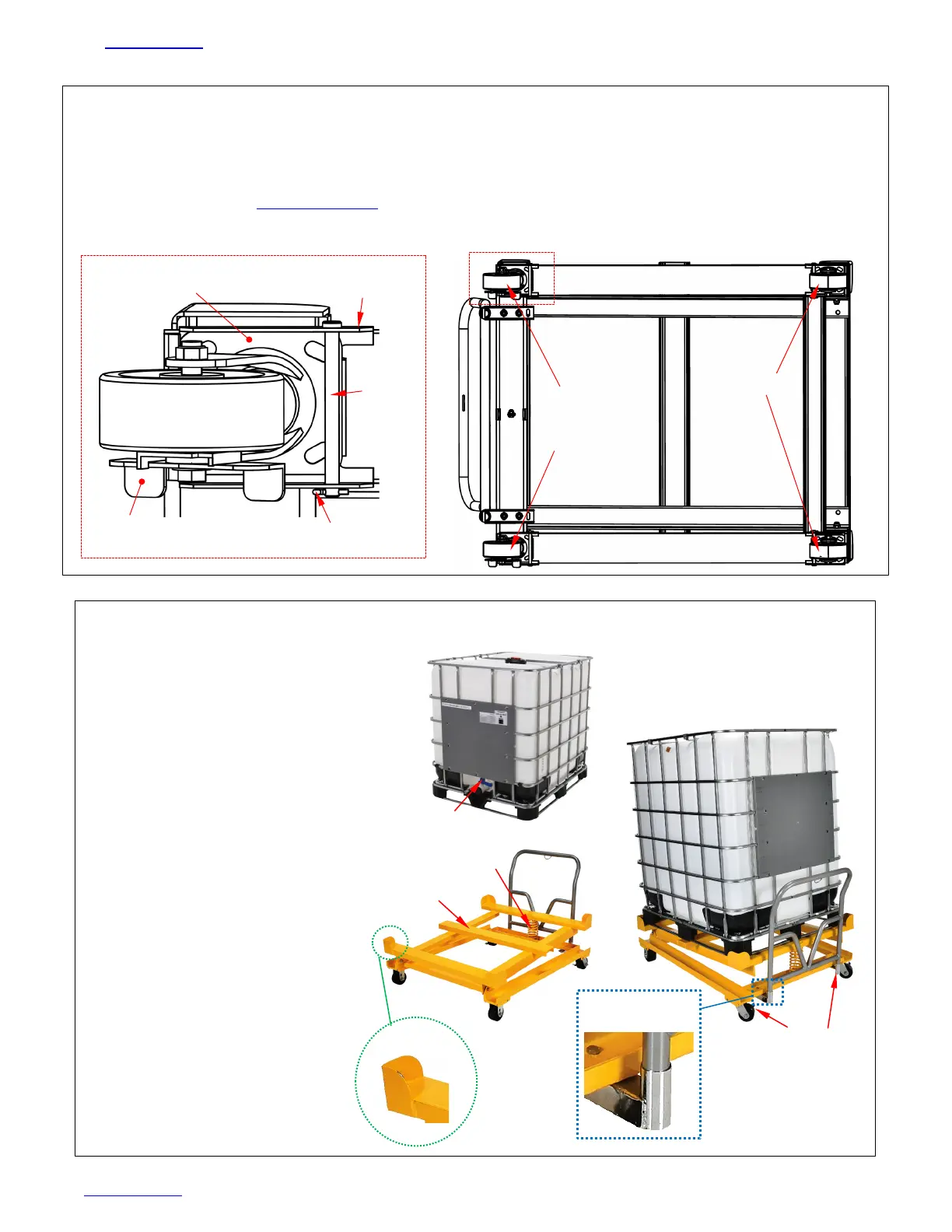

ATTACHING THE CASTERS
Numbers in parentheses correspond to part numbers in the bills of materials on p. 3.
Attach casters to the underside of the lower frame subassembly (16-514-278). There are 2 types of caster
included in the hardware kit: 1) Rigid casters (16-132-022); and 2) Swiveling casters with brakes (16-132-053).
The diagram below and EXPLODED VIEW
indicate where each caster must be installed. Place the mounting
plate of each caster inside a bulldog caster receiver. Secure the casters in place with a clevis pin (99-112-
006) and cotter pin (65073).
USING THE CONTAINER CART
Install the legs of the handle in
the handle brackets (16-016-
063).
The cart is designed to
support 275gal or 300 gal.
intermediate bulk containers
(ICB). Place an ICB on the cart
with the drain valve opposite the
spring. Make sure that the
container fits inside the 4 retainers.
The spring elevates the back side
of the container support as the
weight of the container
decreases. Elevating the back
side of the ICB causes its contents
to flow towards the drain. Lock
both caster brakes whenever the
cart is stationary. Disengage the
brakes to move the cart. Use the
cart only on even, level surfaces.
Swiveling
caster with
brake
Rigid caster
Brake
lever
Cotter pin
Clevis
pin
Mounting plate
of caster
Bulldog caster
receiver
Spring
Caster
brake
Container
support
Drain valve
Install handle in
handle brackets
Intermediate bulk container
Retainer
