Table of Contents Rev. 3/18/2022 HOP-LP, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Co. Page 4 of 10

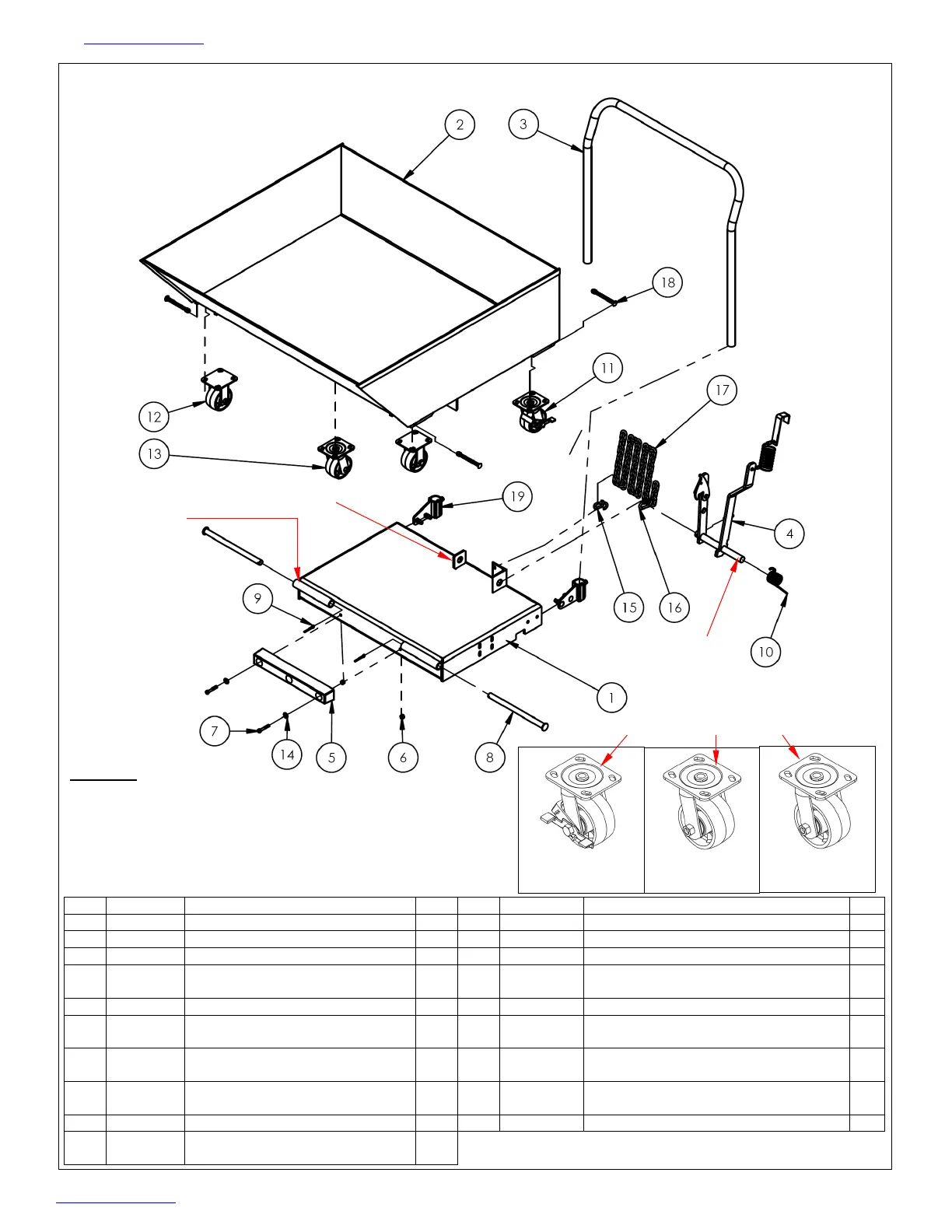

HOP-LP EXPLODED VIEW AND BILL OF MATERIALS
Pin bracket
Release lever
pin (integral
part of 4)
Axle
receiver
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
37-514-083
WELDMENT, FRAME, BASE
1
11
16-132-259
Caster, swivel, with brake, GFN-4/2-SWB
1
2
37-545-028
WELDMENT, CHUTE
1
12
16-132-260
Caster, rigid, GFN-8/2-R caster
2
3
37-025-007
CHUTE, HANDLE
1
13
16-132-258
Caster, swivel, GFN-8/2-S
1
4 37-537-021
WELDMENT, LOCK, RELEASE
LEVER ASSEMBLY
1 14 33006
5
/
16
” zinc-plated USS flat washer 2
5
29-048-061
BUMPER, RUBBER
1
15
99-145-084
Lap link
1
6 37021
NYLON INSERT LOCK NUT, GRADE
2, ZINC FINISH, 5/16"-18
2 16 99-145-053
5
/
16
” quick link 1
7 11061
HHCS #2 Z PLATED, GRADE A, Ø
5/16 - 18 x 2" LG
2 17 09-145-018
5
/
16
” chain, 56” long 1
8 37-112-045 PIN, HINGE AXLE 2 18
99-112-006
65076
Pin, clevis, 0.374” x 4-5/8”
Pin, cotter, 1/8” x 1”
4
4
9
65127
COTTER PIN Z PLATED, 3/16 x 2
3
19
37-154-022
Kit, handle socket bracket
1
10 37-146-005
SPRING,TORSION,HOPPER
RELEASE
1
Swivel caster
with brake (11)
Swivel caster
(13)
Rigid caster
(12)
Caster mounting plate
