Table of Contents 2/4/2022 HLD MANUAL
Table of Contents Copyright 2010 Vestil Manufacturing Corp. Page 6 of 19
INSPECTIONS
Regular maintenance is essential for maximizing the service life of this product. Compare all inspection
results to the RECORD OF SATISFACTORY CONDITION
discussed on p. 4. Only use the drum dumper if it is in
satisfactory condition. If an inspection reveals any changes from satisfactory condition, complete all
repairs before returning the dumper to service. Only use manufacturer-approved replacement parts.
DON’T GUESS! Contact TECHNICAL SERVICE if you have questions that are not addressed in these
instructions or if you are uncertain how to address an issue discovered during an inspection. Technical
Service can be contacted by calling (260) 665-7586 and asking for the Service and Parts Department or
by submitting your questions through Vestil’s online parts and service portal at
https://www.vestil.com/page-parts-request.php.
Before each use, inspect:
1. Wires: Look for damaged sheathing; exposed wire.
2. Hydraulic system: Check the oil tank and tubing/hoses for punctures, cuts, leaks.
3. Drum clamps: Inspect for damage such as deformation, looseness of fit, etc.
4. Frame: Check the cylinder brackets (elements
welded to the frame to which the top and bottom
of a cylinder are bolted/pinned), vertical and
horizontal frame members, horizontal cross-
member, and angle cross member, hinge blocks,
and pivot shaft and spacer assemblies for
cracking, deformation and corrosion.
5. Vertical lift limit switches: Press the LIFT RAISE
button. The motor should stop as soon as the chute
reaches maximum elevation. Press the LIFT LOWER
button. The motor should turn off when the chute
returns to home position.
6. Dump angle limit switches: Verify satisfactory
function. The chute should not rotate more than:
Stationary [-S] units: 45 degrees
Mobile [-P] units: 40 degrees
7. Listen to the unit as it operates for unusual
sounds e.g. grinding or popping, during operation.
Watch for jerky movements. Contact
maintenance personnel if you observe any
unusual sound or movement and do not use the
dumper until approved for service.
At least once per month, inspect the dumper as follows:
1. Oil level: Elevate and tilt the chute to dumping position; then observe the level of oil in the reservoir. The
surface of the oil should be 1 to 1½ inches below the fill hole.
2. Pivot points: check the dumper for excessive wear at the pivot points between hydraulic cylinders and
cylinder brackets, and between pivot shafts and hinge blocks;
3. Floor connection points: anchor bolts should prevent the frame from lifting off the ground during chute
operation. Concrete around each anchor bolt should be intact—no cracking or flaking;
4. Fasteners: check each fastener connection. Tighten all loose connections;
5. Hoses and wires: check each wire and hose for damage (fraying, binding, etc.);
6. Labels: labels should be easily readable and undamaged, affixed to the dumper in the locations as
shown in FIG. 8
on p. 13.
7. Drum clamps and springs: Inspect the clamps and clamp springs for damage deformation, looseness
of fit. See FIG. 2A & 2B
on p. 5. If a clamp cannot remain securely in place because the spring allows the
clamp to slide down the clamp rail, then the clamp will not prevent a drum from sliding out of the chute.
DO NOT use the drum dumper until the clamp springs have been replaced.
At least once per year, change the hydraulic oil if it becomes gritty or looks milky. Milky appearance is
caused by water in the oil. With the chute in the home position, drain the oil and replace it with either
Dexron transmission fluid or anti-wear hydraulic oil, viscosity grade 150 SUS at 100°F (ISO 32 cSt at 40°C).

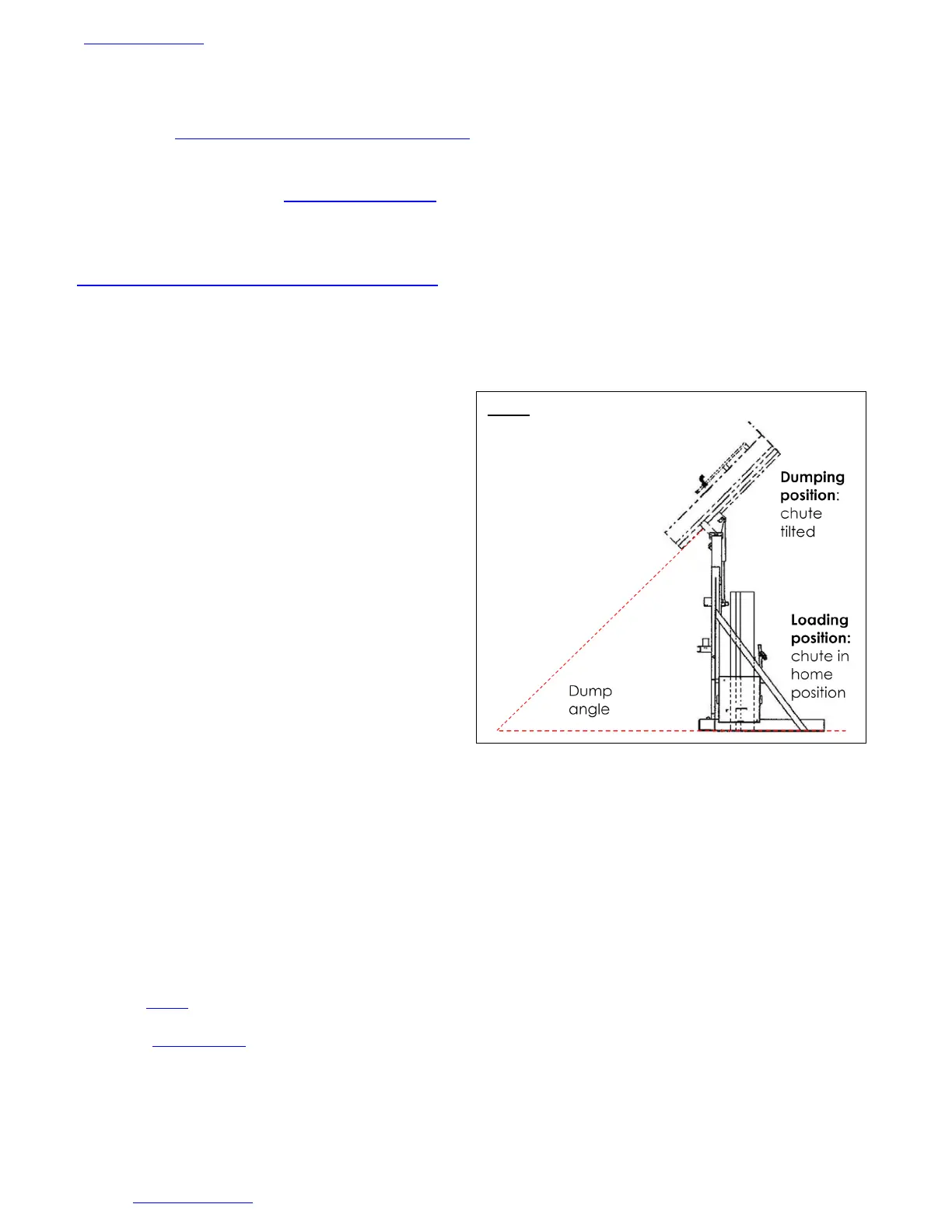

FIG. 4: Limit switch effect on dump angle
