OPERATING THE DRUM DUMPER (ALL MODELS)
Load the chute.
1. Place the drum in the chute: The drum
should rest against the back of the chute.
NOTE: Use only properly sized drums: HLD’s are
designed to dump open-top drums. Drum width
and height must be such that both drum clamps
can securely engage the lip of the drum. See
Fig.’s 2A and 2B.
2. Secure the drum to the chute with the
clamps: Adjust the position of the clamps on
the clamp rails to match the height of the
drum. Press down on the end of a clamp
spring. See Fig. 2B. Rotate the clamps until the
lip hooks are inside the drum. Press the clamps
down until they solidly contact the top of the
drum. Rotate the clamps so that the lip hooks
press against the inside of the drum lip.
3. Dump the container:
NOTE: Apply BOTH floor locks of portable
units BEFORE operating the chute.
a) Adjust the height of the chute/drum to
the height of the waste receptacle that
will receive the trash from the drum. To
raise the chute without tilting it, press the
RAISE LIFT portion of 4-point controller
button. See FIGS. 3A, 3B. The cylinders will
extend and elevate the chute only while
the operator continues to press the
button. The chute will maintain position
once the button is released.
b) To tilt the chute and dump the
contents of the drum, press the RAISE TILT
button to raise the chute to the dumping
position. The cylinders will extend and
raise the chute only while the operator
continues to press the button. The chute
will maintain its position as of the instant
the button is released.
NOTE: If the net weight of the drum and
its contents exceeds the maximum rated
load of the dumper, a relief valve
(incorporated into the hydraulic system)
will open. While the relief valve is open,
the hydraulic cylinders will not extend,
and therefore the chute will not be able
to elevate or dump.
4. Return the chute to the loading
position: press the LOWER TILT button on
the controller to return the chute to the
home position; then press the LOWER LIFT
to lower the chute to the loading
position.
5. Remove the emptied drum from the
chute.

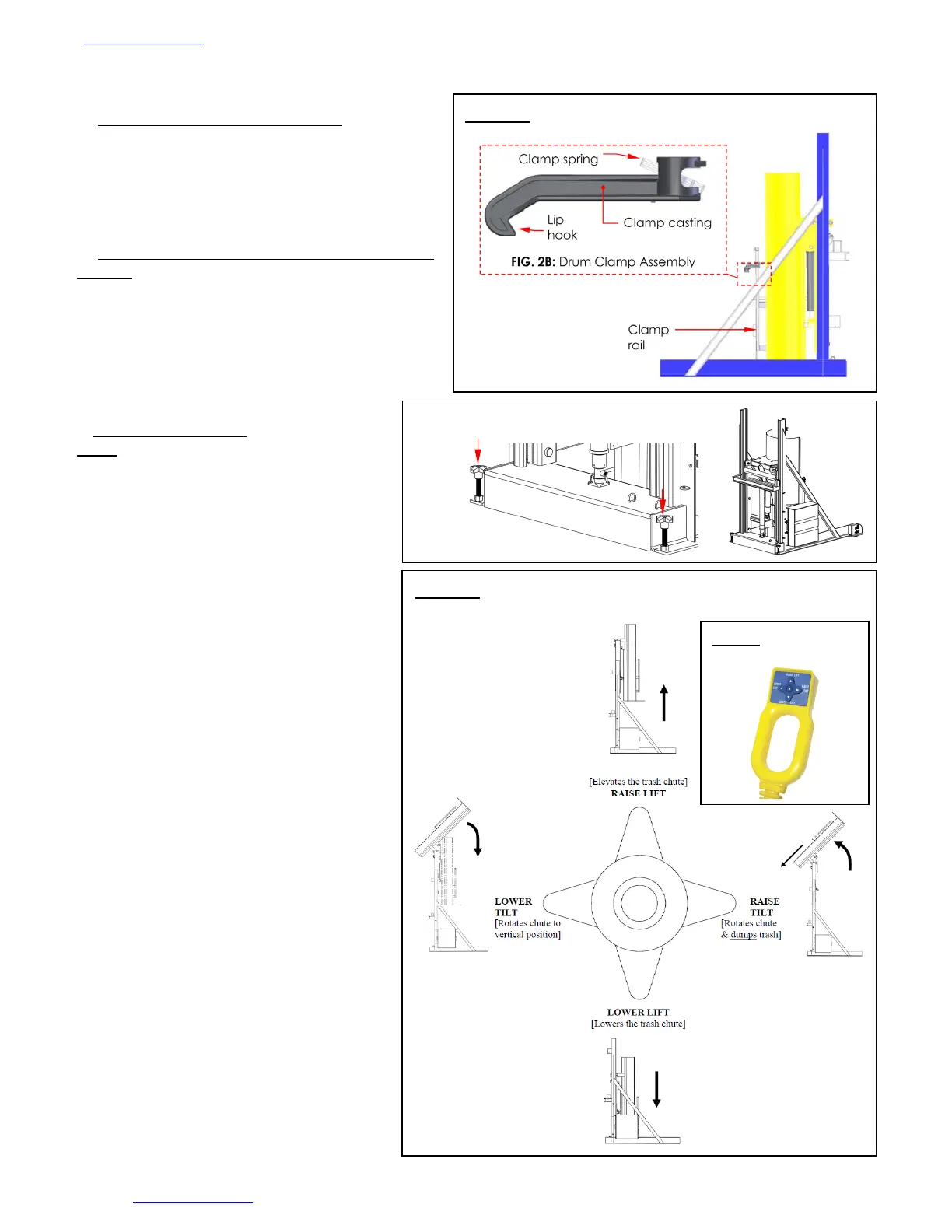

FIG. 2A: HLD side view
FIG. 3A: Pendant controller functions
4-point
controller
button
FIG 3B: Handheld
controller
Chute in
HOME
position
APPLY FLOOR LOCKS (PORTABLE UNITS)
Turn floor locks clockwise into
solid contact with ground
