Table of Contents 3/30/2020 HBD MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 9 of 21

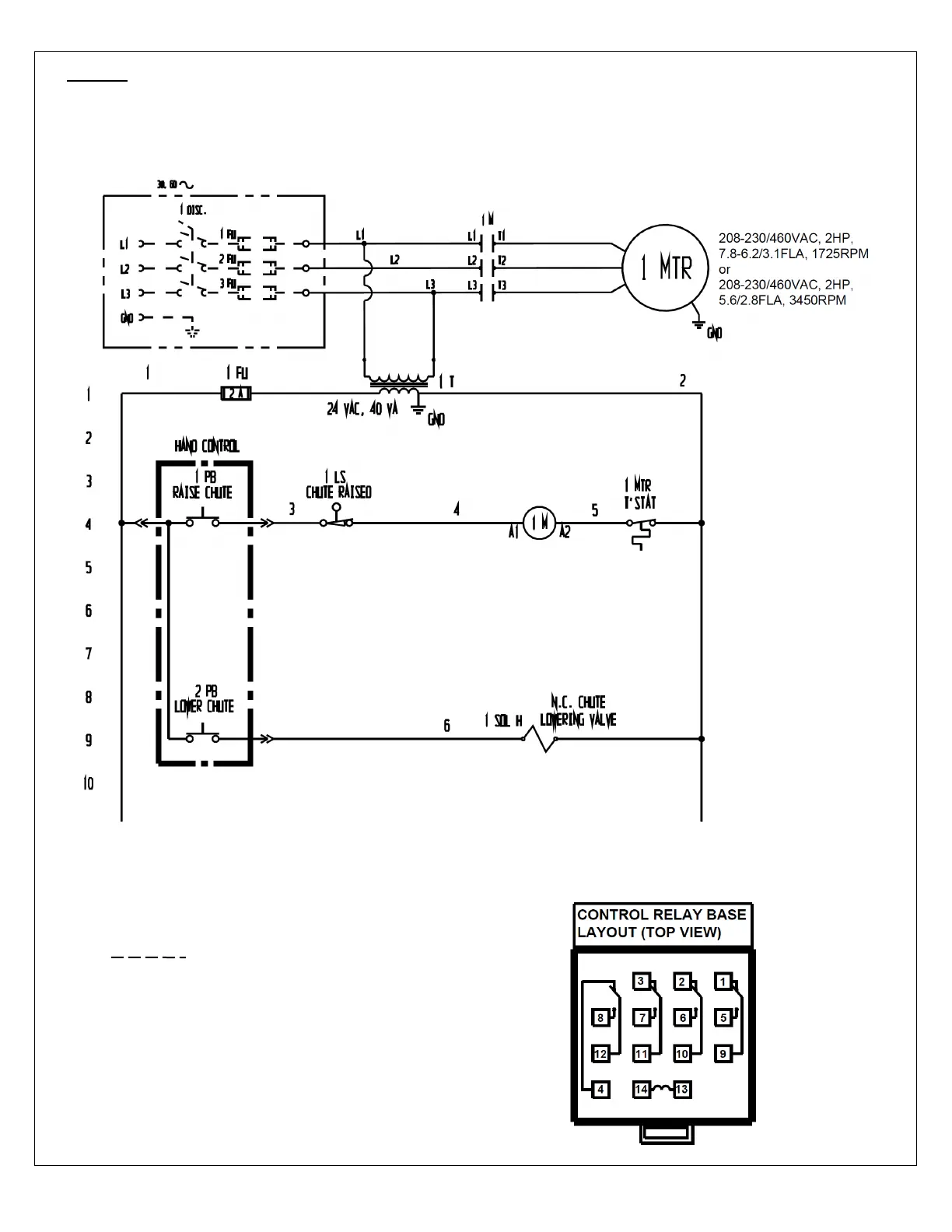

FIG. 3: 3-phase 208-230/460 VAC electrical circuit diagram for 2,000 & 4,000
capacity models (09124019 Rev. C)
NOTE: Overcurrent and short-circuit
protection should be provided
by the end user in accordance
with recommendations and
requirements in NEC (NFPA
70) and local codes.
NOTE: In this diagram, all components are represented with the chute in “home” location,
i.e. resting, lowered position.
Indicates wire and/or components
end-user must provide
