Table of Contents Rev. 7/24/2024 H-Hoppers MANUAL
Table of Contents Copyright 2024 Vestil Manufacturing Company Page 13 of 16
USING THE BUMP-AND-DUMP OPTION TO DUMP THE HOPPER
Vestil offers kit H-BD-L to equip standard H-series hoppers with a “Bump-&-Dump” capability. To dump
the hopper chute, unlock the release lever and either pull the release cable or use the bumper release
mechanism.
Step 1: Mount the hopper on the forks of your lift truck. Drive forward until the forks contact the ends of
the fork slots. Securely attach the carriage chain to the forklift carriage by wrapping the free end of the
chain around part of the carriage. Then, connect the quick link at the end of the chain to a link in the
chain. There should be little to no slack in the chain. Unlock the chute release mechanism by pulling the
finger tab until the latch lock disengages the latch bar. See diagrams included in Step 4 below.
Step 2: Store the handle of the release cable within reach of the forklift operator. For example, the
handle could be hooked to the frame of the roll cage.
NOTE: Make sure that there is slack in the cable. If the cable is taut, bumps or sudden stops while driving
might cause the chute to be released.
Step 3: Raise the forks and slightly tilt the mast back/towards the cab. Only raise the forks a few inches
above the ground. Drive the forklift to the trash dumpster. Then, elevate the hopper above a side of the
dumpster. The dumping axis of the hopper should be within/inside the dumpster.
Step 4: Dump the chute using the bumper release mechanism. Slowly drive forward until the bumper
release lever presses against the side of the dumpster. Stop driving forward as soon as the hopper is
released.
Step 5: Return the chute to the latched position. Tilt the forklift mast toward the cab; then back away
from the dumpster. Lower the forks until the hopper contacts the ground; then slowly lower the forks the
rest of the way to the ground until the chute latches to the base frame. Confirm that the chute is
properly latched by raising the forks. The chute should not rotate. If necessary, lower the forks
completely and manually latch the chute to the frame by pressing down on the back of the chute.
Alternatively, use the side of the dumpster to pivot the chute back onto the base frame.
Step 6: Lock the latch by pressing the latch lock over the top of the latch bar.

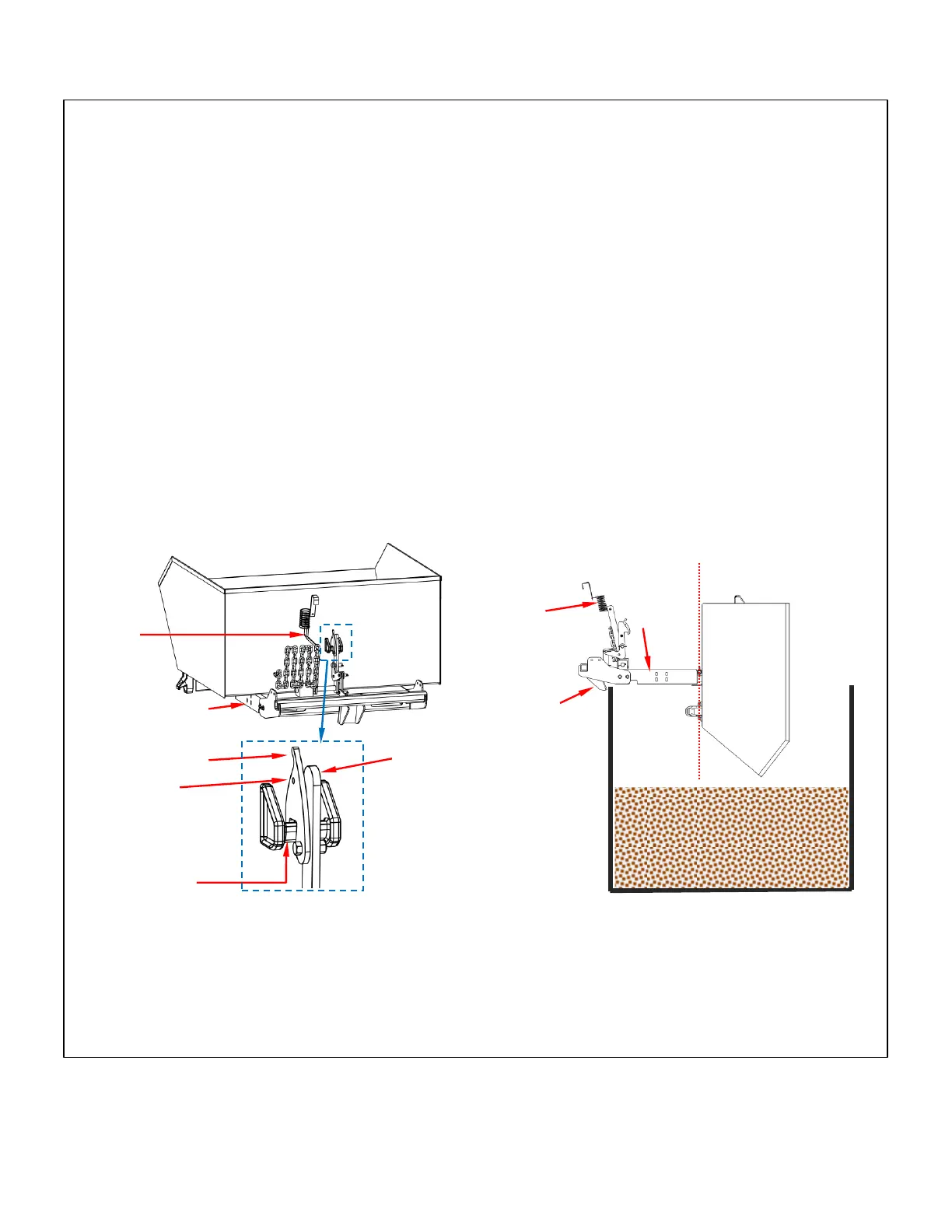

Manual
chute
release
lever
Base frame
Front end
of chute
Front end
of chute
Back end
of chute
Base
frame
Waste
material
Finger tab of
latch lock
Latch
lock
Latch
lever
Latch
bar
Release
cable and
handle
Bumper
release
lever
Dumping
axis
