Table of Contents Rev. 7/24/2024 H-Hoppers MANUAL
Table of Contents Copyright 2024 Vestil Manufacturing Company Page 11 of 16

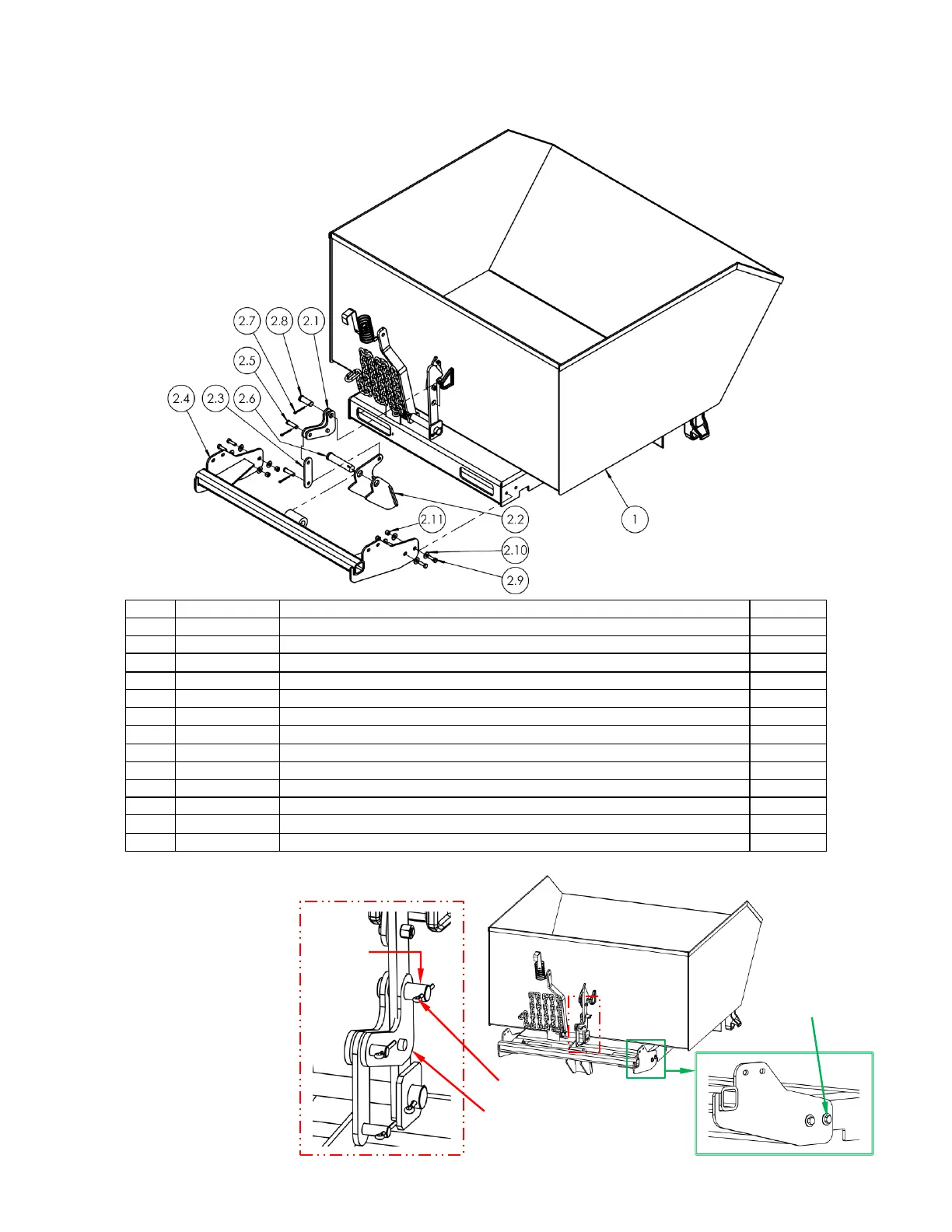

H-BD-L (BUMP-&-DUMP) OPTION
EXPLODED VIEW AND BILL OF MATERIALS
37-006-183
Item
Part no.
Description
Quantity
1*
See p. 4-10
H-HOPPER ASSEMBLY (see appropriate Exploded View on p. 4-10)
1
2
37-537-023
SUB-ASSEMBLY, BUMP AND DUMP
1
2.1
37-516-009
WELDMENT, BRACKET, ADAPTOR
1
2.2
37-537-024
WELDMENT, BUMPER RELEASE
1
2.3
37-016-082
BRACKET, LI NKAGE
1
2.4
37-514-119
WELDMENT, FRAME REAR HOOP
1
2.5
21-112-003
PIN, Ø1/2 X 1-15/16 LG RETAINING CLEVIS
2
2.6
33-112-023
PIN, CLEVI S
1
2.7
65107
COTTER PIN, ZINC FINISH, Ø5/32" X 2"
4
2.8
28-112-043
PIN, Ø3/4 X 2" LG CLEVIS, Z-PLATED
1
2.9
11107
HEX BOLT, GRADE A, ZINC FINI SH, 3/8"-16 x 1-1/4"
4
2.10
33008
FLAT WASHER, LOW CARBON, USS, ZI NC PLATED, 3/8"
8
2.11
37024
NYLON I NSERT LOCK NUT, GRADE 2, ZINC FINISH, 3/8"-16
4
INSTALLING THE H-BD-L OPTION
Attach the Bump &
Dump option to the base
frame weldment using the
3/8” fasteners shown in the
Exploded View above. Then,
attach the adaptor bracket
(37-516-009) to the latch
lever with the clevis pin (33-
112-023). Insert cotter pin
(65107) through the pin hole
in the clevis pin. Bend the
arms of the cotter pin
around the clevis pin.
*
Adaptor bracket
Cotter pin
Clevis
pin
Hex bolt
(11107) with
flat washer
(33008); fasten
on other side
with flat
washer and
lock nut
(37024)
