TABLE OF CONTENTS 5/14/2025 GR-H2R-DI, MANUAL
TABLE OF CONTENTS Copyright 2025 Vestil Manufacturing 4 of 10

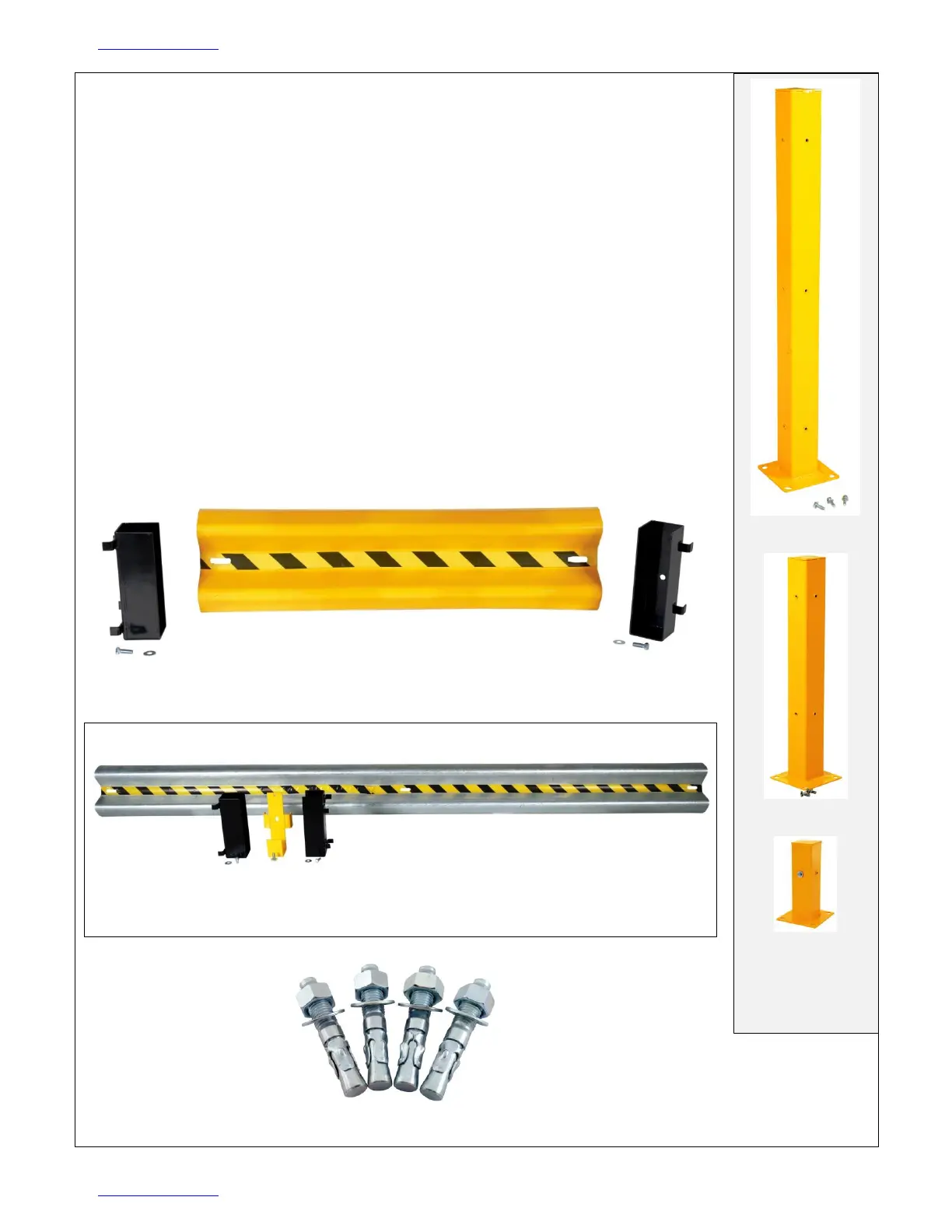

GUARDRAIL SYSTEM COMPONENTS
The GR-H2R-DI series guardrail system includes the following components:
Guardrail Sections: Available in lengths from 3ft to 12ft with slotted
mounting holes for attachment to brackets. Guardrail sections are 5.5"
wide and 12.8125" tall.
Posts: GR-TP series posts (sold separately) are required for mounting the
guardrails. Posts are available in various heights (e.g., 18in, 42in, 60in,
72in). Each post includes a base plate with bolt holes for anchoring to
the ground.
Brackets: Mounting brackets are included with the posts for attaching
the guardrails. For longer rails (9ft to 12ft), a J-bracket is used for center
support.
Hardware: Rail-mounting hardware (bolts, washers, nuts) is included with
the posts for securing the brackets to the posts and the guardrails to the
brackets.
Anchor Kits: Sold separately for anchoring the posts to the ground.
Note: Check the guardrail, posts, and brackets for any product identification or
safety warning labels. Ensure these labels remain legible and intact while in
service.
Drop-in brackets (black) with 1/2”-13x1
1
/
2
” bolt &1/2” flat washer.
J-bracket (yellow) with 1/2”-13x1
1
/
2
” bolt &1/2” flat washer.
Drop-in brackets (black) with 1/2” hardware (1/2”-13x1
1
/
2
” bolt
&1/2” flat washer) for fastening brackets to posts.
Guardrail section, 9’–12’ (galvanized model shown)
Guardrail section, 3’–8’ (yellow powder coat
model shown)
GR-H2R-DI-TP60
GR-H2R-DI-TP42
GR-H2R-DI-TP18
GR-H2R-DI-TP72
not shown
AS-344 (1 anchor) & AS-344-4PK (kit of 4 anchor bolts):
¾ in. x 4in. wedge anchor bolts (not included)
