Table of Contents Rev. 9/25/2023 FMDL MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 4 of 20

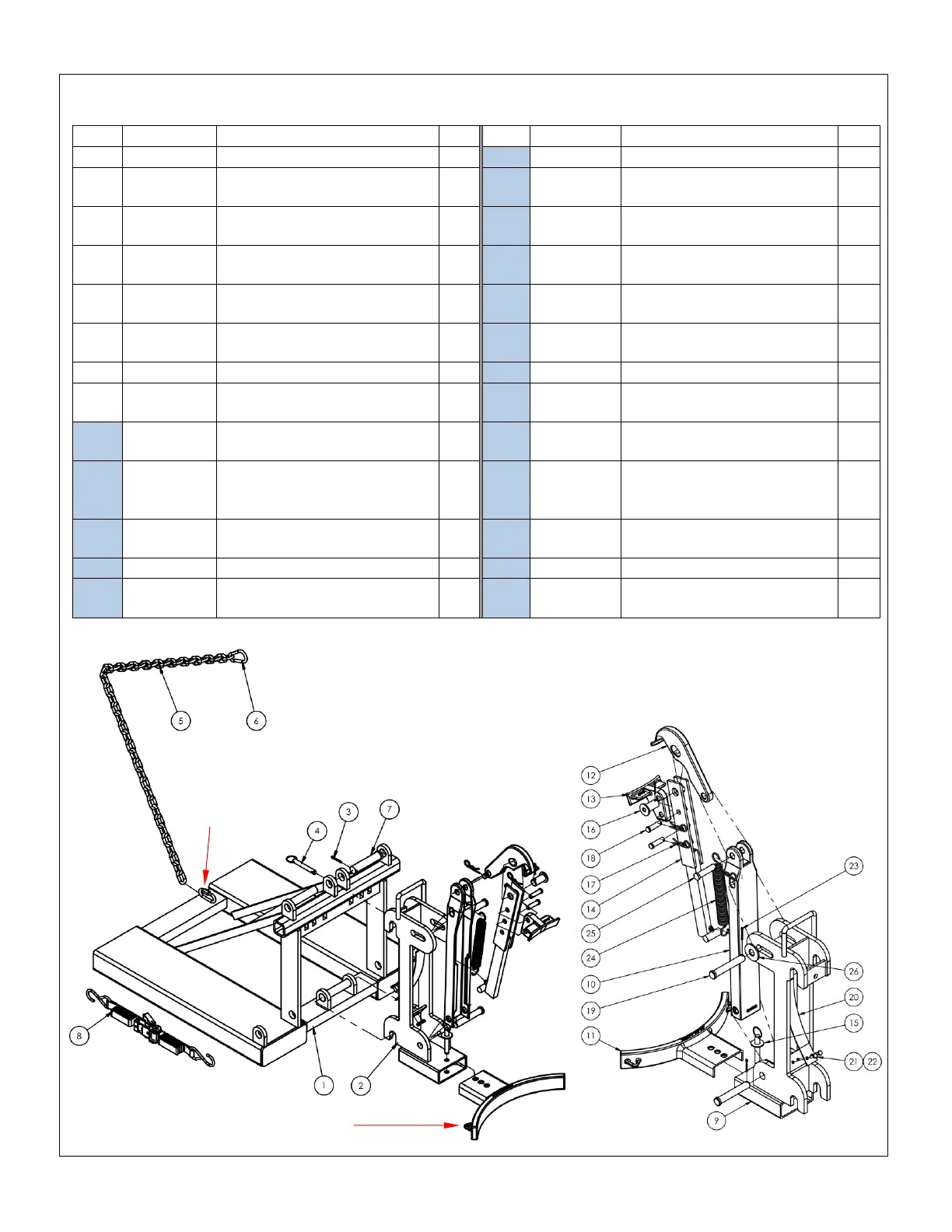

FMDL-1 EXPLODED VIEW AND BILL OF MATERIALS (40-006-006)
[NOTE: Part no. 40-514-022 is the “Drum gripper assembly” comprised of items 9-26 (shaded).]
Item
Part No.
Description
Qty.
Item
Part No.
Description
Qty.
1
40-514-008
WELDMENT, FRAME
1
14
40-514-011
WELDMENT, FRAME
1
2
40-514-022
ASSEMBLY, FRAME
1
15
40-612-006
WELDMENT, PIN, SADDLE
RETAINER
1
3
65125
COTTER PIN Z PLATED, 3/16"
x 1 1/2"
1
16
40-612-004
PIN,CLEVIS
1
4
99-112-004
PIN, SELF LOCKING QUICK
RELEASE, GENERAL
1
17
45286
#11 HITCH PIN CLIP, Ø1/8"
X 2 5/8 LG
3
5
09-145-018
CHAIN, 5/16" x 56" LG
1
18
21-112-003
PIN, Ø1/2 X 1-15/16 LG
RETAINING CLEVIS
2
6
08-145-041
SPECIALTY HARDWARE,
SNAP HOOK, Ø5/16
1
19
28-112-031
Ø3/4 x 4 1/2 LG CLEVIS PIN
2
7
33-112-023
PIN, CLEVIS
1
20
40-014-029
FRAME, BAR, FORMED
1
8
40-145-008
STRAP WITH RATCHET, 6'
LONG, 2 HOOKS
1
21
11003
HEX BOLT, GRADE A, ZINC
PLATED, 1/4-20 X 3/4"
2
9
40-514-006
WELDMENT, FRAME
1
22
37018
NYLON LOCK NUT,GRADE
2, ZINC FINISH,1/4"-20
2
10
40-014-054
FRAME, CASTING
1
23
65078
EXTENDED PRONG COTTER
PIN, ZINC FINISH, 1/8" x 1
1/2"
3
11
40-014-093
FRAME,DRUM
GRIP,CASTING
1
24
40-146-001
SPRING, TENSION
1
12
40-016-052
BRACKET,CASTING
1
25
40-112-026
CLEVIS PIN, Ø5/8" x 2 1/2"
1
13
40-016-053
BRACKET,CASTING,FMDL
SERIES
1
26
33018
USS FLAT WASHER, Z
PLATED, Ø 3/4"
1
NOTE: In order for the Eagle Beak™
mechanism to work properly, the
drum and its contents must weigh
AT LEAST 50 lb. (~22.7kg).
Attach hook of
ratchet strap
Quick
link
Exploded View
of 40-514-022
