ASSEMBLING THE CRANE
WARNING
An improperly assembled crane might malfunction and cause serious personal injuries. Read this
manual in its entirety before assembling the crane. Only assemble the crane if you fully understand the
assembly procedure.
• ONLY qualified personnel should assemble the crane.
• DO NOT modify the crane in any way unless and until you receive written approval from Vestil.
• DO NOT use the crane if you notice damage to or deformation of the beam, uprights, or any
component of either of the leg assemblies. Using the crane despite weakness of a structural
component could result in crane collapse.
• DO NOT use the crane if any of the hardware (bolts, nuts, clamps, etc.) is damaged; you could
sustain serious injuries if the crane collapses. Contact Vestil to order replacement parts.
• DO NOT use the crane if any of the casters is damaged. A damaged caster may cause the crane to
tip over while hoisting or supporting a load.
NOTICE
• Modifying the crane in any way without first receiving written approval of the modification from Vestil
automatically voids the limited warranty.
• The crane is designed for both indoor and outdoor use. However, it should be sheltered from the
weather when not in use.

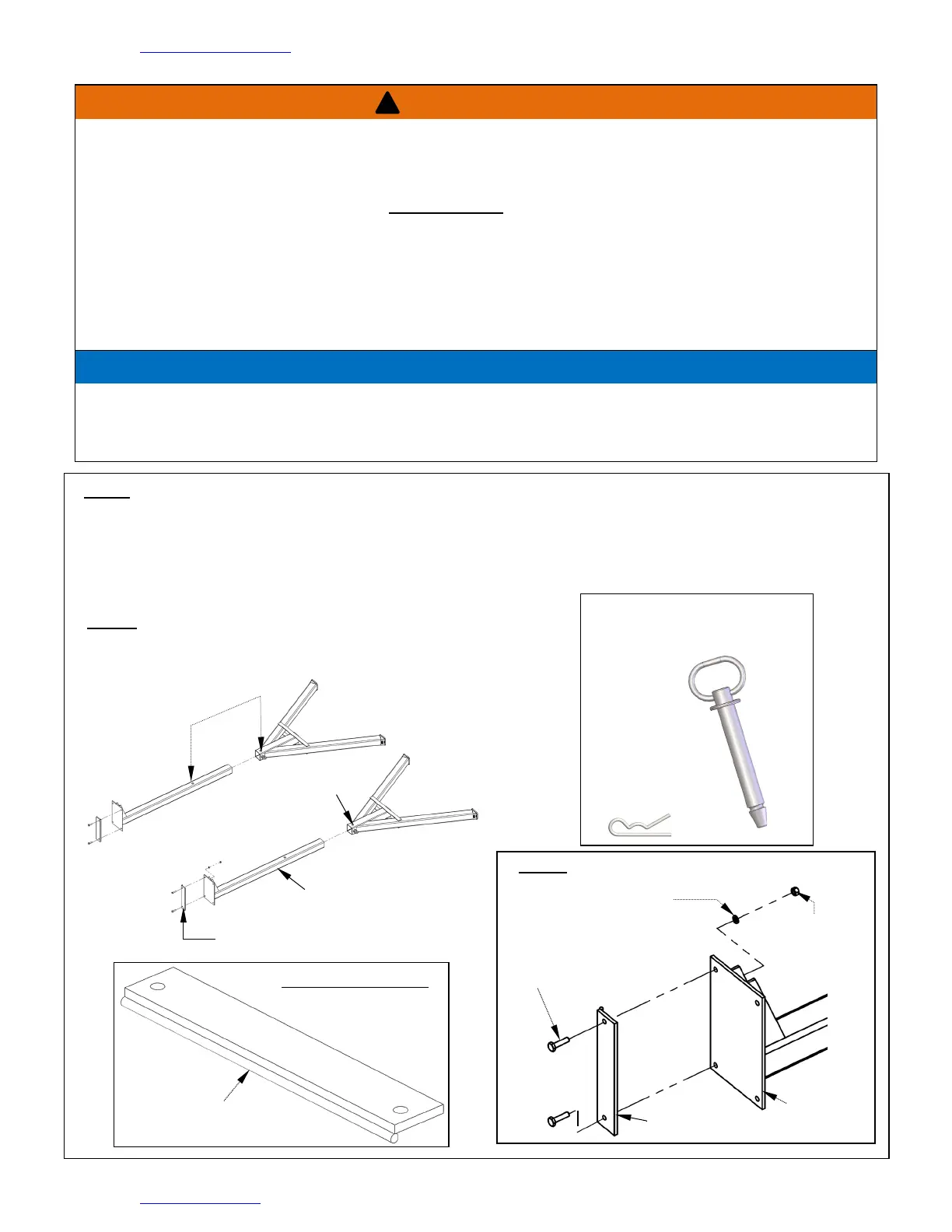

Step 1: Fasten the upright weldments to the leg assemblies; then fasten a beam clamp to the beam
bracket of each upright. Lay the leg assemblies flat on the ground and slide the uprights into the
receivers. Align the pinholes in the uprights with the pinholes in the leg assemblies as shown in Fig. 1A
below. Pin each upright to a leg assembly with an axle pin with chain.
Fig. 1B: Beam Clamp-to-Bracket Connection
½ in. -13 x 2in.
A325 structural
bolt (
19211-B)
Welded beam clamp
½ in. -13 A325
structural nut
19211-A
½ in. zinc-plated lock
washer (33626)
Fig. 1A: Upright-to-Leg Assembly Connections
Pin upright to
leg assembly
Axle pin (chain not shown)
(part no. 28-112-027)
Pin hole in
receiver
Beam clamp
Hitch pin
Part no. 28-112-008
Welded beam clamp
Shim
Beam
bracket
Upright
!
