TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 29 of 35
valve will close and prevent further platform descent. Platform
lowering speed is preset at the factory and not to exceed 30 fpm.
In the event of a hydraulic line failure, a velocity fuse internal to
the cylinder prevents the platform from lowering.

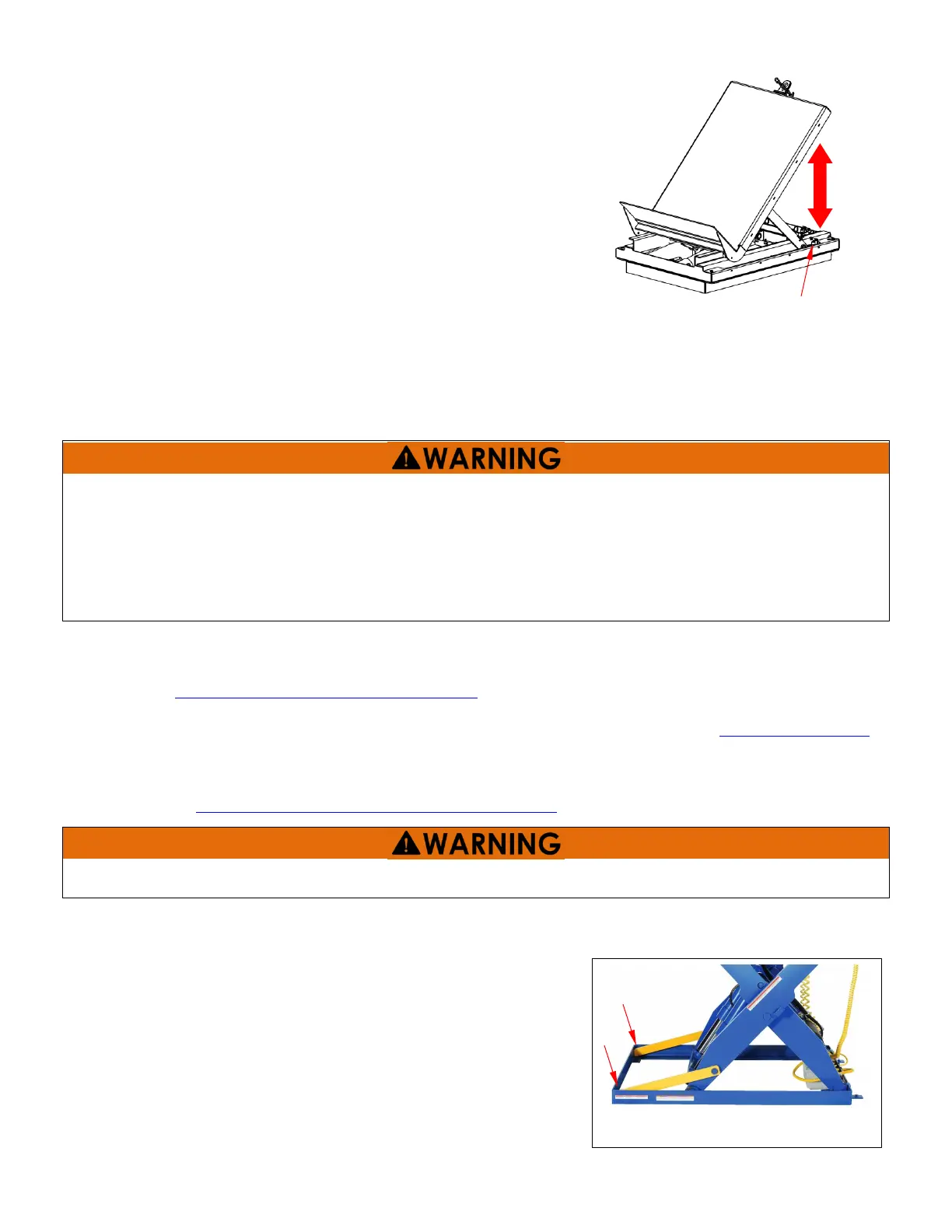

Press the TILT RAISE pushbutton to energize the power unit and
elevate the free end of the tilting platform. The free end rises only
while the pushbutton is pressed. When the pushbutton is released,
the platform will stop and hold its position. At the platform’s
maximum tilt angle (45° or 90° for EHLTT-H models), activation of a
tilting platform upper limit switch (see diagrams on p. 17) causes
the motor to turn off. Each EHLTT lift table is provided with
hydraulic overload protection to prevent it from attempting to
raise a load that exceeds its rated capacity.
Pressing the TILT LOWER pushbutton also activates the motor because the cylinder is double-acting
(powered extension and retraction). Press the button to lower the tilting platform. Release the
pushbutton to stop the motion of the platform. In the event of a hydraulic line failure, a velocity fuse
internal to the cylinder will prevent the tilting platform from lowering. A tilting platform lower limit switch
turns off the motor when the tilting platform reaches its resting/home position.
Always watch the area around the table & any load on the platform when it is in operation.
Never use the lift table unless it is in SATISFACTORY CONDITION. If any damage or unusual noise is observed, if it
is in need of repair, or if any other malfunction is observed. Notify your supervisor or maintenance personnel.
Keep clear of the machine when it is in operation. Before operating the lift table, make certain no part of any
person or object is under the platform.
Guards shall be in place before operating the lift table.
Guards cannot protect against every possible condition, and should not be considered a substitute for good
judgment and care in use, loading, handling, storage, etc. of the lift table.
INSPECTING AND MAINTAINING THE TABLE
Regular maintenance is essential for maximizing the service life of this product. Compare all inspection
results to the RECORD OF SATISFACTORY CONDITION. The table should only be used if it is in satisfactory
condition. If an inspection reveals any changes from satisfactory condition, repair it before returning it to
service. Only use manufacturer-approved replacement parts. DON’T GUESS! Contact TECHNICAL SERVICE if
you have questions that are not addressed in these instructions or if you are uncertain how to address an
issue discovered during an inspection. Technical Service can be contacted by calling (260) 665-7586 and
asking for the Service and Parts Department or by submitting your questions through Vestil’s online parts and
service portal at https://www.vestil.com/page-parts-request.php.
Identify all potential hazards and comply with applicable safety procedures before beginning work.
Unload the table & install the maintenance stops before inspecting or servicing the lift table. See below.
Only qualified individuals trained to understand mechanical devices, electrical and hydraulic circuits, and the
hazards associated with them, should attempt troubleshooting or repair of this equipment.
Inspection procedures.
Before inspecting or maintaining this lift table:
Read and understand these maintenance procedures.
Unload the table. Do not service a loaded table.
Deploy both maintenance props. To use the maintenance stops,
raise the platform to its maximum height. Rotate the free ends of
the props into contact with the base frame. Lower the platform until
the props solidly contact the corners of the base frame. The
platform is now supported by the props rather than the lifting
cylinder(s).
Disconnect power and follow established lockout/tagout policies as required.
Lower platform until props contact
corners of base frame.
TILT
RAISE
TILT
LOWER
Tilting platform upper
travel limit switch
