TABLE OF CONTENTS Rev. 6/5/2024 EHLTD MANUAL
TABLE OF CONTENTS Copyright 2024 Vestil Manufacturing Co. Page 28 of 35

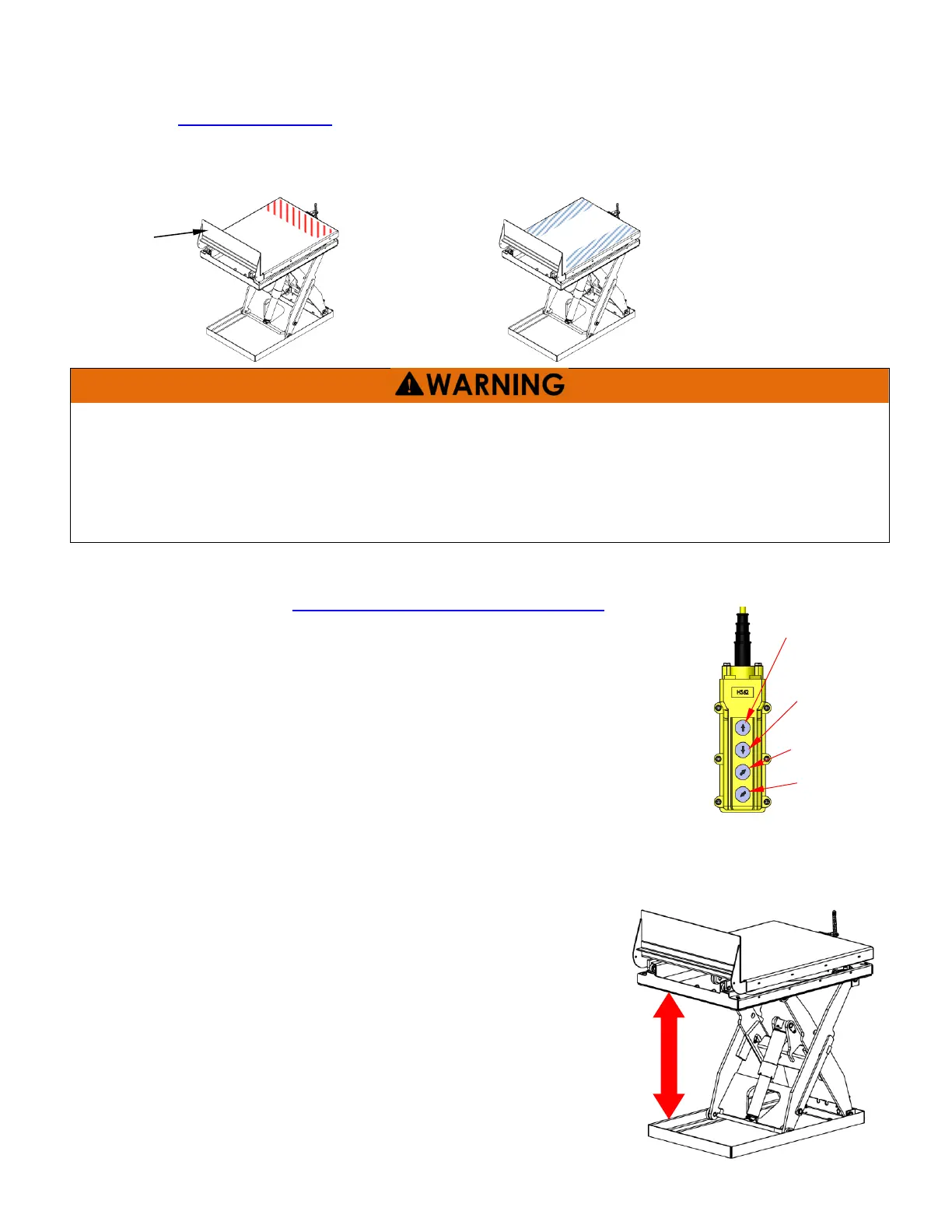

Loading the platform.
The table’s load rating/capacity is provided on label 1153, which is applied to the hinged end of the
platform. See LABELING DIAGRAM on p. 34. This indicates the net capacity of the table for a static load,
centered and evenly distributed on the platform. All loads placed on the platform must rest against the
load support. For off-center loads, the lift table’s maximum load weight is 50% of the rated capacity for end
loading (either end), and 50% for side loading (either side). NOTE: Do not drop loads onto the platform.
DO NOT exceed the lift table’s load ratings. Injury to personnel or permanent damage to the lift table can
result from exceeding the listed capacity. Note: Take into account the weight of any equipment added to the
platform by third parties when determining the maximum working load to be placed on the platform.
The platform rollers are not captured. DO NOT overhang any load over the side of the platform. A
cantilevered or overhanging load at the hinged end can cause the platform to tilt and dump the load. For
applications involving side or end edge loading, consult the factory.
This lift table is not approved for lifting personnel.
Operation.
At the beginning of every shift, inspect the perimeter toe guard. Confirm
satisfactory operation. See RECORD OF SATISFACTORY CONDITION. Raise the
platform by pressing the LIFT RAISE button. Push and hold a section of the
perimeter toe guard up against the underside of the platform. While pressing the
toe guard against the platform, press the LIFT LOWER button. The platform should
not move if the toe guard system is operating correctly. Perform this check on all
four sides of the platform.
Check the condition of the guards, controls, scissor mechanism, hydraulic lines,
and limit switches. If any item is in need of repair or otherwise contributes to an
unsafe condition, remove the lift table from service until it has been restored to
satisfactory condition.
The standard EHLTTT scissor lift table is provided with a handheld 4-pushbutton
controller and either an internally, or externally, mounted electric-hydraulic power
unit. NOTE: Lift tables with external modular power units have pushbutton controls
and a key switch in the power unit cover. The key switch must be turned to the
“ON” position to operate the controls.
Press the LIFT RAISE pushbutton to energize the power unit and
elevate the platform. The platform ascends only while the
pushbutton is pressed. If the pushbutton is released, the platform
stops and holds its position. At maximum platform elevation, a
limit switch shuts off the motor. Each EHLTT lift table is provided
with hydraulic overload protection. This feature prevents damage
that might otherwise occur by attempting to lift a load that
exceeds the rated capacity of the table.
Lower the platform by pressing the LIFT LOWER pushbutton. The
platform descends by gravity (pump motor does not run).
Release the pushbutton to stop the descent of the platform. If the
perimeter toe guard is activated as the platform descends, the
End loading
max. load
weight = 50%
of rated
capacity.
Side-loading max. load
weight = 50% of rated
capacity.
LIFT RAISE
LIFT
LOWER
TILT RAISE
TILT
LOWER
LIFT
RAISE
LIFT
LOWER
Load
support
