TABLE OF CONTENTS Rev. 11/28/2022 EHLT-E MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Co. Page 8 of 17

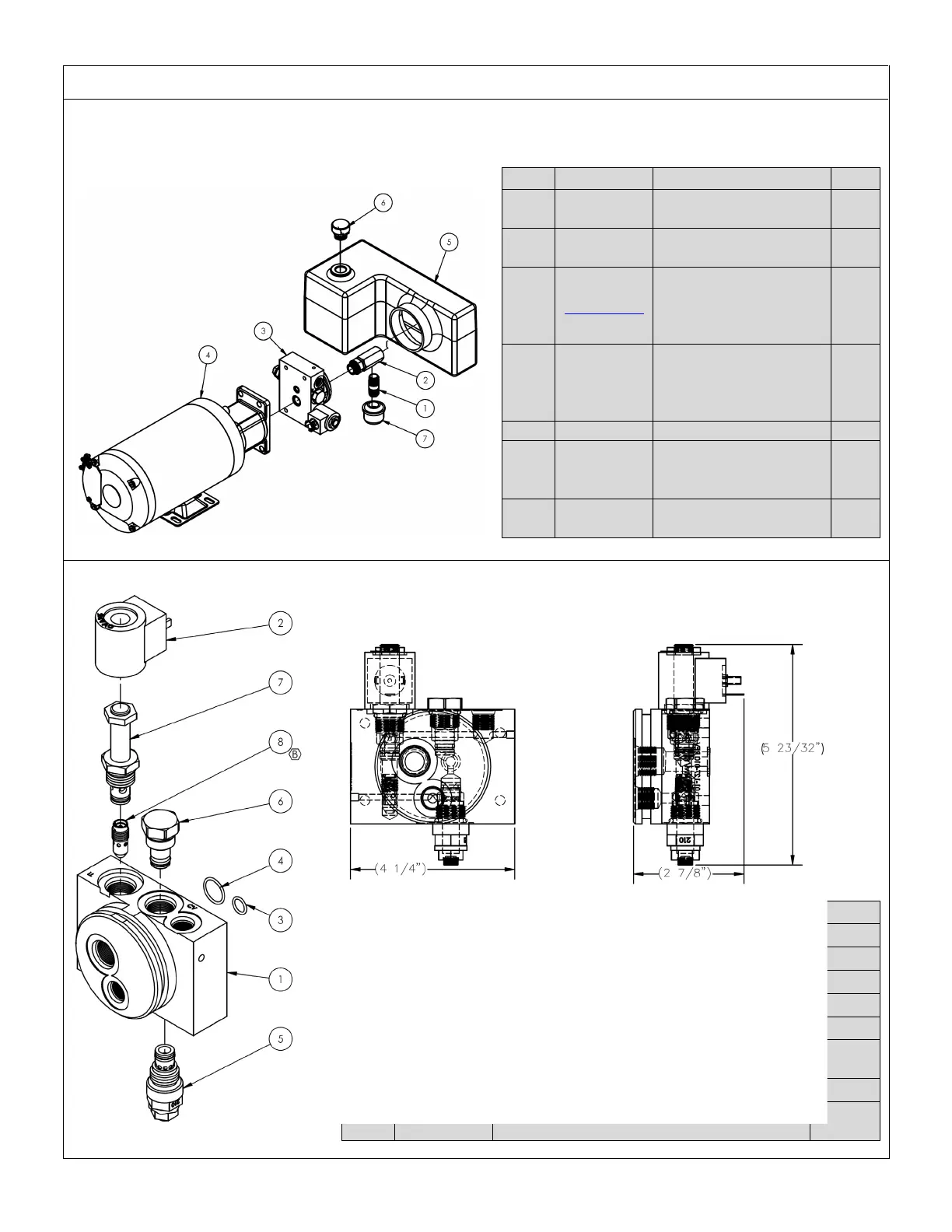

Power Unit Subassembly.
Power Unit: 24V, 1.4 HP, 3 PH, 1725RPM (99-160-277).
Representative diagram. Contact the factory for replacement parts for your specific model. ALWAYS have
the product serial number or model number on hand
when calling the factory.
ITEM
PART NO.
DESCRIPTION
QTY
1 99-031-061
ACCESSORIES, PIPE,
NIPPLE, 3/8" X 1 1/2"
1
2 99-116-001
SUCTION FITTING,
MINI MANIFOLD
1
3 01-627-013
SUB-ASSEMBLY,
MANIFOLD, 24V
COIL, LIFT-HOLD-
LOWER, 1.0 GPM
1
4 99-137-048
MOTOR/PUMP, 208-
230/460V AC, 3 PH,
1.4 HP, 1725 RPM,
0.122 DISP
1
5
99-023-114
RESERVOIR, 11 x 5 x 5
1
6 99-116-215
HYDRAULIC FITTING,
BREATHER, 1/2" NPT,
PLASTIC PMB
1
7 99-116-237
SUCTION STRAINER,
38" NPT
1
Manifold Subassembly (01-627-013 Rev. B).
ITEM
PART NO.
DESCRIPTION
QTY
1
01-127-010
MANIFOLD, L-H-L
1
2
99-034-008
COIL WITH DIN CONNECTOR
1
3
99-144-008
O-RING, MANIFOLD, 1/2" OD
1
4
99-144-009
O-RING, MANIFOLD, 3/4" OD
1
5
99-153-006
VALVE, PRESSURE RELIEF, 210 BAR
1
6 99-153-011
CHECK VALVE, SIZE 08, NOSE-IN/SIDE-
OUT
1
7
99-153-015
VALVE SOLENOID, STANDARD
1
8
99-153-
038-001
FLOW CONTROL, PRES. COMP., 1.0 GAL. 1
