TABLE OF CONTENTS Rev. 11/28/2022 EHLT-E MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Co. Page 16 of 17

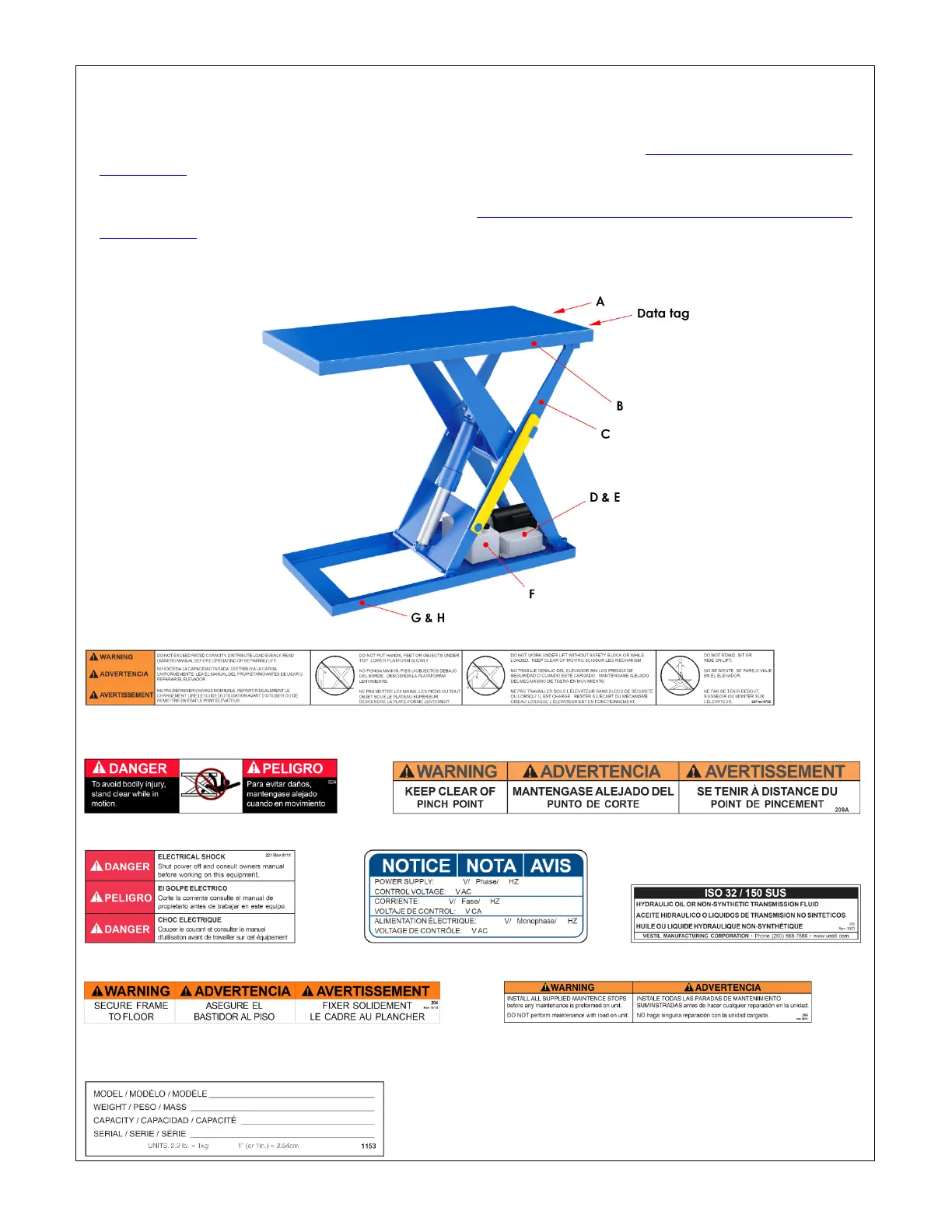

LABELING DIAGRAM
The lift table should be labeled as shown in the diagrams. However, label content and location
are subject to change so your product might not be labeled exactly as shown. Thoroughly
photograph the lift table when you first receive it as discussed in the
RECORD OF SATISFACTORY
CONDITION section on p. 11. Make sure that your Record includes a photograph of each label.
Replace all labels that are or later become damaged, missing, or not easily readable (e.g. faded).
To order replacement labels, contact the TECHNICAL SERVICE AND REPLACEMENT PARTS
DEPARTMENT online at http://www.vestilmfg.com/parts_info.htm. Alternatively, you may request
replacement parts and/or service by calling (260) 665-7586 and asking the operator to connect you
to the Parts Department.
A: Label 207 applied to rear flange of platform
B: Label 824 applied to side flange of C: Label 208 applied on both outer scissor legs
platform on both sides
D: Label 221 applied to junction box E: Label 248 Applied to junction box F: Label 206 top of oil reservoir
G: Label 204 both sides of base frame H: Label 269 both sides of base frame
Data Tag: Label 1153 covered with 770
applied to rear flange of platform
