Rev. 9/15/2016 COLV-4, MANUAL
Copyright 2016 Vestil Manufacturing Co. Page 5 of 8
Installation Instructions:
Follow steps 1-3 to properly assemble and install this crossover ladder. Numbers in parentheses correspond to
item numbers in the exploded parts diagrams on p. 3-5.
3
/
8
” – 16 x
3
/
4
”
Step 1: As shown in the diagrams below, attach the deck (1) to the step segments (3) by inserting the side rails into
the rail sockets. Clamp the rails in the sockets with
3
/
8
” – 16 x
3
/
4
” bolts.

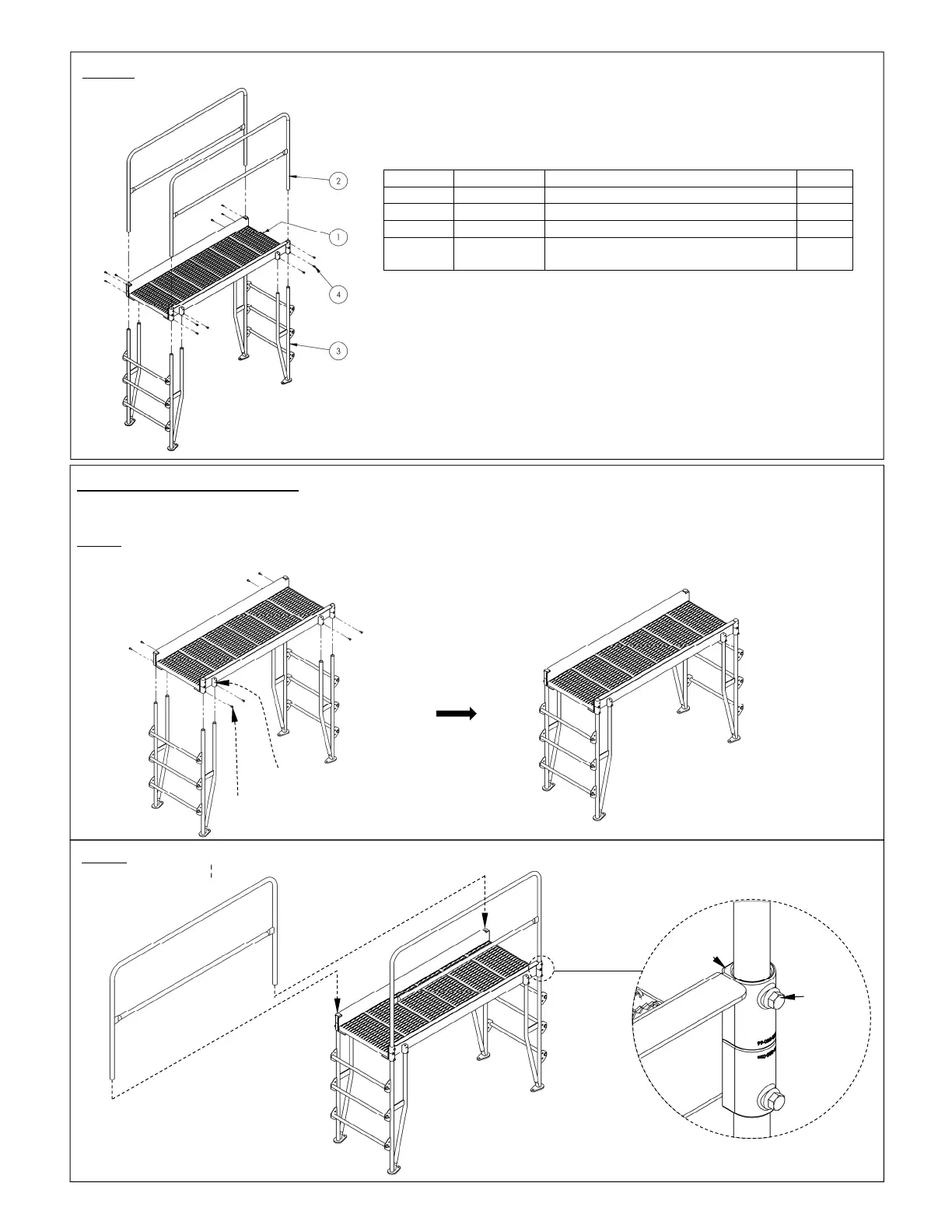

FIG. 5: COLV-4-46-56 exploded parts diagram and bill of materials
Item no. Part no. Description Qty.
1 44-513-024 Weldment, deck, platform 6-step 1
2 44-524-177 Weldment, handrail, 6-step platform 2
3 44-647-290 Weldment, steps, vertical 2
4 11103
Hex bolt, grade A, zinc plated,
3
/
8
” – 16
x
3
/
4
”
12
Rail socket
Step
segment
Handrail
Tighten
bolt
against
handrail
Handrail
socket
Step 2: Install the handrails. Insert the legs of the handrails into the handrail sockets. Secure the connections with
3
/
8
” – 16 x
3
/
4
” bolts.
