Rev. 9/15/2016 COLV-4, MANUAL
Copyright 2016 Vestil Manufacturing Co. Page 4 of 8

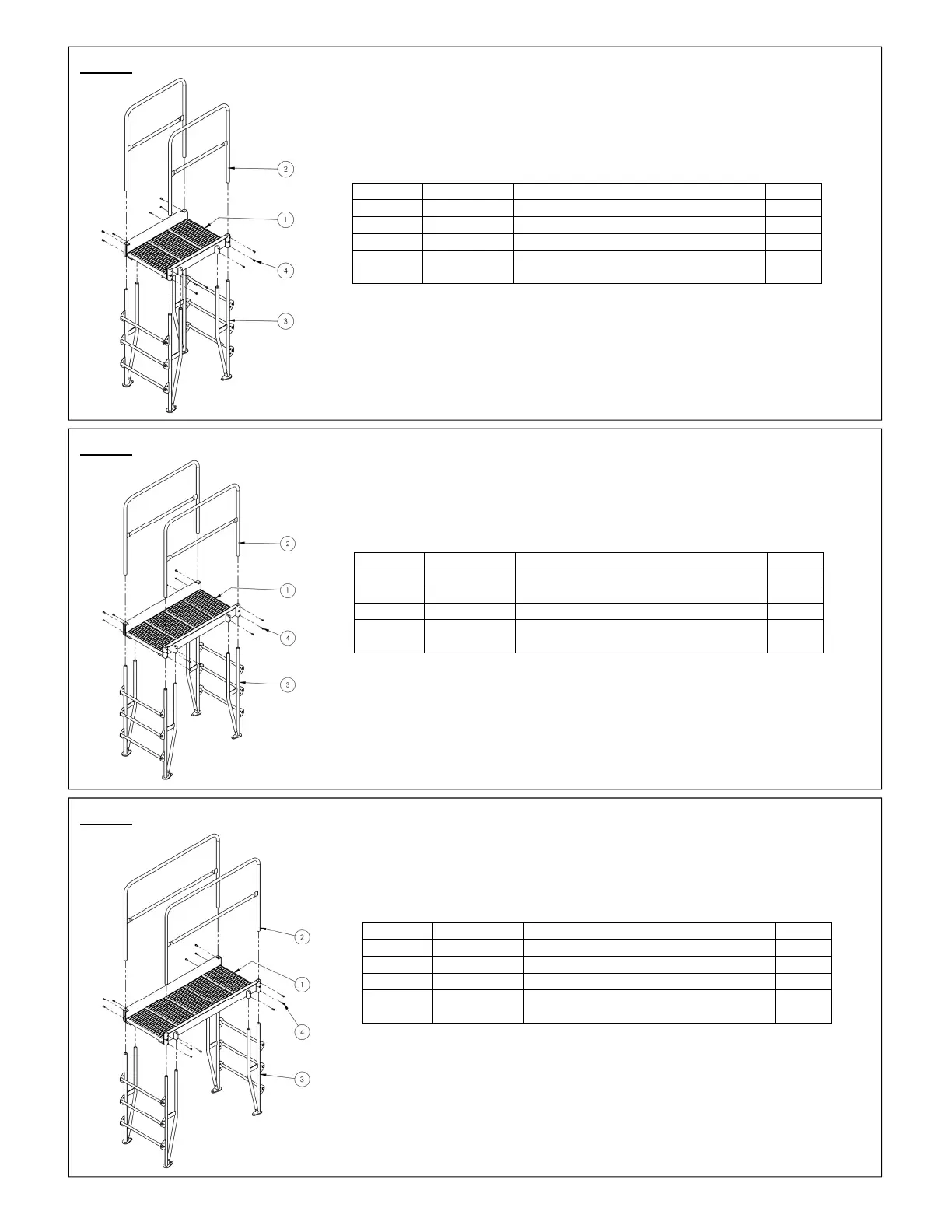

FIG. 2: COLV-4-46-20 exploded parts diagram and bill of materials
Item no. Part no. Description Qty.
1 44-513-021 Weldment, deck, platform 3-step 1
2 44-524-174 Weldment, handrail, 3-step platform 2
3 44-647-290 Weldment, steps, vertical 2
4 11103
Hex bolt, grade A, zinc plated,
3
/
8
” – 16
x
3
/
4
”
12
FIG. 3: COLV-4-46-32 exploded parts diagram and bill of materials
FIG. 4: COLV-4-46-44 exploded parts diagram and bill of materials
Item no. Part no. Description Qty.
1 44-513-022 Weldment, deck, platform 4-step 1
2 44-524-175 Weldment, handrail, 4-step platform 2
3 44-647-290 Weldment, steps, vertical 2
4 11103
Hex bolt, grade A, zinc plated,
3
/
8
” – 16
x
3
/
4
”
12
Item no. Part no. Description Qty.
1 44-513-023 Weldment, deck, platform 5-step 1
2 44-524-176 Weldment, handrail, 5-step platform 2
3 44-647-290 Weldment, steps, vertical 2
4 11103
Hex bolt, grade A, zinc plated,
3
/
8
” – 16
x
3
/
4
”
12
