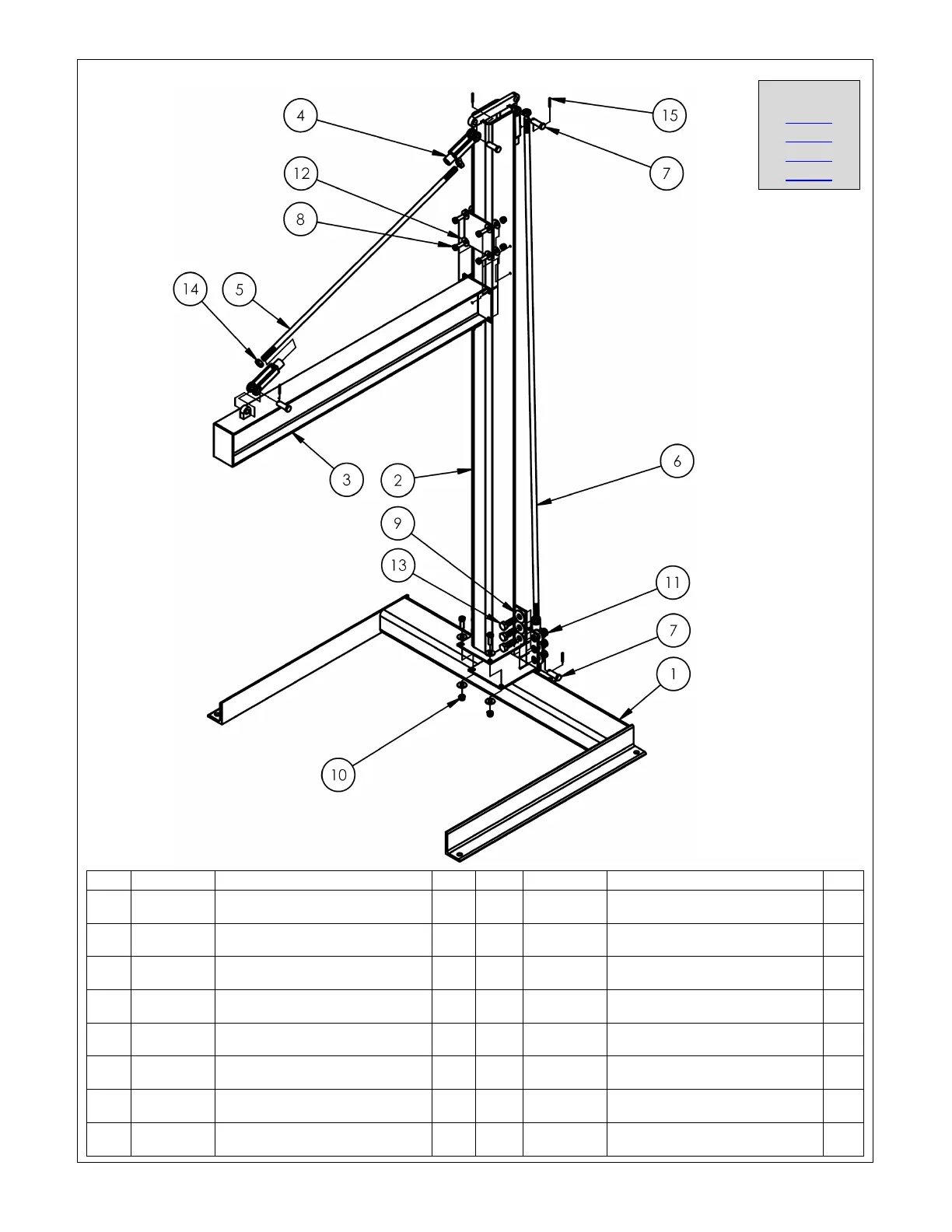

EXPLODED VIEW: CJIB-10 and CJIB-20 (28-006-043)
ITEM
PART NO.
DESCRIPTION
QTY.
ITEM
PART NO.
DESCRIPTION
QTY.
1
28-514-070 WELDMENT, BASE, FRAME 1
9
33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
12
2
28-514-071 WELDMENT, UPRIGHT, FRAME 1
10
37030
1/2"-13 NYLON INSERT LOCK NUT,
GRADE 2
6
3
28-514-069 WELDMENT, JIB I-BEAM FRAME 1
11
37039
NYLOCK NUT Z PLATED, GRADE 2,
Ø3/4 - 10
6
4
28-145-004 ADJUSTABLE YOKE END, LARGE 4
12
33012
FLAT WASHER, LOW CARBON,
ZINC FINISH, 1/2"
12
5
28-014-075 FRAME, I-BEAM TIE ROD, FORMED 1
13
13361
Ø3/4-10 x 2 LG HHCS #5, Z
PLATED
6
6
28-017-009 BAR STIFFENER, TIE ROD, FORMED 1
14
36266
Ø3/4 - 16, HEX JAM NUT, ZINC
PLATED, GRADE A
4
7
28-112-043
PIN, Ø3/4 X 2" LG CLEVIS, Z-
PLATED
4
15
65078
EXTENDED PRONG COTTER PIN,
ZINC FINISH, 1/8" x 1 1/2"
4
8
13209
Hex Cap Screw, Grade 5, Zinc
Plated,1/2-13x1.5
6
Return to
Step 1
Step 2
Step 3
Step 4
