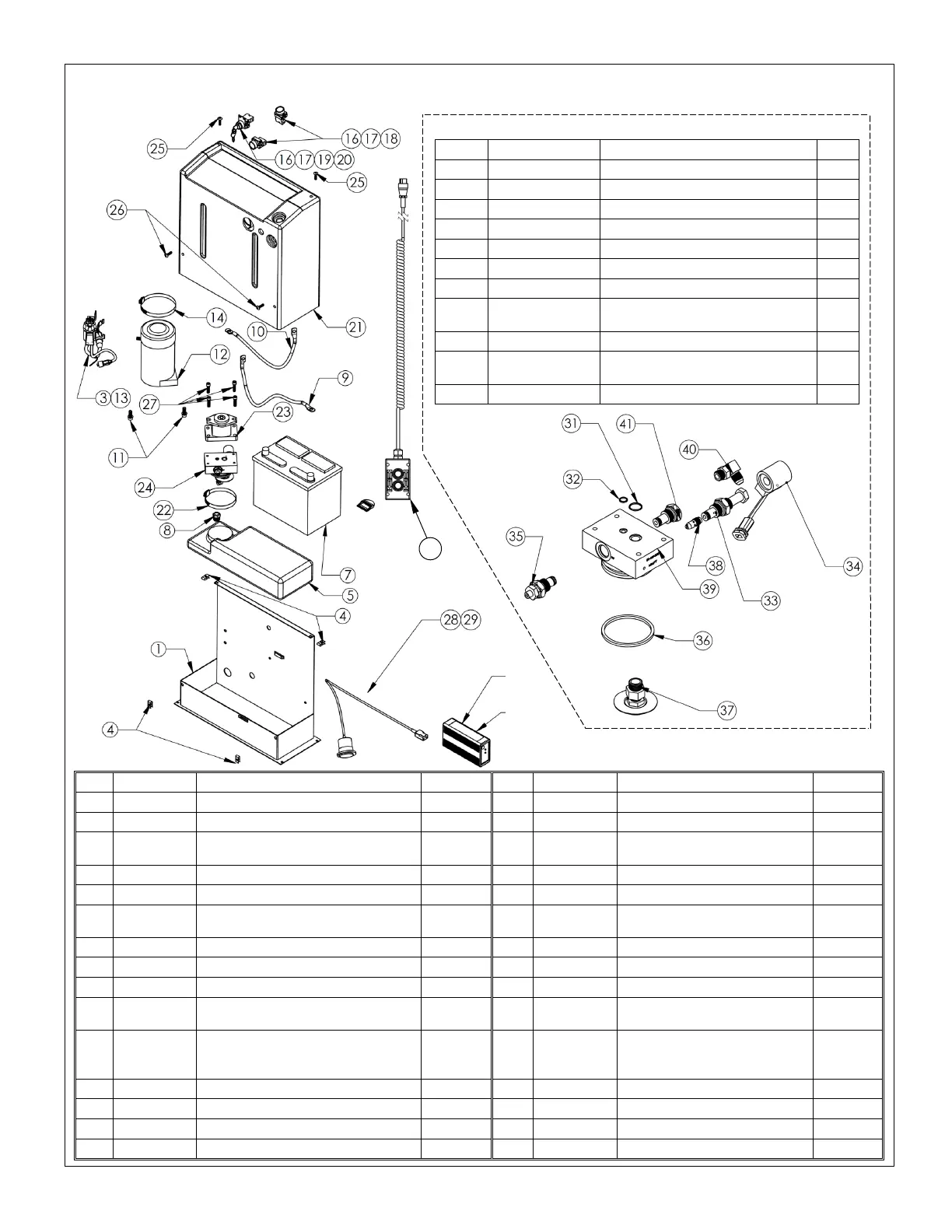

DC Modular Power Unit Exploded View and Bill of Materials
Item
Part no.
Description
Quantity
Item
Part no.
Description
Quantity
1
99-016-933
Base
1
16
Zb2bz009
Contact block base
2
2
21-034-008
Battery charger
1
17
Zb2be101
Contact block, N.O.
2
3 99-533-008 Adaptor, hand control 1 18 Zb2ba2c
Operator, black, flush, non-
illuminated
2
4
37927
Tinnerman clip
4
21
99-024-010
Cover, plastic
1
5
99-023-001
Reservoir
1
22
HS52
Clamp, worm gear hose
1
6 99-034-013 Battery strap 1 23
01-143-906-
002
Pump, hydraulic gear 1
7
99-139-003
Battery
1
*24
01-627-010
Manifold assembly
1
8
01-116-003
Breather, vent, brass fitting
1
25
29201
Screw, machine,
1
/
4
”-20x1
3
/
4
”
2
9
15-533-013
23” black #4 AWG battery cable
1
26
29185
Screw, machine,
1
/
4
”-20x1”
2
10 15-533-014 23” black #4 AWG battery cable 1
27
23255
33687
Bolt, socket head,
5
/
16
”-18x1”
Washer, lock,
5
/
16
”
4
4
11
23305
33688
33008
3
/
8
”–16x1” socket head bolt
3
/
8
” lock washer
3
/
8
” flat washer
2
2
2
28 152400-03 Molded cord, charger connect 1
12
99-135-011
Motor
1
29
21-034-025
Flanged inlet w/ locking ring
1
13
15-022-004
Relay, start solenoid
1
30
3MTST3540
1” hook & loop strip
10”
14
HS64
Clamp, worm gear hose
1
42
99-522-027
Hand control, 2-button
1
15
BG-12V
Gauge, battery, charge indicator
1
Item
Part no.
Description
Qty.
31
568-015-BN70
O-ring, large
1
32
568-011-BN70
O-ring, small
1
33
99-153-058
Valve, solenoid, zero leak
1
34
99-034-010
Coil w/ weathertight plug
1
35
99-153-006
Valve, pressure relief
1
36
568-334-BN70
O-ring, 2
5
/
8
”x3”x
3
/
16
”
1
37
99-031-029
Screen, inlet, 1
3
/
4
” diameter
1
38 99-153-038
Valve, pressure compensated
flow control
1
39
01-127-010
Manifold, LHL standard
1
40 99-116-033
Fitting, #6 JIC - #6 O-ring, 90
deg.
1
41
99-153-011
3
/
8
”–16x1” socket head bolt
1
Manifold assembly (24) exploded parts diagram and bill of materials
42
