Rev. 3/6/2017 CBFC, manual.doc
Copyright 2017 Vestil Manufacturing Co. Page 9 of 13

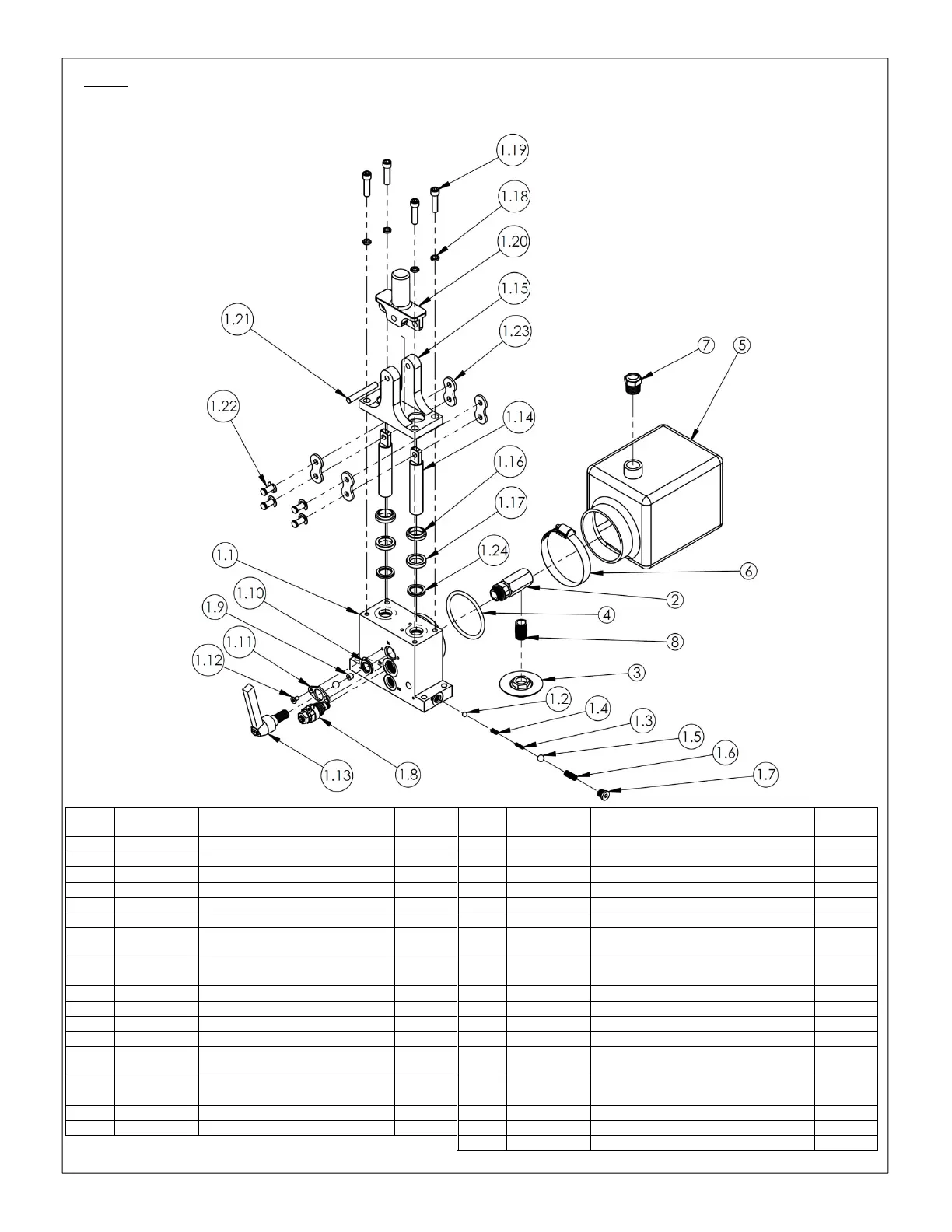

FIG. 4: Manual Hydraulic Pump (99-640-003) Exploded Parts Diagram & Bill of Materials (models produced
before June 1, 2014)
Item
no. Part no. Description Quantity
Item
no. Part no. Description Quantity
1 99-140-003 Hand pump assembly 1 1.16 99-016-045 Bracket, pivot, casting 1
1.1 99-039-003 Pump, manual, hand pump 1 1.17 99-144-003 Wiper, solid profile, piston 2
1.2 99-110-007
1
/
4
in. ball bearing 2 1.18 99-113-005 Spacer, seal 2
1.3 99-146-004 Spring, compression, inlet check 2 1.19 0129169 Lock washer, high collar, zinc-plated 4
1.4 99-146-006 Spring, compression, retainer 2 1.20 93257
5
/
16
in. – 18 x 1
1
/
4
in. SHCS bolt 4
1.5 99-110-006
3
/
8
in. ball bearing 3 1.21 99-040-004 Lever, rocker, casting 1
1.6 99-146-005
Spring, compression, outlet
check
2 1.22 99-112-016 Dowel pin, pivot 1
1.7 99-116-005 MORB hollow hex plug, SAE 4 2 1.23 11484-01103
Pin, SS grooved Clevis w/snap ring,
5
/
16
in. x 18-8
4
1.8 99-153-006 Valve, pressure relief, 210 bar 1 1.24 99-042-001 Chain, side plate, #80 4
1.9 99-111-004 Busing, seat, ball 1 2 99-116-001 Suction fitting, mini manifold 1
1.10 99-144-005 Seal, square profile, release 1 3 99-031-018 Accessories, hydraulic, screen 1
1.11 99-117-008 Retainer, seal 1 4 99-144-007 O-ring, 3in. boss 1
1.12 94198
FHSCS utility grade, 10-24 x
3
/
8
in.
2 5 01-023-008 Reservoir, oil, 0.5 gal. 1
1.13 99-025-023 Handle, release 1 6 99-145-061
Clamp, worm gear hose, 2
13
/
16
in. –
3
3
/
4
in.
1
1.14 99-144-004 Seal, square profile 2 7 01-116-003 Breather,
1
/
2
in. NPT 1
1.15 99-041-004 Plunger/piston, pump 2 8 99-031-033 Close pipe nipple 1
* 99-144-001 Replacement seals (kit) 1
