TABLE OF CONTENTS Rev. 4/13/2023 CBB-3000-37 MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Co. Page 4 of 19
INSTALLING THE BALER
The following items are necessary to install the device:
Fork truck.
Lag bolts, masonry drill, masonry bit, and wrench for lag bolt, grout, and steel shims.
Power circuit with voltage matching the voltage of the unit including fuses and disconnect or circuit
breakers. Minimize voltage drop by using adequate wire size. Refer to NEC 70 for power circuit
specifications.
Only install this baler indoors in a location where it will remain dry at all times. Proper installation
requires at least 13ft (W) x 10ft (D) of free floor space and 14ft (H) of unobstructed overhead clearance
(4m x 3.1m of free floor space and 4.3m of overhead clearance).
Insert the forks of your lift truck into the fork tubes and transport the baler to the installation location.
The back side of the baler should be no closer than 24” (61cm) from the closest permanent structure.
The baler should only be installed on a steel reinforced concrete surface of at least 3,000psi capacity.
Concrete must be at least 4 inches (10.2cm) thick.

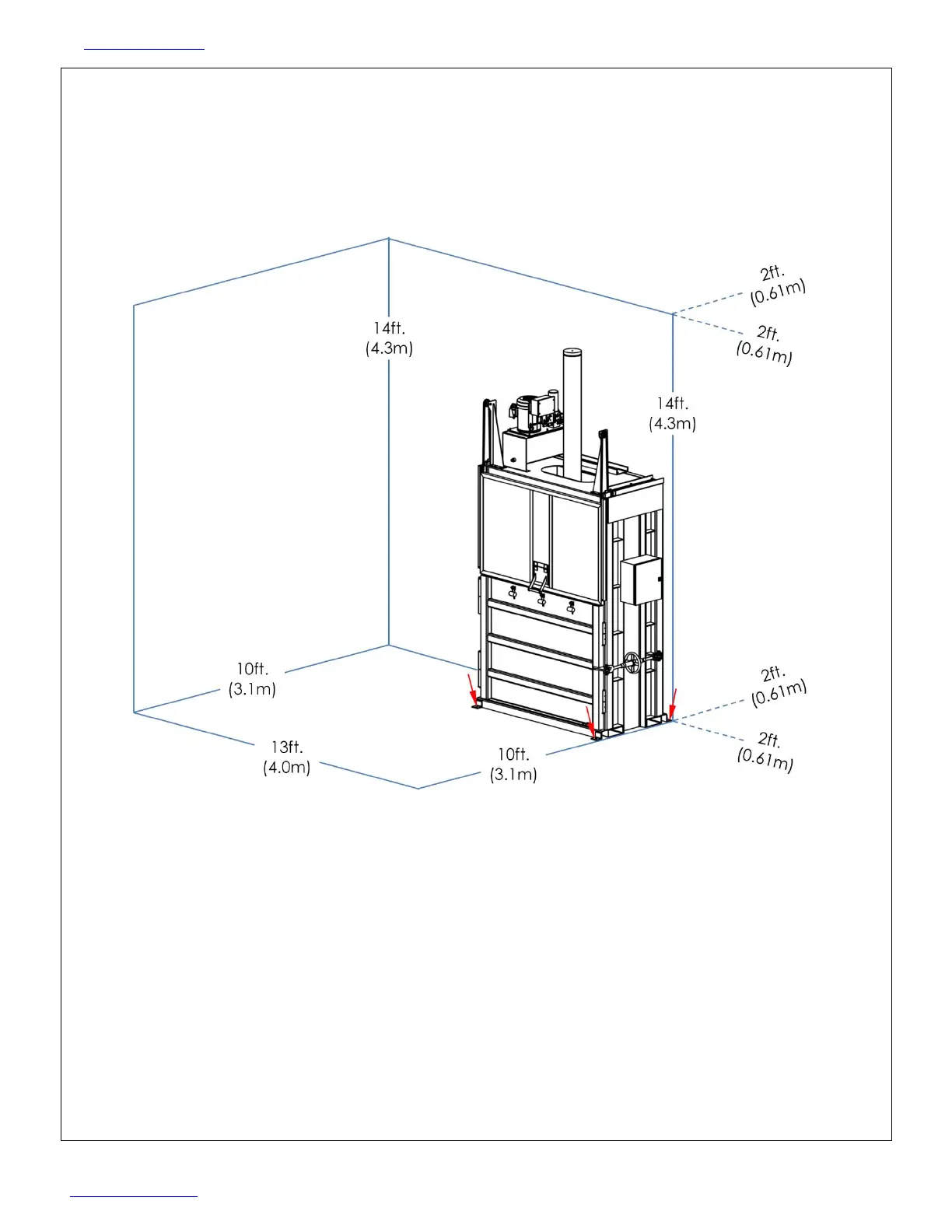

Mark the floor with the locations of the anchor bolt holes in the 4 mounting brackets (1 at each
corner; arrows in diagrams). Bolt holes will accept 9/16” anchor bolts. 9/16” (14.3mm) anchor bolts
should be 6” long (15.2cm). Drill holes at the marked locations according to the instructions provided
with your anchoring hardware. Install anchor bolts through the bolt holes and tighten them against the
mounting brackets (see arrows in diagram).
