TABLE OF CONTENTS Rev. 4/13/2023 CBB-3000-37 MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Co. Page 18 of 19

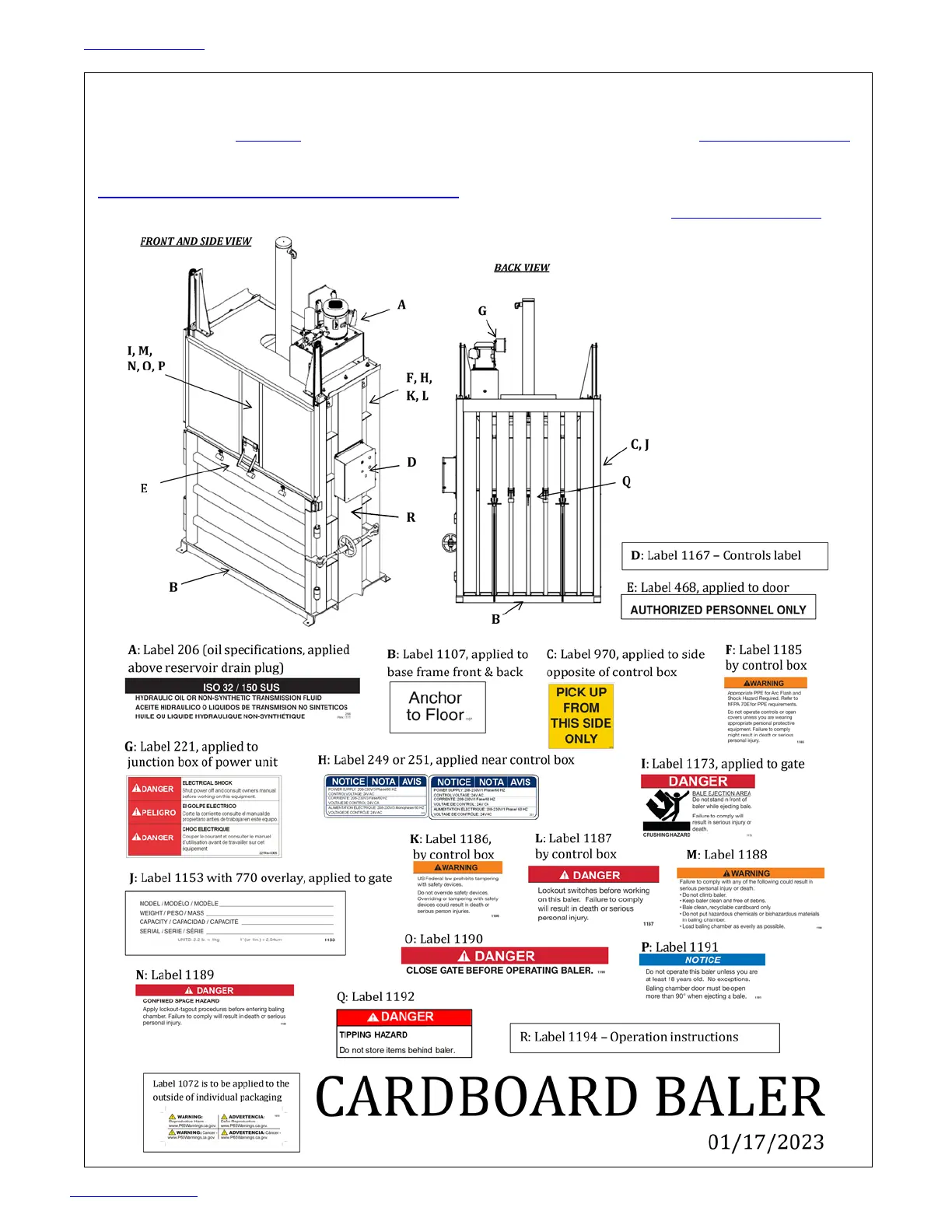

LABELING DIAGRAM
Label content and location are subject to change without notice. Compare the diagram
(below) with your RECORD. If you have any questions about labeling, contact TECHNICAL SERVICE.
Replace all labels that are damaged, missing, or not easily readable (e.g. faded). To order
replacement labels, contact the TECHNICAL SERVICE AND PARTS DEPARTMENT online at
https://www.vestil.com/page-parts-request.php. Alternatively, request replacement parts and/or
service by calling (260) 665-7586 and asking the operator to connect you to TECHNICAL SERVICE.
A
B
B
C
E
F
G
H, O, Q, R
A: Label 206 (Oil specifications;
applied above reservoir drain plug)
B: Label 1107 (Anchor to
floor; applied to base
frame front and back)
C: Label 970 (Pick up from this
side only; applied to side
opposite control box)
D: Label 1122
E: Label 468 (Authorized personnel;
applied to door)
F: Label 1167 (Operation
instructions; applied to
control box)
G: Label 221 (Electric shock;
applied to junction box of
power unit)
H: Label 249 or 251 (Operating voltage
and phase; applied near control box)
I: Label 1173 (Bale Ejection
Area - Crushing hazard;
applied to gate)
D, I, J, K, L, M, N
J: Label 1153 (Data label;
applied to gate)
K: Confined Space Label
(applied to gate)
L: Close Gate Label
(applied to gate)
M: Minimum Age Label
(applied to gate)
N: Injury Risks Label
(applied to gate)
O: No Tampering
Label (applied by
control box)
P: Tipping Hazard Label
(on back of baler)
P
Q: Lockout Label (applied
near control box)
R: PPE Label (applied
near control box)
