TABLE OF CONTENTS Rev. 2/11/2021 CART-LP, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 5 of 14

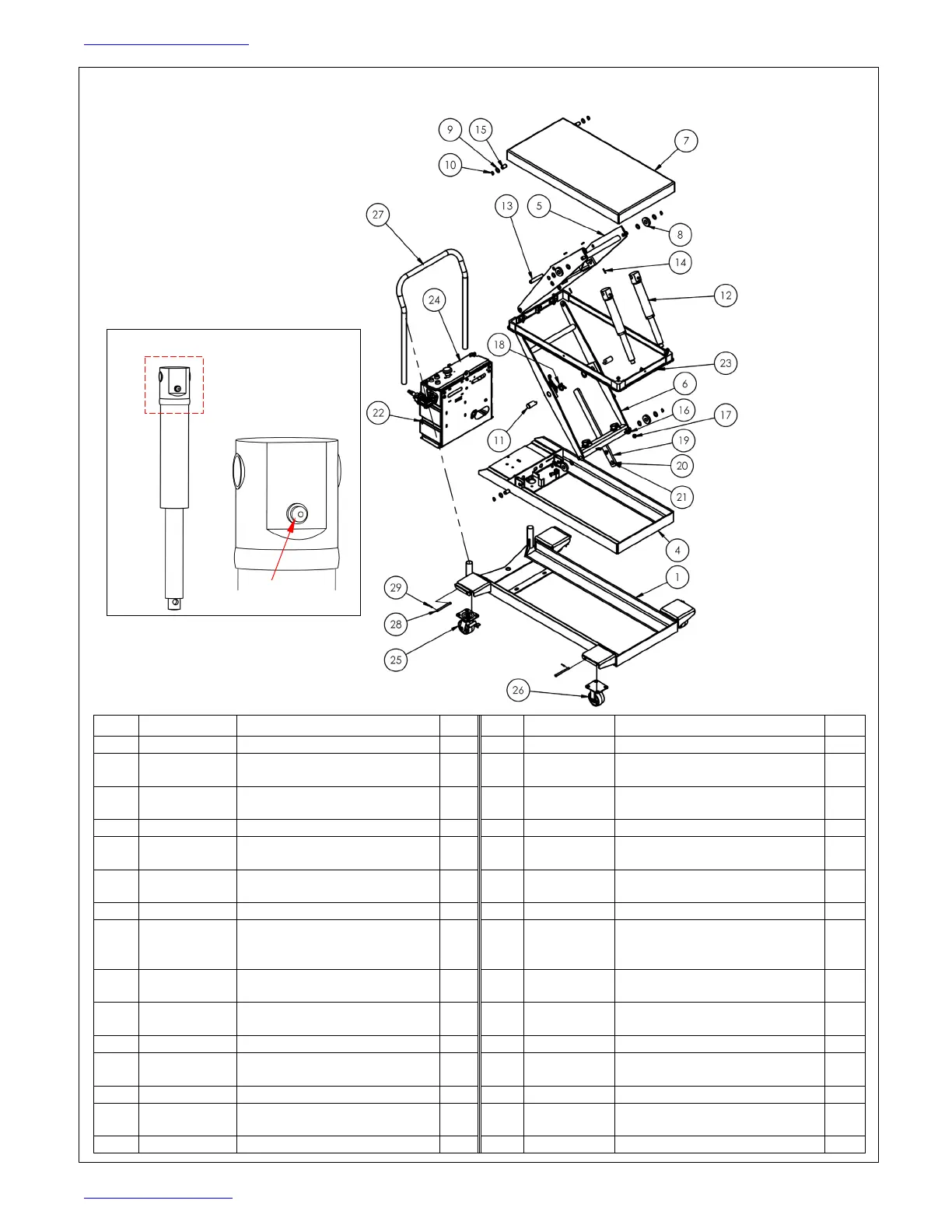

EXPLODED VIEW: CART-LP-2000-2040-DC
01-006-405
CYLINDER (12)
ITEM
PART NO.
DESCRIPTION
QTY.
ITEM
PART NO.
DESCRIPTION
QTY.
1
01-514-183
WELDMENT, FRAME
1
16
01-118-002
BOLT, CYLINDER RETAINING
2
2 01-001-365
FINAL ASSEMBLY W/O
SHIPPING
1 17 36209 1/2 - 13 HEX JAM NUT PLAIN 2
3 01-002-063
FINAL ASSEMBLY W/O POWER
UNIT
1 18 33456
MACHINERY BUSHING, PLAIN
FINISH, Ø1 1/8" X 10 GA
2
4
01-514-076
WELDMENT, FRAME
1
19
24-037-001
MAIN PROP, EHLT
1
5 01-510-006
WELDMENT, LEG SCISSOR,
INNER
1 20 33444
MACHINE BUSHING, Ø 1 X 18
GA.
1
6 01-510-007
WELDMENT, LEG, SCISSOR,
OUTER
1 21 20-117-003
EXTERNAL RETAINING RING, 1"
DIA SHAFT
1
7
01-513-003
WELDMENT, DECK, 20" X 40"
1
22
31802
SCREW, SELF-TAPPING SCREW
2
8 01-527-002 ROLLER, ASSY Ø2 1/4" X 1/2" W 4 23 01-515-030
SUB-ASSEMBLY, TOE GUARD, 20"
X 40", INCLUDES
HARDWARE & SWITCHES
1
9 01-113-001 SPACER/SHIM (MCH BUSHING) 16 24 99-160-097
MODULAR POWER UNIT, GEN II
(DISPLAY ONLY)
1
10 38-117-001
RETAINER RING, EXTERNAL FOR
Ø3/4 SHAFT
12 25 16-132-259 CASTER, SWIVEL W/ BRAKE, 4X2 2
11
01-112-008
PIN, SCISSOR PIVOT
2
26
16-132-260
CASTER, RIGID, 4X2
2
12
99-021-915-
001
CYLINDER, HYDRAULIC, Ø1
1/2" x 7", RAM STYLE
2 27 99-025-014 HANDLE, PUSH, 22" C/C 1
13
01-112-010
PIN, CYLINDER PIVOT
2
28
99-112-006
PIN, CLEVIS
4
14 64134 SPRING PIN 4 29 65076
Ø1/8" X 1" COTTER PIN, Z-
PLATED
4
15
01-112-009
PIN, HINGE PIVOT
4
BLEEDER
SCREW
