TABLE OF CONTENTS Rev. 6/8/2022 BTC-CART, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp Page 6 of 11

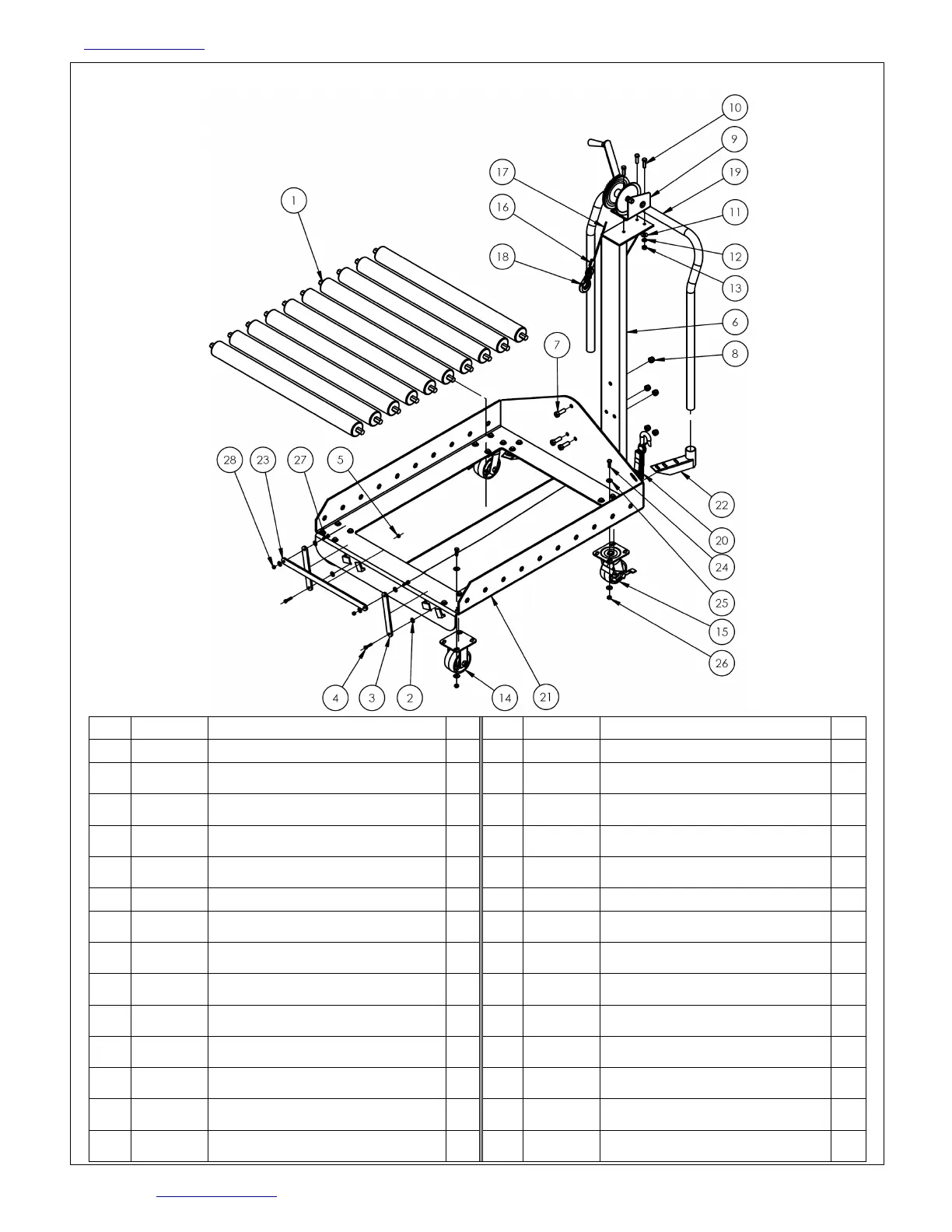

BTC-WINCH-CART EXPLODED VIEW AND BILL OF MATERIALS (33-006-175-001)
Item Part no. Description Qty.
Item Part no. Description Qty.
1 33-027-005 CONVEYOR ROLLER, Ø 2 1/2" X 31" 10 15 16-132-259 CASTER, SWIVEL W/ BRAKE, 4X2 2
2 33004 FLAT WASHER, USS, ZINC PLATED, Ø1/4" 6 16 21-145-012
SPECIALTY HARDWARE, CABLE
ANCHOR
1
3 33-037-006 LOCK, BATTERY HOLDER 2 17 42-145-004
SPECIALTY HARDWARE, Ø3/16 AIR
CRAFT CABLE, 180" LONG
1
4 11007
Ø 1/4-20 UNC x 1 1/4 LG HEX BOLT,
GRADE A
2 18 08-145-045 CLASP HOOK, 3/4" HOOK OPENING 1
5 37018
NYLON LOCK NUT,GRADE 2, ZINC
FINISH,1/4"-20
2 19 99-025-014 HANDLE, PUSH, 22" C/C 1
6 33-514-131 WELDMENT, WINCH MOUNT 1 20 08-145-028 FORK ATTACHMENT RESTRAINT STRAP 1
7 13209
Hex Cap Screw, Grade 5, Zinc
Plated,1/2-13x1.5
5 21 33-514-255 WELDMENT, FRAME, BASE PAN 1
8 37030
1/2"-13 NYLON INSERT LOCK NUT,
GRADE 2
5 22 16-016-063 BRACKET, HANDLE 2
9
21-042-002-
001
HAND WINCH, ONE PIECE STRAIGHT
HANDLE GRIP
1 23 33-016-148 BRACKET, FRONT STOP 1
10 11107
HEX BOLT, GRADE A, ZINC FINISH, 3/8"-
16 x 1-1/4"
3 24 11055
HEX BOLT, GRADE A, ZINC PLATED,
5/16-18 X 1
21
11 33008
FLAT WASHER, LOW CARBON, USS,
ZINC PLATED, 3/8"
3 25 33006
FLAT WASHER,ZINC PLATED,USS,
Ø5/16"
41
12 33622
SPLIT LOCK WASHER, CARBON STEEL,
MEDIUM ZINC FINISH, 3/8"
3 26 36104
HEX NUT, GRADE A, ZINC PLATED,
5/16-18
21
13 36106
HEX NUT, GRADE A, ZINC PLATED, 3/8-
16
3 27 11005
BOLT, GRADE A, Ø1/4-20 UNC x 1 LG,
HHCS #2 Z-PLATED
2
14 16-132-260 CASTER, RIGID, 4X2 2 28 36302
NUT, HEX NUT Z-PLATED, Ø 1/4 - 20,
#5, GRADE 5
2
