TABLE OF CONTENTS Rev. 6/8/2022 BTC-CART, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp Page 5 of 11
NATIONAL STANDARDS
US (federal) OSHA Rule 1910.178 (29 CFR 1910.178; the “Rule”) classifies this device as a front end
attachment whenever it is mounted on a lift truck. The Rule incorporates American National Standard
ANSI/ITSDF B56.1 (the “Standard”). The Standard is published by the Industrial Truck Standards
Development Foundation on its website (www.itsdf.org
) where it is freely downloadable at
http://www.itsdf.org/cue/b56-standards.html. Before putting this device into service, you must acquire a
copy of the Standard. Apply all relevant parts of Part II: For the User. If instructions provided in this
manual conflict with the Standard, then you should apply the instructions in the Standard. Vestil requests
that you immediately share any conflicts with its
TECHNICAL SERVICE personnel. Contact information for
the TECHNICAL SERVICE department appears on the cover page of this manual.

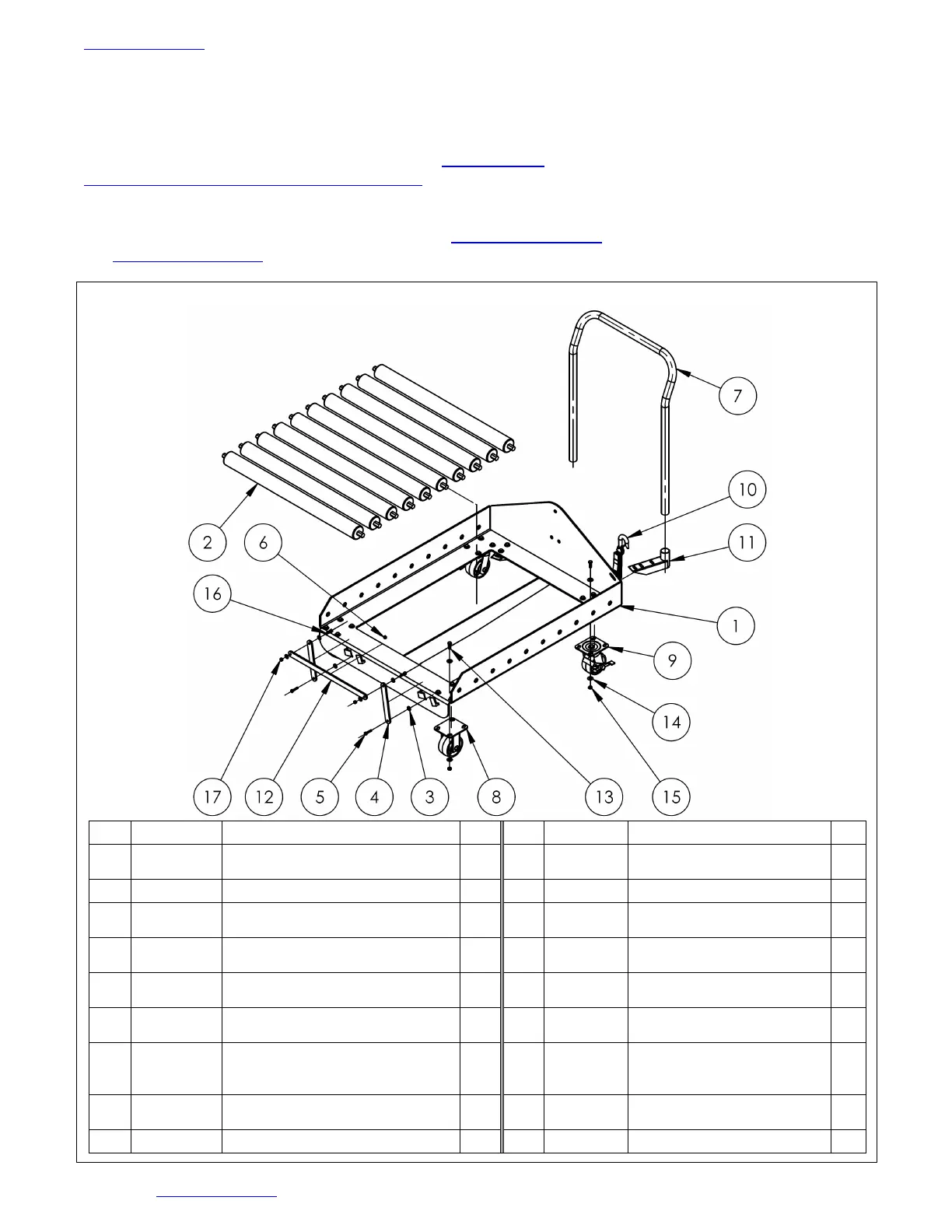

BTC-CART EXPLODED VIEW AND BILL OF MATERIALS (33-006-174)
Item Part no. Description Qty.
Item Part no. Description Qty.
1 33-514-255 WELDMENT, FRAME, BASE PAN 1 10 08-145-028
FORK ATTACHMENT
RESTRAINT STRAP
1
2 33-027-005 CONVEYOR ROLLER, Ø 2 1/2" X 31"
10 11 16-016-063 BRACKET, HANDLE 2
3 33004
FLAT WASHER, USS, ZINC PLATED,
Ø1/4"
6 12 33-016-148
BRACKET, FRONT STOP
(BATTERY RETAINING BRAKET)
1
4 33-037-006 LOCK, BATTERY HOLDER 2 13 11055
HEX BOLT, GRADE A, ZINC
PLATED, 5/16-18 X 1
20
5 11007
Ø 1/4-20 UNC x 1 1/4 LG HEX
BOLT, GRADE A
2 14 33006
FLAT WASHER,ZINC
PLATED,USS, Ø5/16"
40
6 37018
NYLON LOCK NUT,GRADE 2, ZINC
FINISH,1/4"-20
2 15 36104
HEX NUT, GRADE A, ZINC
PLATED, 5/16-18
20
7 99-025-014 HANDLE, PUSH, 22" C/C 1 16 11005
BOLT, GRADE A, Ø1/4-20
UNC x 1 LG, HHCS #2 Z-
PLATED
2
8 16-132-260 CASTER, RIGID, 4X2 2 17 36302
NUT, HEX NUT Z-PLATED, Ø 1/4
- 20, #5, GRADE 5
2
9 16-132-259 CASTER, SWIVEL W/ BRAKE, 4X2 2
